Kyoritsu 6305 Power Meter
Short Description:
Kyoritsu Power Meter 6305 key features:
• Comprehensive real-time monitoring, recording, and analysis of single and 3-phase systems
• Voltage, Current, Power Factor, and Frequency measurements
• Power analysis (Active, Apparent, and Reactive power)
• Energy analysis (Active, Apparent, and Reactive power)
• Active power accuracy: ±0.3%rdg±0.2%f.s.
• Automatic wiring check function to prevent incorrect connections
• Large memory capability (2GB) using built-in SD card interface
• Real-time & remote measurements using an Android application
• synchronous measurements between two units of KEW 6305
• Wide selection of clamp sensors allows measurements from 0.1A to 3000A
• The instrument automatically recognizes what kind of clamp sensor is connected to it
• Windows software for data analysis and setting via USB port or Bluetooth
Product purchase
Original price was: AED 4,930.AED 4,075Current price is: AED 4,075. (excl.VAT)
13
People watching this product now!
Terms of sending goods ›

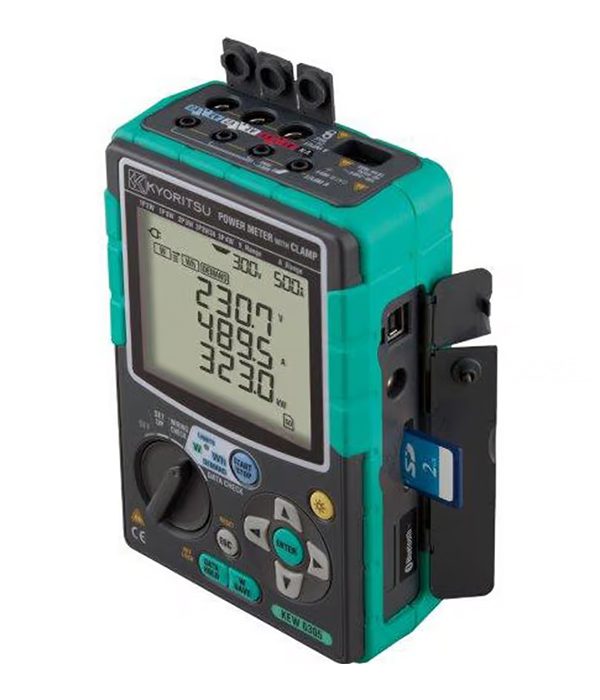

Kyoritsu Power Meter 6305
The Kyoritsu 6305 Power Meter Digital AC Power Analyzer is designed for its easy operation. Its front panel rotary switch is rotated from the OFF position to the “SET UP” position to allow the user to configure the Kyoritsu Power Meter 6305 settings.
The second position of the rotary dial is the “WIRING CHECK” position so the user can ensure the wiring connections are correct. This checks the current sensors and voltage leads which display a “GOOD” or “ERROR” in an easy-to-understand format on the LCD screen.
The third position of the rotary switch is the “W/Wh/DEMAND” position that allows the meter to perform instantaneous measurements or to be placed into record mode where a single press of the “START/STOP” button starts or stops measurement recording.
Kyoritsu Power Meter 6305 key features:
• Comprehensive real-time monitoring, recording, and analysis of single and 3-phase systems
• Voltage, Current, Power Factor, and Frequency measurements
• Power analysis (Active, Apparent, and Reactive power)
• Energy analysis (Active, Apparent, and Reactive power)
• Active power accuracy: ±0.3%rdg±0.2%f.s.
• Automatic wiring check function to prevent incorrect connections
• Large memory capability (2GB) using built-in SD card interface
• Real-time & remote measurements using an Android application
• synchronous measurements between two units of KEW 6305
• Wide selection of clamp sensors allows measurements from 0.1A to 3000A
• The instrument automatically recognizes what kind of clamp sensor is connected to it
• Windows software for data analysis and setting via USB port or Bluetooth
Frequency Asked Questions
Where is Kyoritsu made?
Kyoritsu and the factory at Navavakorn Industrial Park, Klonganung, Pathumthani, Thailand were completed in December. Construction of the headquarters building has been completed.
Is Kyoritsu a good brand?
Kyoritsu is a Japanese manufacturer, famous for its highly reliable 6201 and 6201A instrumentation testers. Although they have a limited number of equipment testers, they have long been known for their high-quality test equipment and have a wider range of specialized instruments.
more information
to buy Kyoritsu power meter kew 6305 click on add to cart button. for kew 6305 manual click on manual tab also for kyoritsu kew 6305 price and kyoritsu power logger visit our website.
Other Kyoritsu products are Kyoritsu KEW 5515, and KEW 5204. For more specific data about this product visit the Testo website.
Kyoritsu Power Meter 6305 specifications what’s included with:
- Wiring Connections: 1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W
- Measurements: Voltage, Current, Frequency, Active power
- Parameters: Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Power factor (cos θ), Neutral current
- Voltage Range: 150.0/300.0/600.0V
- Voltage Accuracy: ±0.2%rdg ±0.2%f.s. (sine wave, 45 to 65Hz）
- Current Range: 10.00/50.00/100.0/250.0/500.0A/Auto
- Current Accuracy: ±0.2%rdg ±0.2%f.s.+ Accuracy of Clamp sensor (sine wave, 45 to 65Hz)
- Frequency Meter Range: 40.0 to 70.0Hz
- Frequency Meter Accuracy: ±3dgt
- Accuracy Precondition: PF=1, Sine wave, 45 to 65Hz, 23°C±5°C
Data Sheet
Manual
specifications
| Specification | Details |
|---|---|
| Wiring connections | 1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W |
| Measurements | Voltage, Current, Frequency, Active power |
| Parameters | Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Power factor (cos θ), Neutral current |
| Voltage range [RMS] | 150.0 / 300.0 / 600.0V |
| Voltage accuracy | ±0.2%rdg±0.2%f.s. (sine wave, 45 – 65Hz) |
| Current range [RMS] | 8128/8135 (50A type): 1.000 / 5.000 / 10.00 / 25.00 / 50.00A / auto 8127 (100A type): 2.000 / 10.00 / 20.00 / 50.00 / 100.0A / auto 8126 (200A type): 4.000 / 20.00 / 40.00 / 100.0 / 200.0A / auto 8125 (500A type): 10.00 / 50.00 / 100.0 / 250.0 / 500.0A / auto 8124/8130 (1000A type): 50.00 / 100.0 / 200.0 / 500.0 / 1000A / auto 8133 (3000A type): 60.00 / 300.0 / 600.0 / 1500 / 3000A / auto |
| Current accuracy | ±0.2%rdg±0.2%f.s. + Accuracy of Clamp sensor (sine wave, 45 – 65Hz) +1%f.s. at the lowest range |
| Display range | 5 – 130% of each range (Voltage) 1 – 130% of each range (Current) |
| Crest factor | Voltage: 2.5 or less, Current: 3.0 or less (max. 1.4Vpeak) |
| Effect of power factor | Active power: ±1.0%rdg cos θ=±0.5 (PF=1) |
| Frequency meter range | 40.0 – 70.0Hz |
| Frequency meter accuracy | ±3dgt |
| Accuracy precondition | PF=1, Sine wave, 45 – 65Hz, 23ºC±5ºC |
| Display update period | 1 second |
| Applicable standards | IEC 61010-1 CAT Ⅲ 600V |
| Operating temperature and humidity range | 0 – +50ºC, less than 85%RH (without condensation) |
| Storage temperature and humidity range | -20 – +60ºC, less than 85%RH (without condensation) |
| Power supply (AC Line) | AC100 – 240V±10% (45 – 65Hz) |
| Power supply (DC battery) | LR6 or Ni-MH (HR-15-51) ×6 (Battery charger not included), Battery life approx. 15h (LR6) |
| Power consumption | 10VA (max.) |
| Communication interface | USB, Bluetooth®5.0 |
| PC card interface | SD card (2GB) |
| Dimension | 175(L)×120(W)×65(D) mm |
| Weight | Approx. 800g (including batteries) |
