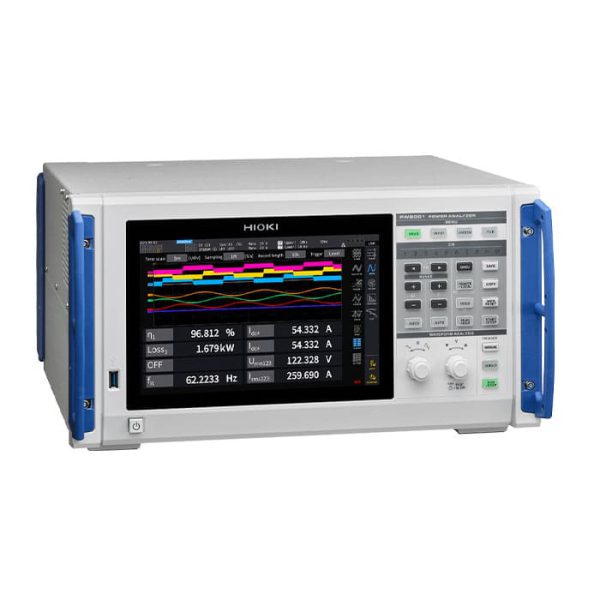

Hioki Pw8001 Power Analyzer

Hioki Power Analyzer Pw8001

The PW8001 sets a new benchmark for complete power analysis solutions with Hioki being the only manufacturer that offers industry-leading power analyzers and a wide portfolio of high-accuracy current sensors both developed and manufactured by Hioki. This enables to align their performance and results in more accurate and stable measurements from DC to high frequencies and low power factor measurements thanks to functions like the automatic phase shift correction.

Hioki PW8001 Specifications:

Measurement lines:1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire

Type of input unit:U7001 2.5 MS/s INPUT UNIT,U7005 15 MS/s INPUT UNIT

No. of PW8001 input units: Max. 8 units (mix and match)

Data update rate:10 ms, 50 ms, 200 ms

Accuracy for power (U7001):50/60 Hz: 0.02% of reading + 0.05% of range, DC: 0.02% of reading + 0.05% of range,50 kHz: 0.4% of reading + 0.1% of range

Accuracy for power (U7005):50/60 Hz: 0.01% of reading + 0.02% of range,DC: 0.02% + 0.03% of reading of range,50 kHz: 0.15% of reading + 0.05% of range

External interface: USB flash drive, LAN, GP-IB, RS-232C, external control, optical link

Power supply:100 V to 240 V AC, 50/60 Hz, 230 VA

Dimensions and mass: Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)

Accessories: – Power cord ×1, Instruction Manual ×1,GENNECT One (PC applications) CD ×1, D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
