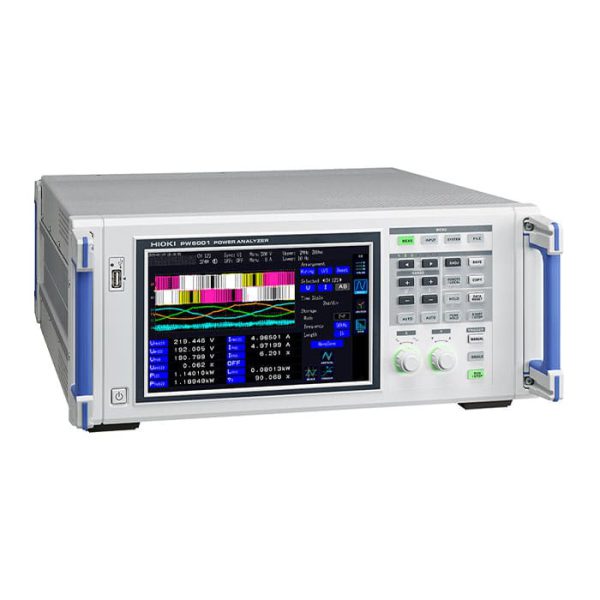

Hioki Pw6001 Power Analyzer
Short Description:
HIOKI PW6001 Key Features :
- Exclusive current sensor phase shift function lets you maintain accuracy even in high frequency, low power factor applications
- Basic accuracy of ±0.02% (*2) for power measurement
- High noise resistance and stability (80 dB/100 kHz CMRR, ±0.01%/°C temperature characteristics)
- Accurate measurement even when the load is characterized by large fluctuations; TrueHD 18-bit resolution
- 10 ms data refresh while maintaining maximum accuracy (*3)
- DC accuracy of ±0.07%, which is key for stable, accurate efficiency measurement
- The wide frequency bandwidth of DC, or 0.1 Hz to 2 MHz
- Achieve true frequency analysis with high-speed 5MS/s sampling (18-bit)
- Synchronize 2 units for up to 12 channels (*4) in real-time
- Special triggers to enable waveform analysis and motor analysis without the need for an oscilloscope
- Wideband harmonic analysis up to the 100th order with a 1.5 MHz band
Product purchase
Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868
14
People watching this product now!
Terms of sending goods ›
Hioki Power Analyzer Pw6001
Hioki benchtop power meters and power analyzers are best-in-class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PW6001 is Hioki’s flagship power analyzer, featuring high accuracy, wide band, and high stability for measuring electrical power from DC to inverter frequencies, providing a maximum of 12 channels (*1) to support single- and three-phase inverter motor system measurements and next-generation devices such as silicon-carbide (SiC) inverters.
Hioki PW6001 Specifications:
- Measurement line type:Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire
- Basic accuracy:Voltage: ±0.02 % rdg. ±0.02 % f.s.Current: ±0.02 % rdg. ±0.02 % f.s. + current sensor accuracy, Active power: ±0.02 % rdg. ±0.03 % f.s. + Current sensor accuracy
- Frequency band: DC, 0.1 Hz to 2 MHz
- External interfaces: USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control , Synchronization control
- Power supply: 100 to 240 V AC, 50/60 Hz, 200 VA max
- Dimensions and mass:430 mm (16.93 in)W × 177 mm (6.97 in)H × 450 mm (17.72 in)D, 14 kg (49.4 oz) (PW6001-16)
- Included accessories:Instruction Manual ×1, Power cord ×1, D-sub connector × 1 (PW6001-1x only)
datasheet
–
