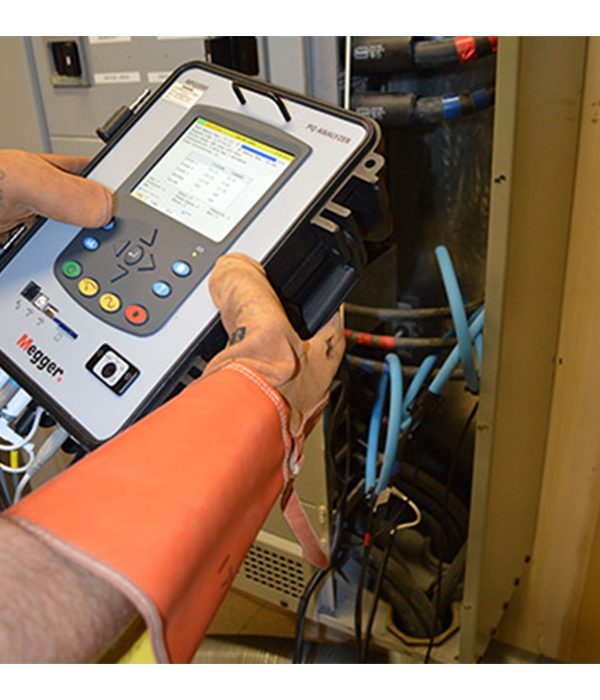

Megger MPQ2000 Portable Power Quality Analyzer
Brand:
Megger
SKU:
3725
The Megger MPQ2000 is a portable IEC 61000-4-30 Ed.3 Class A power quality analyzer with four voltage and five current channels, capturing harmonics, flicker, 1 µs transients and voltage events in a rugged IP54 unit.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Megger MPQ2000 Portable Power Quality Analyzer — Advanced Class A Diagnostics
The Megger MPQ2000 is a portable, field-ready power quality analyzer that measures and records the full range of power-quality parameters to IEC 61000-4-30 Edition 3 Class A. With four isolated voltage channels and five current channels, fast 1 MHz sampling and microsecond transient capture, it is built for detailed power-quality surveys and troubleshooting across utility, industrial and commercial systems.
Key Features
- IEC 61000-4-30 Ed.3 Class A — authoritative class-A measurement for compliance surveys.
- 4 V + 5 A channels — four isolated voltage (to 1000 V RMS) and five current channels (to 6000 A) for full three-phase-plus analysis.
- Comprehensive parameters — harmonics to the 50th, inter-harmonics, THD, IEC flicker, unbalance (IEC & ANSI) and phase angles.
- Fast event capture — transients down to 1 µs plus voltage/current sags and swells.
- Fast sampling — 16-bit ADC on 8 channels with up to 1 MHz sampling.
- Colour display & storage — backlit 640 × 480 colour VGA with SD-card storage (to 32 GB).
- Connectivity — USB, Ethernet and SD card.
- Rugged & portable — IP54 (closed), NiMH battery (~8 h), 305 × 266 × 143 mm, 2.27 kg.
Applications
The MPQ2000 is ideal for detailed power-quality surveys, compliance monitoring and troubleshooting on single- and three-phase systems — capturing harmonics, flicker, transients and voltage events for utilities, industrial plants and commercial installations.
What’s in the Box
- Megger MPQ2000 power quality analyzer
- Voltage leads and fused adapters
- SD card, USB cable and Ethernet cable
- Universal power cords and soft carry bag
Why Buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Contact us on WhatsApp for the latest price and availability.
Download the Megger MPQ2000 datasheet (PDF).
Videos
MPQ 2000 Configuration Verification
MPQ 2000 Data Analysis
MPQ 2000 Basic Setup
specifications
specifications
| Technical Specifications | |
|---|---|
| Input Power Options | Phase A 90-600V 50Hz/60Hz or 105-600V DC Aux Input Power: 120/240 V, 50/60 Hz Water-tight cord for US, UK, and EU plugs Supports live connect/disconnect |
| Battery | Type: NiMH battery pack (field replaceable) Discharge Time: 8 hours Recharge Time: 3 hours |
| Data Storage | External SD card (up to 32 GB) |
| Communication | Ethernet communications Wireless communications with off-the-shelf bridge USB stick – transfer data files, setup configurations, perform firmware upgrades |
| SD Card Features | Automatically writes data to SD card No manual transfer required Transfer setup configurations to and from SD card No tool needed to access the SD card |
| Environmental Conditions | Operating Temperature: -20° C to 50° C (-4° F to 122° F) Storage Temperature: -30° C to 60° C (-22° F to +140° F) Relative Humidity: 0-95% non-condensing Altitude Specifications:
|
