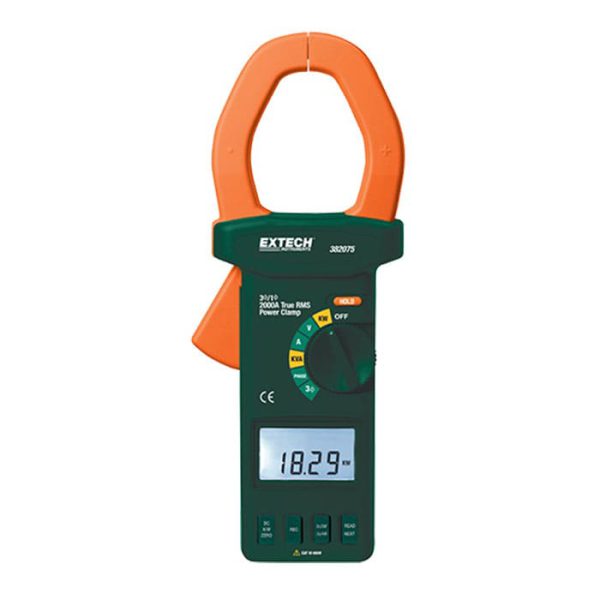

EXTECH 382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer
Extech 382075 is a 3-Phase TRMS Clamp-on power analyzer which can be used on 3- and 4-wire balanced or unbalanced loads. It can measure reactive and apparent power to 1200kW. Additional measurements include: watts, voltage, current, frequency, power factor and phase angle. It can display lead, lag current and voltage phase shift in degrees and store/recall the last 4 readings. Features include: DC current auto zero, data hold, min/max, and relative mode. Comes complete with test leads, carrying case, and 9 Volt battery.
EXTECH 382075 2000A True RMS AC/DC 3-Phase Clamp-on Power Analyzer specifications
- True Power (W) 1200kW 0.01/0.1kW ±2%+ 5d
- Reactive (KVAR) Power 1200KVAR 0.01/0.1KVAR ±2%+ 5d (PF<0.91)
- Apparent (KVA) Power 1200KVA 0.01/0.1KVA ±2%+ 5d
- Power Factor (PF) 0.2 to 1 0.01 PF=W/(VxA)
- Phase Angle (f) -90° to +90° 0.1° ±0.5°
- AC/DC Current 2000A 0.1/1A ±2%+ 5d
- AC/DC Voltage 600VAC/800VDC 0.1/1V ±2%+ 5d
- Frequency 40 to 400Hz 0.1Hz ±1%+ 2d
Related Product
You also can visit the Extech 380976-K as a related product of this device.
