Hioki CM4375-50 AC/DC CLAMP METER
Short Description:
Hioki AC/DC CLAMP METER CM4375-50 Key Features:
- CAT IV 600 V, CAT III 1000 V
- Easily get into tight spaces between cables thanks to the thin sensor structure
- Measure DC voltages of up to 2000 V for open voltage inspections of solar panels
- Automatic AC/DC function helps boost work efficiency, Measuring up to 1000 A
- Simultaneously measure inrush current in RMS and crest values
- Harmonic analysis from 1st to 30th order
Product purchase
Original price was: AED 2,200.AED 2,100Current price is: AED 2,100. (excl.VAT)
20
People watching this product now!
Terms of sending goods ›
Hioki AC/DC CLAMP METER CM4375-50

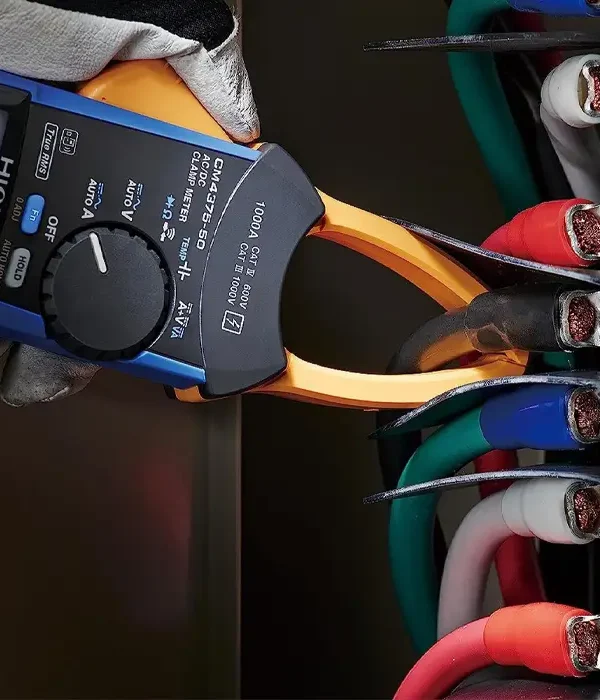

Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4375-50 is a 1000 A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter.
The broad IP54 dustproof and waterproof enclosure enables professionals to work quickly in challenging situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V is ideal for the clamp maintenance inspections of electrical and solar power equipment.
Hioki AC/DC CLAMP METER CM4375-50 Key Features:
- CAT IV 600 V, CAT III 1000 V
- Easily get into tight spaces between cables thanks to the thin sensor structure
- Measure DC voltages of up to 2000 V for open voltage inspections of solar panels
- Automatic AC/DC function helps boost work efficiency, Measuring up to 1000 A
- Simultaneously measure inrush current in RMS and crest values
- Harmonic analysis from 1st to 30th order
Hioki AC/DC CLAMP METER CM4375-50 Specifications:
- DC Current: 1000 A/accuracy: ±1.3% rdg
- AC Current: 1000 A/accuracy 45-66 Hz: ±1.8% rdg
- DC+AC Current: 1000 A/accuracy DC, 45-66 Hz: ±1.3% rdg
- DC Voltage: 600.0 ｍV to 1000 V
- AC Voltage:6.000 V to 1000 V / accuracy 45 – 66 Hz: ±0.9% rdg
- DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45-66 Hz: ±1.0% rdg
- Resistance: 600.0 Ω to 6.000 MΩ / accuracy: ±0.7% rdg
- Electrostatic capacity: 1.000 μF to 1000 μF / accuracy: ±1.9% rdg
- Frequency: 9.999 Hz to 999.9 Hz / accuracy: ±0.1% rdg
- Temperature (K): -40.0°C to 400.0°C
- Dimensions and mass: 65 mm (2.56 in) W × 242 mm (9.53 in) H × 35 mm (1.38 in) D mm, 350 g
Similar Products
As a related product to the CM4375-50, the CM4373-50 offers a similar level of precision and innovation, providing accurate and reliable measurements for your electrical and power systems.
datasheet
Specifications
| Category | Specification | Detail |
|---|---|---|
| Current Range | DC Current Range | 1000 A, Max. display 999.9 A, Basic accuracy: ±1.3% rdg. ±0.3 A (at 30.1 A – 999.9 A) |
| AC Current Range | 1000 A, Max. display 999.9 A, 10 Hz to 1 kHz, True RMS, Basic accuracy 45-66 Hz: ±1.8% rdg. ±0.3 A (at 30.1 A – 900.0 A) | |
| DC+AC Current Range | 1000 A (DC, 10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 30.1 A – 900.0 A) | |

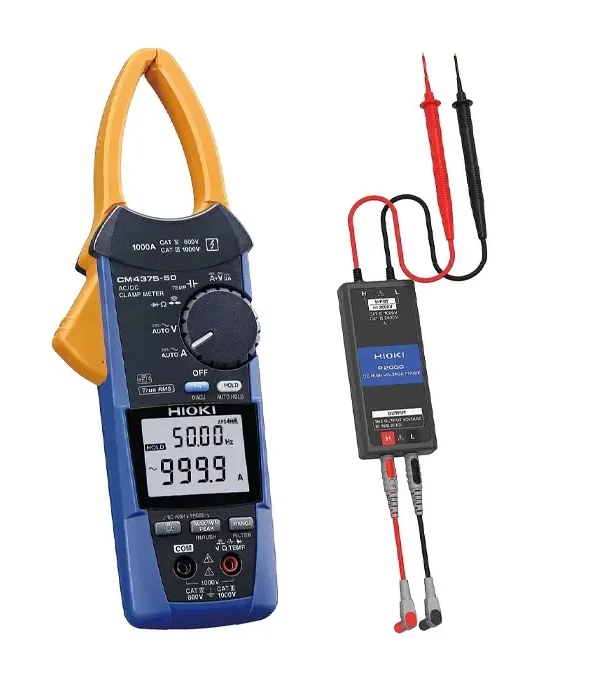

| Voltage Range | DC Voltage Range | 600.0 mV to 1000 V, when using P2000: 600.0 V to 2000 V |
| AC Voltage Range | 6.000 V to 1000 V, 4 ranges, 15 Hz to 1 kHz, True RMS, Basic accuracy 45 – 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V) | |
| DC+AC Voltage Range | 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.013 V (at 6 V) | |
| DC Power Range | 0.000 kVA to 1000 kVA, When using P2000: 0 kVA to 2000 kVA, Automatically switched based on voltage range, Basic accuracy: ±2.0% rdg. ±20 dgt. | |
| Resistance & Capacity | Resistance Range | 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω) |
| Electrostatic Capacity Range | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF) | |
| Other Measurements | Frequency & Temperature | Frequency: 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz) Temperature (K): -40.0°C to 400.0°C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0°C |
| Other Functions & Features | Continuity check, Diode check, Automatic AC/DC detection, and more. Dustproof and waterproof ratings: IP20 (voltage measurement), IP54 (storage) Power supply: LR03 Alkaline battery ×2, Continuous use: approx. 40 hr |
|
| Physical Characteristics | Dimensions and Weight | 65 mm W × 242 mm H × 35 mm D, 350 g (with batteries) |
| Included Accessories | Test Lead L9300 × 1, Instruction Manual × 1, LR6 (AA) alkaline battery × 3, Operating Precautions ×1 | |
