Hioki Cm4375 Ac/dc Clamp Meter

 Hioki Cm4375 Ac/dc Clamp Meter

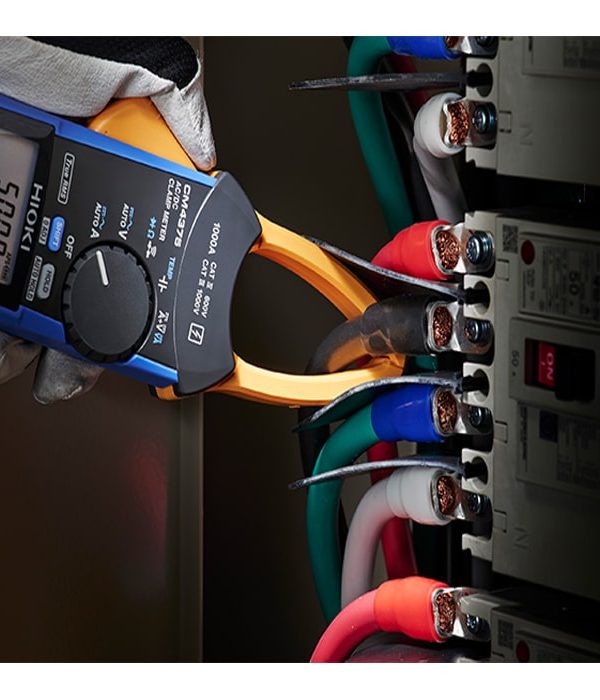

Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4375 is a 1000A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter.

The broad -25°C to 65°C operating temperature range and IP54 dustproof and waterproof enclosure enable professionals to work quickly in challenging situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 1700 V  is ideal for the clamp maintenance inspections of electrical and solar power equipment.

Key Features CM4375

• Automatic AC/DC function helps boost work efficiency, Measuring up to 1000 A
• Easily get into tight spaces between cables thanks to the thin sensor structure
• Simultaneously measure inrush current in RMS and crest values
• Measure DC voltages of up to 2000 V (*1) for open voltage inspections of solar panels
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file.

other products

You can check our other products like hioki cm4375-50 on our website.

AC/DC CLAMP METER CM4375 Specification:

• DC Current: 1000 A/accuracy: ±1.3% rdg
• AC Current: 1000 A/accuracy 45-66 Hz: ±1.3% rdg
• DC+AC Current: 1000 A/accuracy DC, 45-66 Hz: ±1.3% rdg
• DC Voltage: 600.0 mV to 1700 V / accuracy: ±0.5% rdg
• AC Voltage: 6.000 V to 1000 V / accuracy 45 – 66 Hz: ±0.9% rdg
• DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45-66 Hz: ±1.0% rdg
• Resistance: 600.0 Ω to 600.0 kΩ / accuracy: ±0.7% rdg
• Electrostatic  Capacitance: 1.000 μF to 1000 μF / accuracy: ±1.9% rdg
• Frequency: 9.999 Hz to 999.9 Hz / accuracy: ±0.1% rdg
• Temperature (K): -40.0 to 400.0 ˚C
• Dimensions and mass: 65 mm (2.56 in) W × 242 mm (9.53 in) H × 35 mm (1.38 in) D mm, 330 g
