Hioki 3280-10f Ac Clamp Meter
Short Description:
Ac Clamp Meter 3280-10F Key Features:
- Measure the fundamental waveform component using the average rectified method
- Expanded -25°C to 65°C operating temperature range

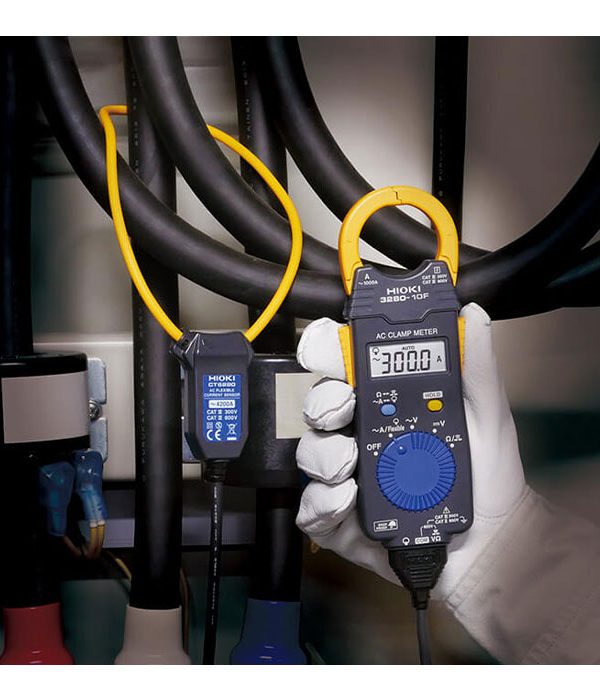

- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
- Drop proof design withstands drop from a height of 1 meter
Product purchase
AED 300 Original price was: AED 300.AED 250Current price is: AED 250. (excl.VAT)
19
People watching this product now!
Terms of sending goods ›
- In-stock items are delivered within 2 business days.
- We are not Supporting COD Payments Terms Outside UAE
Hioki 3280 10F Ac Clamp Meter: Accurate, Compact, and Built for Extreme Conditions
The Hioki 3280-10F AC Current Clamp Meter is a reliable and versatile instrument, capable of measuring up to 1000A with average rectification. It boasts a wide operating temperature range from -25°C to 65°C, making it suitable for use in various harsh environments. The slim and compact clamping core design enhances convenience, allowing for easy use in confined spaces. Additionally, the meter is compatible with an optional flexible current sensor, enabling accurate measurements even in the tightest and most complex wiring setups.
Using 3280 series AC clamp meters: Introduction to functionality and measurement methods
The 3280 Series AC Clamp Meters are designed to offer more than just accurate AC current measurements. These versatile tools also provide voltage and resistance measurement, along with a continuity test function, making them indispensable for electricians and technicians. Their compact size and low-profile design ensure easy handling, even in tight spaces, while their durability and resistance to extreme temperatures and rough handling make them reliable for use in harsh environments. These features make the 3280 Series AC Clamp Meters essential tools for efficient and precise electrical work.
Using the Hioki 3280-10F AC Clamp Meter: Key Measurement Comparisons
When using the Hioki 3280-10F AC Clamp Meter, it’s important to understand how measurements are conducted and how they compare with other models. The Hioki 3280-10F operates using the mean value method, whereas the Hioki 3280-20F utilizes the true RMS method. This distinction is crucial when measuring distorted waveforms containing harmonic components, often generated by inverters and switched-mode power supplies. The differences in readings between these instruments highlight the importance of selecting the appropriate meter for accurate measurements in complex electrical environments.
Hioki 3280-10F Pocket Clamp Meter: Enhanced Flexibility with Optional Sensors
The Hioki 3280-10F AC Clamp Meter stands out as a versatile, pocket-sized tool that can be upgraded for even more complex measurements. By connecting an optional flexible current sensor, this clamp meter becomes capable of measuring current in twisted pairs, intricately routed wires, or tangled cables—situations where a standard clamp sensor cannot reach. This enhanced flexibility makes the Hioki 3280-10F an invaluable instrument for electricians and technicians working in tight or challenging environments.
Hioki Clamp Meter 3280-10F: A Must-Have for Electrical Work
The Hioki 3280-10F Clamp Meter is an essential tool for any electrician, combining the features of a current clamp and card tester in a compact form. This versatile instrument goes beyond just measuring current; it also provides voltage measurement, continuity testing, and resistance measurement capabilities. The Hioki 3280-10F is designed to deliver high performance and reliability, making it a must-have device for efficient and accurate electrical work.
A tough, pocket-size clamp meter with an operating temperature range of -25°C to 65°C
The Hioki 3280-10 AC Clamp Meter is a rugged, pocket-sized device designed to withstand harsh environments. It inherits the exceptional drop resistance of the previous 3280-10 model, capable of withstanding a 1m drop onto concrete, ensuring durability on tough job sites. Additionally, the Hioki 3280-10 extends its operating temperature range from -25°C to 65°C, making it suitable for use in extreme conditions. This robust construction and wide temperature range make the Hioki 3280-10 an ideal tool for professionals working in challenging environments.
3280 10f hioki Specification:
- AC Current: 41.99 to 1000 A/accuracy: ±1.5% rdg
- DC Voltage: 419.9 mV to 600 V / accuracy: ±1% rdg
- AC Voltage: 4.199 V to 600 V / accuracy: ±1.8% rdg
- DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45-66 Hz: ±1.0% rdg
- Resistance: 419.9 Ω to 41.99 MΩ / accuracy: ±2% rdg
- Power supply: Coin-type lithium battery (CR2032) ×1
- Dimensions and mass: 57 mm (2.24 in) W × 175 mm (7.13 in) H × 16 mm (0.63 in) D, 100 g
AC voltage range/resolution/accuracy | |
---|---|
DC voltage range/resolution/Accuracy | |
AC current range/resolution/Accuracy | |
Resistance Range/resolution/Accuracy |
419.9 Ω to 41.99 MΩ/Basic A ±(2.0%rdg±4dgt) |
Jaw Diameter |
φ 33 mm (1.30 in) |
Dimensions |
57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) |
Power |
Coin type lithium battery (CR2032) ×1 |
Accessories |
CARRYING CASE 9398 ×1 |
Auto range |
√ |
Continuity test |
√ |
Data Hold |
√ |
Diode test |
√ |
MIN - MAX |
√ |
True RMS |
√ |
Backlight |
√ |
Datasheet
Manual
The Hioki 3280-10F and Hioki 3280-10 clamp meters are essential tools for professionals in the electrical and energy industries, offering high accuracy and a compact design. To fully utilize these devices, accessing the Hioki 3280-10F manual and Hioki 3280-10 manual is crucial. These manuals provide detailed instructions for safe and effective operation, including measurement procedures, safety precautions, troubleshooting tips, and maintenance guidelines. The Hioki 3280-10F manual explains features like true RMS measurement and compatibility with a flexible current sensor, helping technicians work efficiently in complex environments. Similarly, the Hioki 3280-10 manual offers clear guidance on using the meter’s functions, ensuring optimal performance. For easy access to these manuals and additional product resources, visit MME-AE.com, where you can find everything you need to maximize the capabilities of your Hioki clamp meters.
Specification
Technical Specifications
AC Current Range | 41.99 to 1000 A, 3 ranges (50 Hz to 60 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
---|---|
DC Voltage Range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. |
AC Voltage Range | 4.199 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified), Basic accuracy: ±1.8 % rdg. ±7 dgt. |
Crest Factor | N/A |
Resistance Range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. |
Other Functions | Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter |
Display | LCD, max. 4199 dgt., Display refresh rate: 400 ms |
Environmental Protection | IP40 dustproof and waterproof (while in storage) |
Power Supply | Coin type lithium battery (CR2032) ×1, Continuous use 120 hours |
Core Jaw Diameter | φ 33 mm (1.30 in) |
Dimensions and Mass | 57 mm (2.24 in) W × 175 mm (6.89 in) H × 16 mm (0.63 in) D, 100 g (3.5 oz) |
Included Accessories | CARRYING CASE 9398 ×1, TEST LEAD L9208 ×1, Coin type lithium battery (CR2032) ×1, Instruction manual ×1 |
