Kyoritsu KEW 2031 Miniature AC Digital Clamp Meter

Overview

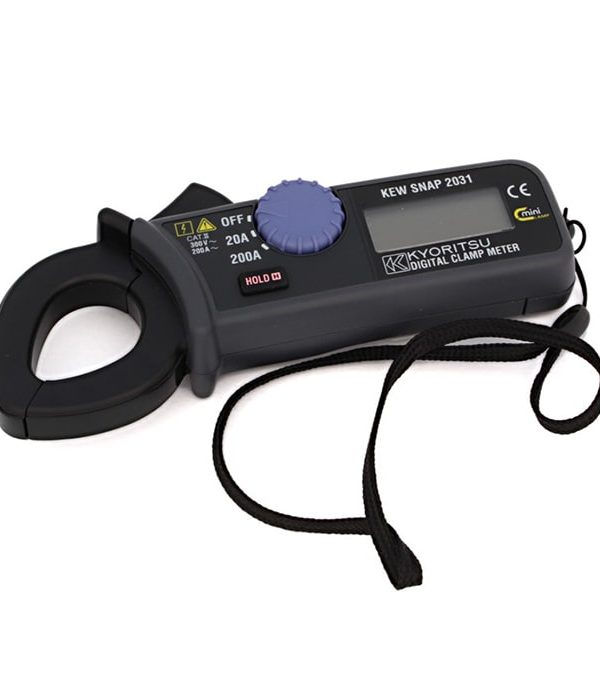

The Kyoritsu KEW 2031 is an ultra-slim, pocket-sized AC digital clamp meter for quick, non-invasive current measurement. Weighing only about 100 g with a compact teardrop-shaped jaw, it slips easily into a shirt pocket or tool pouch and is ideal for electricians who need to check AC current in panels and on cables without carrying a bulky instrument.

The KEW 2031 measures AC current on 20 A and 200 A ranges through a jaw that accepts conductors up to 24 mm, with true-RMS conversion for accuracy on distorted waveforms over a 40 Hz to 1 kHz range. It also measures AC voltage and offers a useful set of functions — data hold, peak hold, MAX/MIN/AVG, relative mode, memory storage and a backlight for low light. It is rated to CAT III 300 V and runs from two LR44 button cells.

Key Features

• Ultra-slim true-RMS AC clamp meter, only ~100 g.
• AC current 20 / 200 A on a compact teardrop 24 mm jaw.
• AC voltage measurement; 40 Hz–1 kHz response.
• Data hold, peak hold, MAX/MIN/AVG and relative mode.

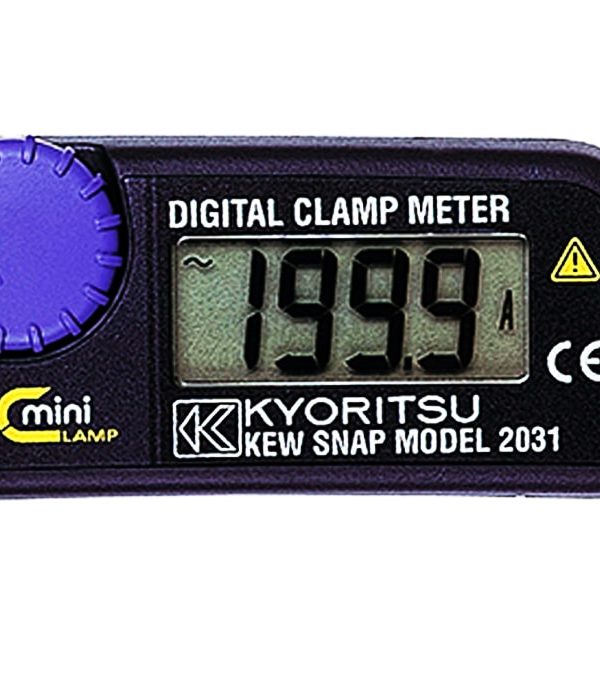

• Memory storage of readings; backlit 3.5-digit LCD.
• Rated CAT III 300 V.
• Runs on two LR44 button cells.

Applications

• Quick AC current checks in panels and on cables.
• Pocket-carry tool for electricians and maintenance staff.
• Load measurement where a compact jaw is needed.
• General field electrical testing.

What’s in the Box

• KEW 2031 miniature AC clamp meter.
• Test leads.
• Two LR44 button cells.

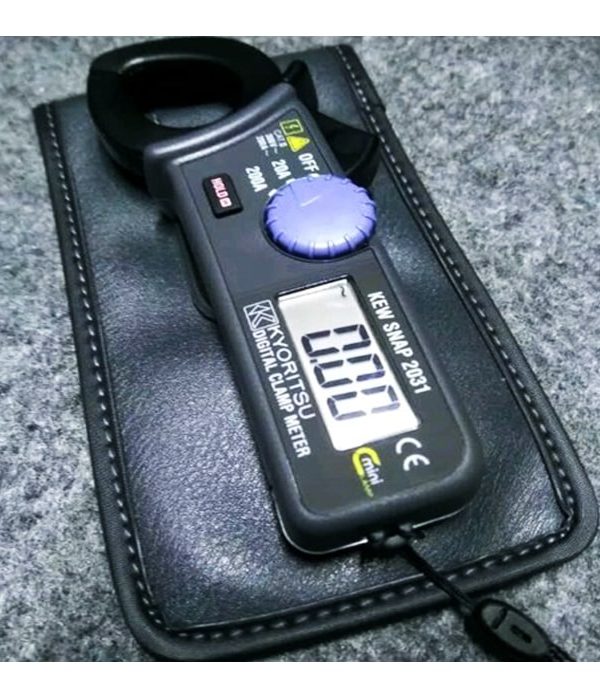

• Carrying case and instruction manual.

Kit contents may vary by order; contact MME to confirm your configuration.
