HIOKI AC CLAMP POWER METER CM3286-50

AC CLAMP POWER METER CM3286-50 Key Features:

  • Display four parameters simultaneously
  • A handheld power meter that measures from 5 W of power and 60 mA of current
  • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
  • Features and functions deliver fast and efficient testing
  • Harmonic analysis from 1st to 30th order
SKU: 990

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

11 People watching this product now!

AC CLAMP POWER METER CM3286-50

Hioki Clamp Meters are best-in-class portable current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp-on power meter can measure voltage, current, power, power factor phase angle reactive, reactive power, or frequency, as well as detect phase sequence on live wires at any desired point in a single-phase or DC circuit. three. phase switching.

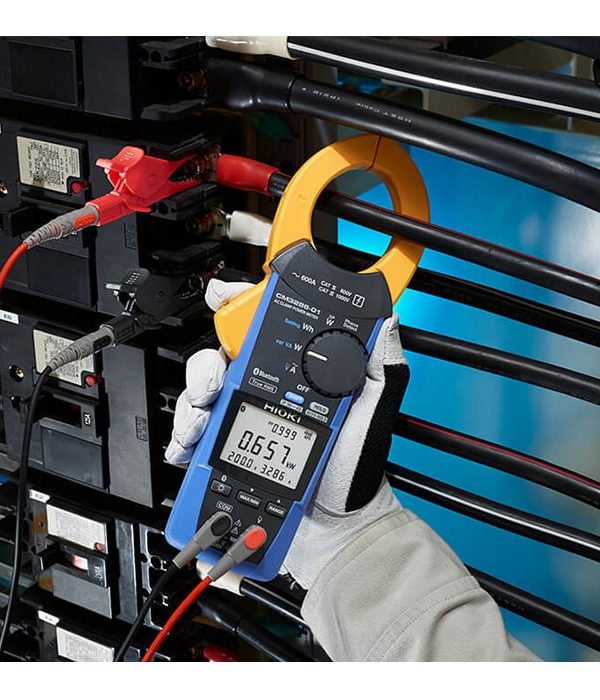

Application Of Ac Clamp Power Meter Cm3286 50

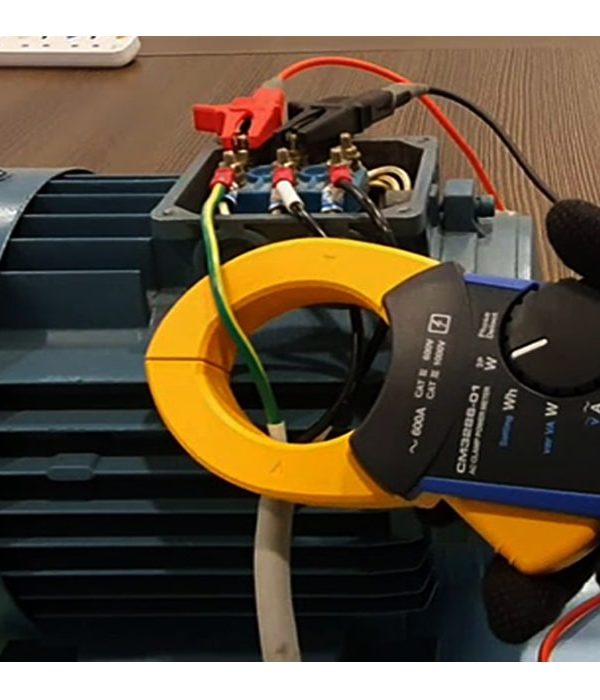

Application of AC CLAMP POWER METER CM3286-50

CM3286-50 features

  • Display four parameters simultaneously
  • Features and functions deliver fast and efficient testing
  • A handheld power meter that measures from 5 W of power and 60 mA of current Measure power ranging from 5 W at a low current of 60 mA to 360 kW
  • Harmonic analysis from 1st to 30th order with GENNECT Cross (Wireless Adapter Z3210 is necessary)
  • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
  • factor phase angle reactive power

connect the Z3210 Wireless Adapter to your instrument, to make it Bluetooth® ready.

Connect Hioki-compatible instruments wirelessly with a simple connection. Transfer measurements to your smartphone or tablet and quickly create reports with photos and field drawings.

Instantly create reports with a free app

GENNECT Cross, a free app specially designed for use with Hioki measuring instruments, allows you to review and manage measurement results and create reports. The software offers a variety of functions for managing data on-site, including photographing measuring points, placing measuring results on photos, and saving handwritten notes.

for the cm328650 ac clamp power meter datasheet click on the datasheet tab and for the cm328650 manual pdf visit this link. Also to buy the ac clamp power meter cm328650 and hioki cm328650 ac clamp power similar hioki products please get in touch with us.

AC CLAMP POWER METER CM3286-50 Specification:

  • AC voltage range: 80.0 V to 600.0 V / accuracy 45-66 Hz: ±0.7% rdg
  • AC current range: 0.060 A to 600.0 A/accuracy 45-66 Hz: ±1.3% rdg
  • Power range [Single phase]:0.005 kW to 360.0 kW / accuracy: ±2.0% rdg
  • Power range [three-phase 3-wire]: 0.020 kW to 623.5 kW / accuracy: ±3.0% rdg
  • Power range [three-phase 4-wire]: 0.040 kW to 1080 kW / accuracy: ±2.0% rdg
  • Dimensions and mass: 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g
  • Power supply: LR03 Alkaline battery ×2

Related Products

0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “HIOKI AC CLAMP POWER METER CM3286-50”

Brand

Hioki

Hioki

Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.

Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.

Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.

DATA sheet

Data Sheet

Specification

Technical Specifications

Measurement Line Single-phase, Three-phase (balanced with no distortion)
Measurement Items Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase)
[With Z3210 installed (*2)] Voltage/Current harmonics
AC Voltage Range [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
AC Current Range [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS)
Power Range [Single phase] 0.005 kW to 360.0 kW, Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 3-wire] 0.020 kW to 623.5 kW, Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1)
[Balanced three-phase 4-wire] 0.040 kW to 1080 kW, Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1)
Harmonic Levels [With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
Other Functions [Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000, [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc.
Dustproof and Waterproof IP20 (Voltage measurement in a completely dry condition. When jaw closes)
IP50 (While in storage)
Power Supply LR03 Alkaline battery ×2, Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications), Other conditions: 100 A AC measurement, backlight off, 23°C reference value
Core Jaw Dia. φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm
Dimensions and Mass 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz)
Included Accessories Connection Cord L9257 ×1, LR03 Alkaline battery ×2, Carrying Case C0203 ×1, Instruction Manual ×2, Operating Precautions ×1
