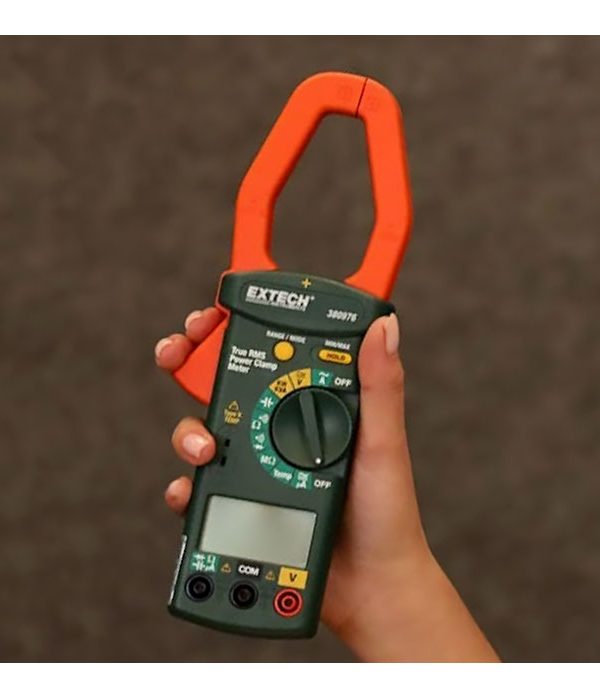

EXTECH 380976-K Phase 1000a AC Power Clamp Meter

EXTECH 380976-K  Key Features

  • 1.6″ (40mm) clamp jaw opening and large dual LCD display (9999 counts)
  • Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
  • AC+DC µA current with 10nA resolution for flame rod tests
  • Auto Detect AC/DC Voltage measurements with simultaneous frequency display
  • Capacitance to 7000µF with 0.001µF resolution
  • High Resistance tests to 100MOhm
  • Type K, °C/°F switchable, temperature to 1000°F
  • Diode and Continuity tests
(1 customer review)
SKU: 7742

Original price was: AED 1,410.Current price is: AED 1,320. (excl.VAT)

We are not Supporting COD Payments Terms Outside UAE

13 People watching this product now!

EXTECH 380976-K Phase 1000a AC Power Clamp Meter Kit

The EXTECH 380976-K is a 1000 A single-phase/three-phase AC clamp meter. Measures 1/3 phase real power (kW), apparent power (kVA), reactive power (kVAR), power (HP), power factor, and phase angle with lead/delay indication. Automatically detect AC/DC voltage measurements with simultaneous frequency display.

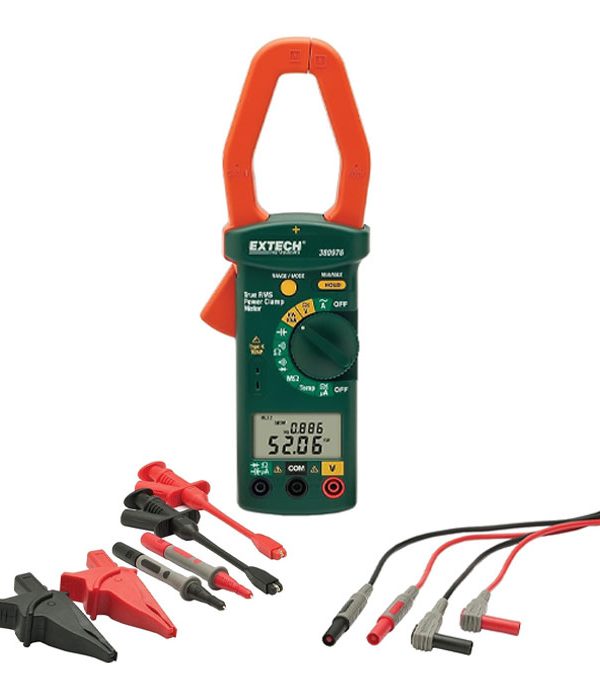

Additionally, the supplied test lead set includes two 72″ CAT IV test leads, 2 modular probe handles, 2 piston-activated jaw clamps, and 2 extra-large alligator clips. meter, type K probe, carrying case, and 9V battery.

To buy EXTECH 380976-K  be in touch with our experts. We offer various models of Extech on our website which you can compare from different sides and choose the best one for your requirement.

EXTECH 380976k single phasethree phase 1000a Key Features

  • 1.6″ (40mm) clamp jaw opening and large dual LCD display (9999 counts)
  • Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
  • AC+DC µA current with 10nA resolution for flame rod tests
  • Auto Detect AC/DC Voltage measurements with simultaneous frequency display
  • Capacitance to 7000µF with 0.001µF resolution
  • High Resistance tests to 100MOhm
  • Type K, °C/°F switchable, temperature to 1000°F
  • Diode and Continuity tests
Applications
  • AC Power evaluation
  • Motor/Generator installation and repair
  • HVAC flame rod tests
  • Capture max/min temperature or current values
  • Category III rating for industrial measurements

EXTECH 380976-K  AC Power Clamp Meter Specifications

  • True Power (W): 600kW / 10W ±5%
  • Apparent Power(kVA): 600kVA / 100VA ±2%
  • Reactive Power (kVAR): 600kVAR/10VAR ±5%
  • Horsepower (HP): 800HP/0.01HP ±5%
  • Phase Angle (f): -60 to +60° / 0.1° ±6°
  • AC Current: (Trms): 1000A / 10mA ±2%
  • uA Current (AC+DC) (Trms): 1000µA / 10nA ±1%
  • AC/DC Voltage: (Trms): 600V / 0.1mV ±1%
  • Resistance (Ω): 1000kΩ / 0.1Ω ±1%
