PCE PIC 40 Industrial Borescope
Short Description:
With the PCE PIC 40 Industrial Borescope, a potent inspection camera, you can easily see difficult-to-reach locations. With the addition of supplementary cables, the probe’s 1 m length and 5.5 mm diameter can be increased to 20 m. A 4.3-inch LCD screen with a resolution of 480 x 272 pixels, a zoom feature, an LED light adjustment, and a photo and video recording feature are all features of the PCE PIC 40 Industrial Borescope.
Product purchase
AED 9,520 (excl.VAT)
15
People watching this product now!
Terms of sending goods ›
- In-stock items are delivered within 2 business days.
- We are not Supporting COD Payments Terms Outside UAE
PCE PIC 40 Industrial Borescope
You can investigate difficult areas like pipelines, ducts, machinery, walls, and more with the use of powerful equipment like the PCE PIC 40 Industrial Borescope. It is designed to be used in a range of commercial and industrial contexts, such as automotive, aerospace, plumbing, construction, maintenance, and inspection.

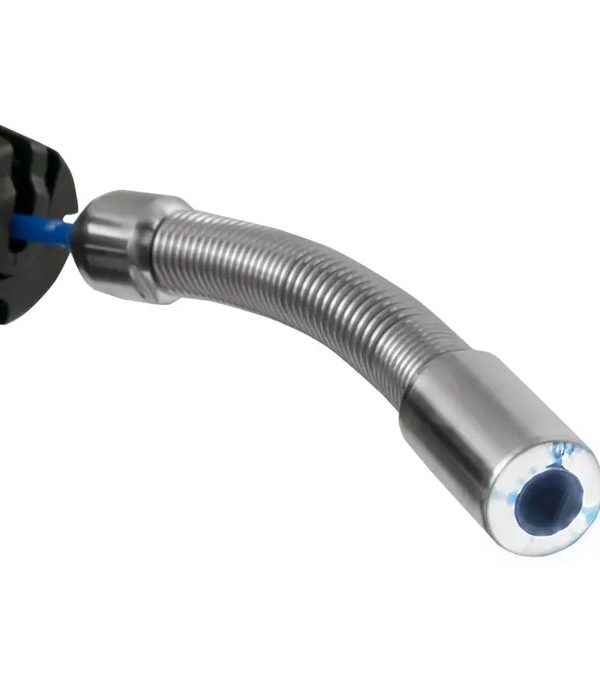

The PCE PIC 40 Industrial Borescope’s flexible and waterproof probe may be bent and twisted to reach different angles and directions. The inspection region can be illuminated with an adjustable LED light built into the probe. High-definition images and videos of the inspection area can be captured by the probe’s camera.
The PCE Industrial Borescope comes with a big, crisp LCD monitor that displays a live image and video of the inspection area.A memory facility that supports a micro SD card (not provided) that can store up to 32 GB of data is also featured. The data can be seen on a PC by using a USB link and the included software. Using the software, you can modify, annotate, and share images and videos of the inspection area.
The PCE PIC 40 Industrial Borescope is lightweight, easy to use, and has an ergonomic design. The package also comes with a traveling bag, a USB cable, a software CD, and an instruction booklet in addition to the four accessories—a hook, a magnet, a mirror, and a protective cap. The device is powered by four AA batteries (not included) or an AC adapter (optional).
You may inspect and spot several problems and flaws in hard-to-reach areas with the help of the pce instruments inspection camera, model number PCE Pic 40.Whether you need to evaluate the state of pipes, ducts, engines, machinery, walls, or other items, the PCE PIC 40 Industrial Borescope can provide you with clear, in-depth pictures and movies of the inspection area.
PCE PIC 40 Industrial Borescope Specifications
Technical specifications | Ranges |
Cable diameter/head diameter | 23 mm / 0.9 in |
Cable length | PCE-PIC 40: 40 m / 131 ft |
Sight depth | 20 … 100 cm |
Perspective | 120° |
Lighting | 12 x LED (dimmable) |
White balance | Automatically |
Image sensor | 1/3″ Sony CCD
camera with 40 m 131 |
720 x 576 pixels | |
Display | 7″ LC display |
Interface | USB 2.0 |
Memory option | Video, photo, and sound |
Image memory | SD card up to 32 GB |
Video output format | PAL 720 x 576 pixels |
NTSC 720 x 488 pixels | |
Menu navigation | Multilingual: German, English, French, Spanish, Italian, Portuguese, Japanese, Chinese, Russian |
Length measurement | 0 … 40 m / 0 … 131 ft |
Data entry | By keyboard possible |
Operating conditions | -10 … 50°C / 14 … 122°F, 30 … 90% rh |
Storage conditions | -20 … 60°C / -4 … 140°F, 30 … 90% rh |
Power supply | Power supply 110V … 240V AC / 12V / 1.2 A DC |
Li-Ion battery 7.4 / 5400-mAh | |
Protection class | Display: IP66 |
Camera head: waterproof up to 20 m / 66 ft | |
Dimensions | Complete: 55 x 43.5 x 34.5 cm |
Camera head: 23 x 45 mm / 0.9 x 1.8 in (total length: 150 mm / 5.9 in) | |
Weight | About 13 kg / 28.7 lbs |
