PCE-TDS 100H Portable Ultrasonic Flow Meter

The PCE-TDS 100H Portable Ultrasonic Flow Meter is a device designed for non-invasive measurement of liquid flow rates through pipes. This tool uses ultrasonic technology to determine the flow of liquid without needing any direct contact with the fluid.

SKU:81651

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Original price was: AED 7,300.Current price is: AED 6,900. (excl.VAT)

16People watching this product now!

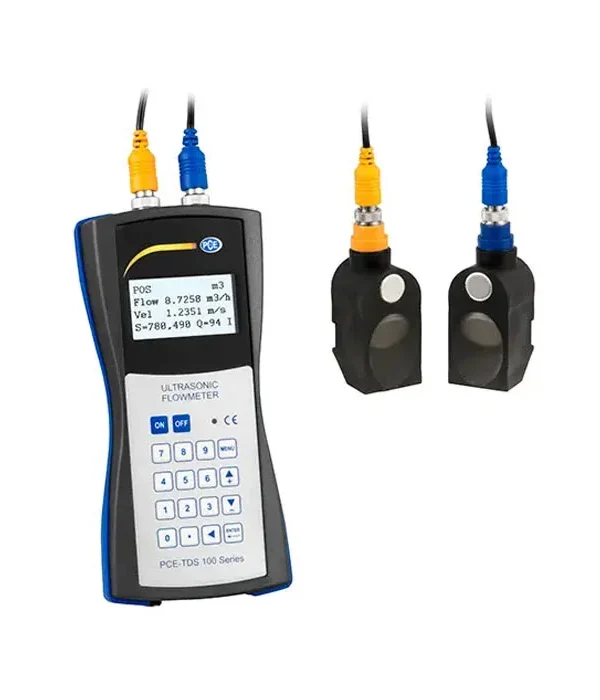

PCE-TDS 100H Portable Ultrasonic Flow Meter

The PCE-TDS 100H Portable Ultrasonic Flow Meter is a device designed for non-invasive measurement of liquid flow rates through pipes. This tool uses ultrasonic technology to determine the flow of liquid without needing any direct contact with the fluid.

This is a portable handheld clamp-on Portable Ultrasonic Flow Meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 57 … 720 mm / approx. 2 … 28 in. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this Portable Ultrasonic Flow Meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.

PCE-TDS 100H Key Features

  • Ideal for retrofitting
  • Installation without process interruption
  • Easy assembly
  • Accurate and reliable
  • No pressure loss
  • Maintenance-free, no moving parts
  • Wear-free
  • Portable devices for control measurements

PCE-TDS 100H Specifications

Handheld measuring range-32 … +32 m/s
Resolution0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm:±1.5 % of measured value
for DN < 50 mm:±3.5 % of measured value
Reproducibility±1.0 % of measured value
MediaAll liquids with an impurity <5% and a flow >0.03 m³/h
Flow unitsCubic meter [m³]
Liter [l]
Gallon (USA) [gal]
Imperial gallon (UK) [igl]
Million USA gallon [mgl]
Cubic foot [cf]
Barrel (USA) [bal]
Imperial barrel (UK) [ib]
Oil barrel [ob]
Time settingsper day [/d]
per hour [/h]
per minute [/m]
and per second [/s]
Data logger60,000 measurements
InterfaceUSB (for online measurement and reading of the internal memory)
ProtectionIP 52
Power supply3 x AA NiMH rechargeable battery / 2100 mAh (at full charge 12h running time)
100 … 240 V AC 50/60 Hz
Dimensions214 x 104 x 40 mm / 8.4 x 4.1 x 1.5″
Weight450 g / 15 oz
Sensor (only PCE-TDS 100 H)nominal width  DN 50 … 700, 57 … 720 mm / approx. 2 … 28″
Temperature of liquid-30 … 160 °C / -22 … 320 °F
Dimensions50 x 45 x 45 mm / 1.9 x 1.7 x 1.7″
Weight260 g / 9oz
