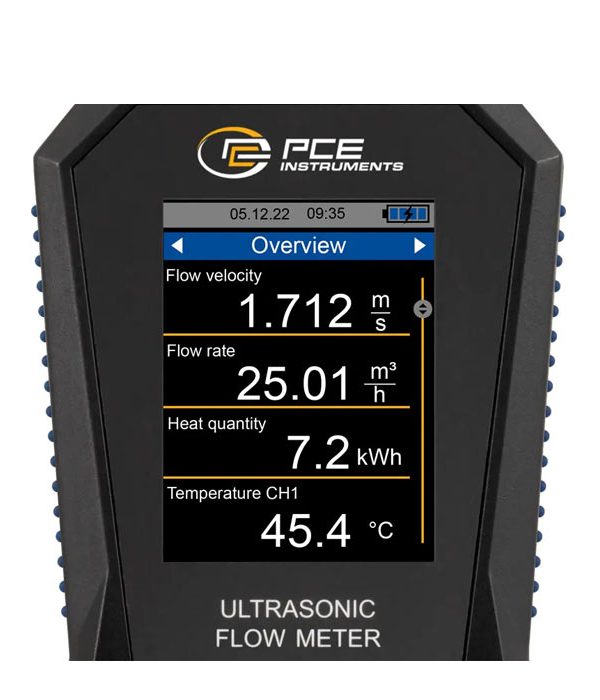

PCE-TDS 200 Plus M Ultrasonic Flow Meter with BTU

PCE-TDS 200 Plus M Ultrasonic Flow Meter with BTU

PCE-TDS 200+ M is an ultrasonic flowmeter with a measuring range of ±32 m/s. It boasts an impressive accuracy of ±1.5 % f.s. for pipe diameters DN ≥50 and ±3.5 % f.s. for DN <50, with a reproducibility of ±0.5 % f.s. This makes it an exceptionally precise measurement tool. To aid in sensor installation, the ultrasonic flow meter includes an installation guide.

This guide provides a graphical representation of the signal quality and indicates whether the sensors are correctly positioned in relation to each other. When conducting flow measurements with this device, users can input pipe and medium specifications to obtain readings for flow velocity, volume flow, and volume. The ultrasonic flow meter offers a wide array of units for displaying measured values, such as m³, l, gal, igl, mgl, cf, bal, ib, and ob.

The ultrasonic flow meter offers a data logger function, allowing users to record measured values during a measurement. Users can set start and stop conditions as well as the storage interval, which ranges from 1 second to 12 hours. Each memory point of the ultrasonic flow meter holds all measured values once. These values are saved on the device’s 32 GB built-in memory, with the capacity to store up to 10 million measuring points.

PCE-TDS 200 Plus M Key Features

• Measuring range ±32 m/s
• USB-C interface for data transfer
• Optional software for analyzing the measured values
• Reproducibility ±0.5 % of measured value
• Heat quantity measurement
• Data memory for 10 million measuring points
• individually adjustable alarm limits
• optionally with ISO or DAkkS calibration certificate

PCE-TDS 200+ M Specifications

Flow measurement

• Measuring range: ±32 m/s
• Accuracy: 0,001 m/s
• Accuracy: DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s, DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s

PCE-TDS 200 M SENSOR

• Pipe diameter: DN 50 … 700 / 57 … 720 mm
• Temperature resistance: -30 … 160 °C
• Measurement parameters flow velocity, volume flow and volume
• Units (dimensions) mm, in
• Units (flow velocity) m/s, ft/s
• Units (volume flow) m³, l, gal, igl, mgl, cf, bal, ib, ob
• Time specification seconds, minutes, hours, days
• Units (volume) m³, l, gal, igl, mgl, cf, bal, ib, ob
• Operating time: approx. 10 h
• Dimensions: 165 x 85 x 32 mm
• Weight: 255 g
