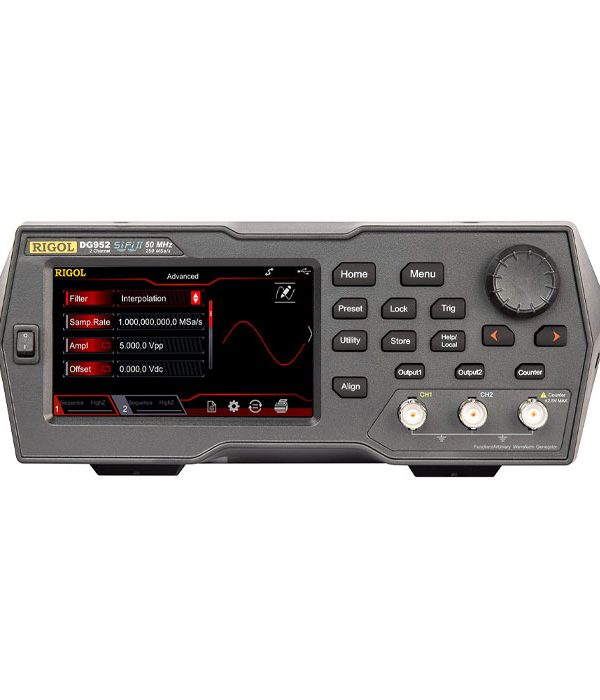

Rigol DG952 50MHz Function Waveform Generator

Rigol DG952 50MHz Function Arbitrary Waveform Generator

Rigol DG952 50MHz Function Waveform Generator is a 2-channel, 50MHz function generator with a maximum sample rate of 250MSa/s. The Rigol DG900 series offers user-friendly and powerful function/arbitrary wave generators at a very attractive price. Each tool offers different features including Function Generator, Arbitrary Waveform Generator, Noise Source, Pulse Generator, Harmonic Generator, Analog/Digital Modulator, and Frequency Counter.

Any Rigol DG900 Series Function/Arbitrary Waveform Generator would be a great addition to any home, professional, or educational lab. Visit our experts to buy  DG952 50MHz Function Waveform Generator at the lowest price.

Rigol DG952 50MHz Function Generator FEATURES

• Exclusive SiFiII technology (Signal Fidelity II), Two fully functional and independent channels
• Maximum frequency 50 MHz, Sampling frequency 250 MSa/s
• Vertical resolution 16 bits
• Basic waveforms: sine, square, ramp, pulse, noise, constant, double tone
• Extended waveforms: PRBS, RS232, sequence/ 160 built-in arbitrary waveforms
• Arbitrary waveform memory depth 16 Mpts per channel
• Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
• Intuitive arbitrary waveform editing software for PC
• Frequency stability ±1ppm, Phase noise <-105dBc/Hz at 10kHz (f=10MHz)
• Onboard 7-digit counter up to 240MHz, Onboard 8th harmonic generator, Waveform summing function

DG952 Waveform Generator SPECIFICATIONS

• Channels 2
• Output signals Sinus, Block, Ramp, Pulse, Harmonic, DC, Noise, PRBS, Dual-tone, RS232
• Vertical resolution 16 bits, Sample Rate 250 MSa/s
• Frequency Resolution 1 μHz, Waveform length 16 Mpts
• Amplitude range <10 MHz: 1 mVpp – 10 Vpp, <30 MHz: 1 mVpp – 5 Vpp, <60 MHz: 1 mVpp – 2.5 Vpp, >60 MHz: 1 mVpp
• Modulation AM, FM, PM, ASK, FSK, PSK, PWM, Output Precision ± (1% + 5 mV)
• Frequency counter bandwidth 240 MHz (7 digits/s), Output Impedance 50 Ω
• Display 4.3″ TFT LCD touch screen (480 x 272), Interfaces USB Host, USB Device, USB-GPIB
• Weight 1.75 Kg
• Dimensions 237.4x97x268 mm
