Rigol DS1104Z Plus digital oscilloscope 100 MHz 4 channels

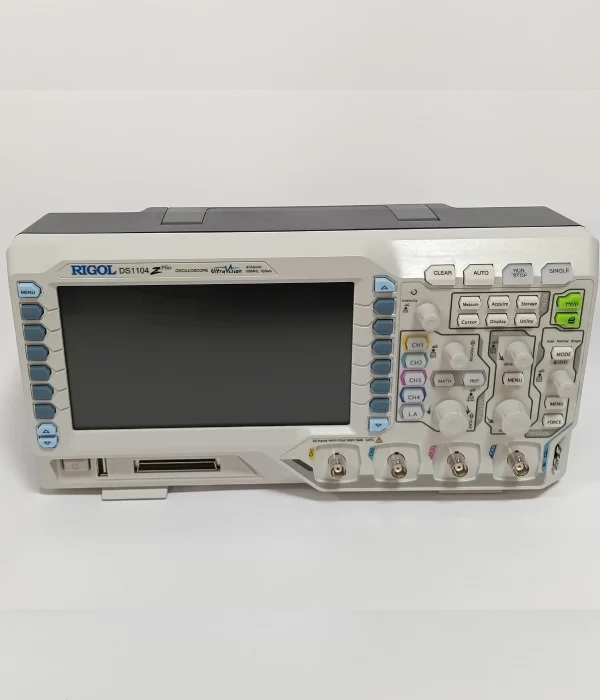

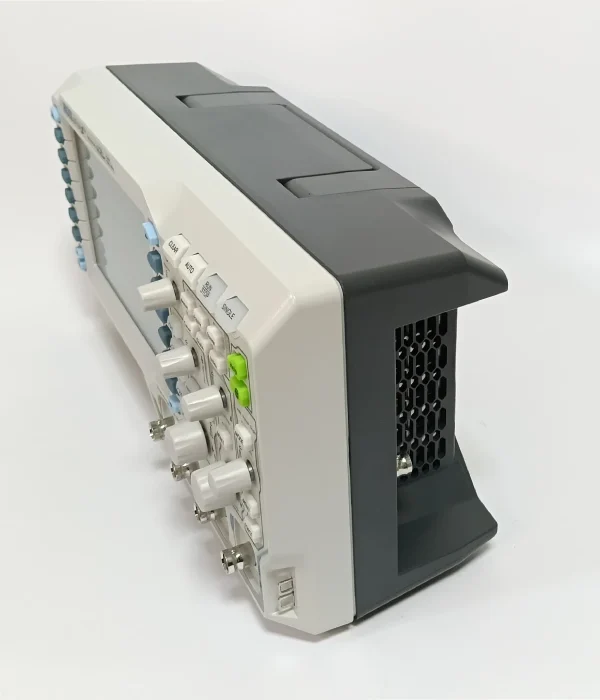

Rigol DS1104Z Plus Digital Oscilloscope

Rigol DS1104Z-Plus is a high-quality digital 4-channel storage oscilloscope. It has a real-time sampling rate of up to 1 GSa/s and a bandwidth of 100 MHz.

Rigol oscilloscopes have well-designed and user-friendly control panels that offer comprehensive and user-friendly functions for all measurement activities. The menu navigation is intuitive and available in several languages.

This high-performance standard not only captures instantaneous signals in real-time but also allows you to see the details of repetitive signals. The DS1074Z-Plus has a refresh rate of up to 30,000 wfms/s, allowing users to capture instantaneous and atypical signals faster. It also helps improve waveform capture ability and speed up the circuit debugging course. The quality of Rigol oscilloscopes is comparable to that of Agilent and Tektronix oscilloscopes.

The particularly large TFT color displays are easy to read. Thanks to the intelligent system for showing or hiding information, the largest possible area is always available for displaying signals. Signal curves, FFT displays, and other functions can be displayed simultaneously on the screen.

To get information about the rigol ds1104z plus price you can contact us through mme.

Buy Rigol DS1104Z Plus Digital Oscilloscope

Rigol DS1104 Z Plus Features:

• Bandwidth: 100 MHz
• 4 analog channels
• MSO
• Ultra Vision Technology
• 4 optional measurement functions are included now
• USB interface
• 7″ TFT color display

Large Display for 4 Channels

You can conveniently view all four channels on the large display with a diameter of 17.8 cm (7 inches) and a resolution of 800 × 480 pixels.

Deeper Memory

Rigol DS1000Z oscilloscopes can store up to 12 million measurement points MEM – DS1000Z memory module, and up to 24 million data points are available.

Fast Capturing

The high sampling rate (up to 1 GSa/s) of the Rigol DS1000Z oscilloscopes and the large memory enable the recording of up to 30,000 waveforms per second.

Realtime waveform record, replay, analysis

With the optional recorder module DS1000Z-REC, recorded waveforms can be easily recorded, displayed, and analyzed.

Multi-Level Intensity Grading Display

“Multi-Level Dimming Strength” display, even extended signal curves with a large number of measured values ​​can be displayed in full.

Extensive Trigger Options

oscilloscopes from Rigol offer extensive trigger options for professional use.

Serial bus decoding function

With the optional SA-DS1000Z decoding kit, serial data packets from various serial bus systems can be directly parsed, decoded and displayed as byte values. The supported protocols are: RS232/UART, I²C and SPI.

Advanced Math

DS1000Z series oscilloscopes are equipped with a modern and advanced mathematical system that allows you to easily solve complex signal calculations using predefined formulas.

Masked Pass/Fail-Tests

Pass/Fail tests can be used to troubleshoot various environments such as communication networks.

Auto measurements with statistics

The oscilloscope simultaneously measures up to five parameters, including rise and fall time, amplitude, pulse width, duty cycle, etc., and displays statistics for each parameter (maximum, minimum, and average values).

Rigol DS1104 Z Plus Digital Oscilloscope Specifications

• Display: 17,8 cm (7″) WVGA-Farb-LCD
• Resolution: 800 × 480 Pixel
• Size (W × H × D): 313 mm × 160 mm × 122 mm
• Weight: 3.2 kg
• Channels: 4
• Bandwidth: 100 MHz
• Sampling Rate: 1 GSa/s
• Sampling Modus: Normal, average, peak detect
• Mathematics: user defined, FFT (Fast Fourier Transform)
• FFT windows: Rectangle, Hanning, Hamming, Blackman
• Signal Bus Decoding: RS232/UART (optional), I²C (optional), SPI (optional)
