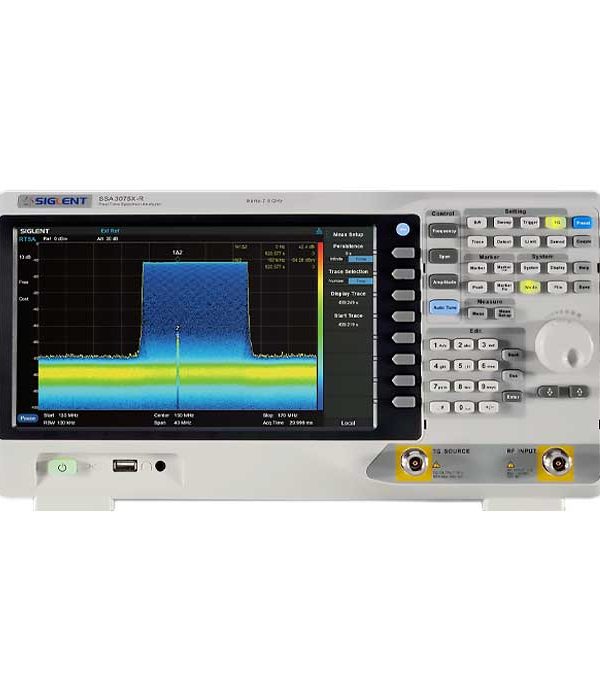

Siglent SSA3000X-R Real-Time Spectrum Analyzers

Siglent SSA3000X-R Real-Time Spectrum Analyzers

The SIGLENT SSA3000X-R Real-Time Spectrum Analyzer is a powerful and versatile tool for monitoring and analyzing complex RF signals. With an analysis bandwidth of 40 MHz and 7.2 µs 100% POI, the SSA3000X-R spectrum analyzer can provide multi-dimensional data visualization, advanced triggering, and RF data acquisition, to solve and addresses modern RF spectrum challenges, such as frequency hopping, channel contention, spectrum interference, and more.

They also offer a standard trace generator for network analysis, optional broadband digital modulation analysis, and an EMI compliance pre-test. production and maintenance.

Siglent SSA3000X Features

• Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz

• VNA and DTF included
• -165 dBm/Hz Displayed Average Noise Level (Typ.)

• -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)

• Level Measurement Uncertainty < 0.7 dB (Typ.)

• 1 Hz Minimum Resolution Bandwidth (RBW)

• Preamplifier and Tracking Generator Standard

• Vector Network Analyzer Mode Standard
• Distance to Fault Mode Standard

• Up to 40 MHz Real-Time Analysis Bandwidth

• 100% POI 7.20 μs, Dynamic Range 60 dB
• 10.1-inch Multi-Touch Screen, Mouse, and Keyboard supported

• Web Browser Remote Control on PC and Mobile Terminals and File Operation

Siglent SSA3000X  Specifications

• Structure

• Dimensions: 393 mm × 207 mm × 116.5 mm (W×H×D)
• Weight Net: 4.70 kg (10 lb); Shipping: 5.50 kg
• Display: TFT LCD, 1024 × 600, 10.1-inch capacitive multi-touch screen
• Storage: Internal (Flash) 256 MB, external (USB storage device) 32 GB

• Working Environment

• AC voltage range: 100-240 V, 50/60 Hz or 100-120 V 400 Hz;
• Power consumption: 70 W (MAX)
• Working temperature: 0 °C to 40 °C,
• Storage temperature: -20 °C to 70 °C
• Humidity:0 °C to 30 °C, ≤ 95% Relative humidity, 30 °C to 50 °C, ≤ 75% Relative humidity
• Altitude Operating: less than 3 km

Accessories

• USB Cable
• Power Cord
• Quick Start Guide-SSA3000X-R
