testo 174 H Temperature and humidity mini data logger

testo 174 H Temperature and humidity mini data logger

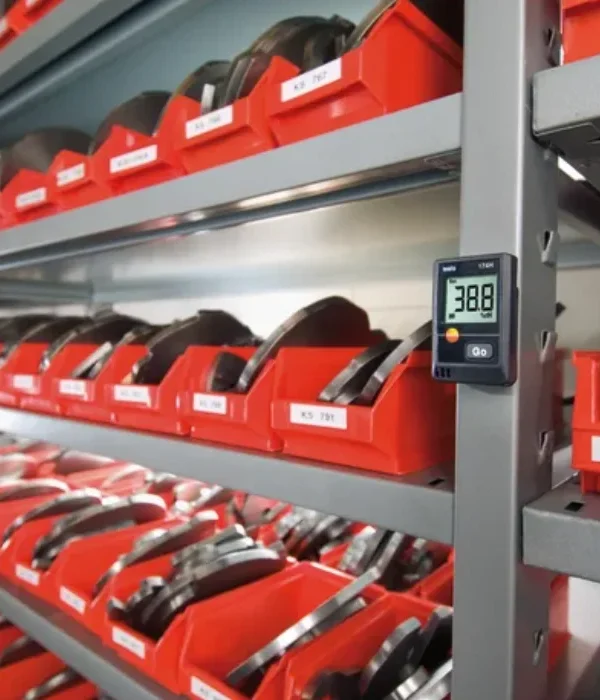

The testo 174 H allows you to monitor temperature and humidity-sensitive goods – including foods, archives, or metal parts that are susceptible to surface rust – or carry out discreet humidity checks in buildings to ensure that the property is being properly looked after by the tenants.
The testo 174-H mini data logger has built-in Longlife sensors that can measure the temperature and humidity of the surrounding environment, a memory for up to 16 000 measurements, and an easy-to-read display that shows the current reading as well as any breached thresholds. Practical: The standard batteries (2x CR 2032) included in the scope of supply can be easily replaced by the user.

To download testo 174h data sheet use the link in tab section.and also for testo 174h price please contact us also testo 175 is available on mme-ae website.

Testo 174H Data Logger overview:

The Testo 174H Data Logger is a versatile and compact device designed for precise monitoring of temperature and humidity. This 174H Testo model is ideal for a variety of applications, including storage, transportation, and environmental monitoring in sensitive areas such as museums, archives, and server rooms.

The Testo 174H Mini Data Logger stands out due to its small size and reliable performance. Despite its compact dimensions, the Mini Data Logger Testo 174H is equipped with high-quality sensors that ensure accurate and consistent readings. This device can record temperature ranges from -20 to +70°C and humidity from 0 to 100% RH, making it suitable for both low and high humidity environments.

With the ability to store up to 16,000 readings, the Testo 174H Mini Data Logger provides extensive data collection over extended periods. The data is easily accessible via USB, allowing for quick and convenient download and analysis using the free ComSoft Basic software. This software enables users to configure the logger, analyze recorded data, and generate comprehensive reports.

testo-174 H Features

• High-accuracy NTC thermistor sensor for reliable measurement data of temperature and humidity
• Easy-to-read large display that shows current reading and exceeded measurement limits
• IP65 protection class
• HACCP compliant

Connecting data logger to PC

1. Install testo 174h software download. The software is available on the Internet as a free download.

2. Connect the connecting cable of the interface to a free USB interface on the PC.

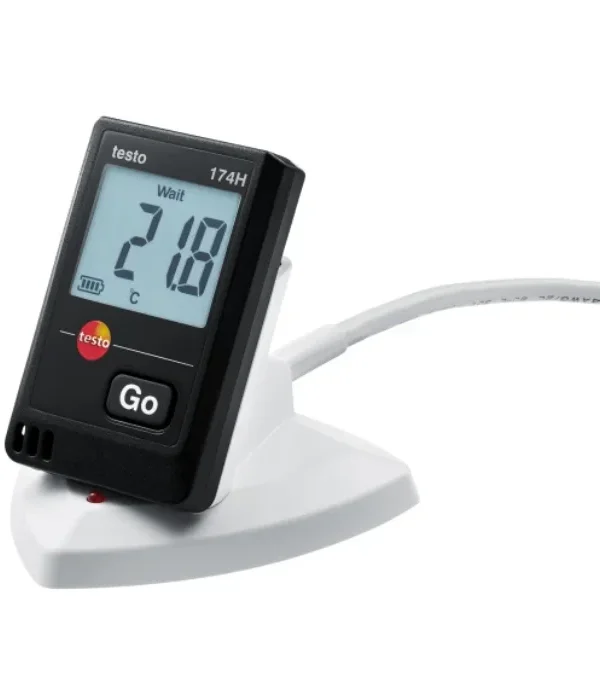

3. Slide the data logger into the bracket of the interface.

4. Configure data logger, see separate testo ComSoft instruction manual.

Frequency Asked Questions

What is Testo device?

Testo offers you the ideal measuring device for every measurement or supplies you with the complete measuring system. combustion gas analyzers. Cold/climate test. Airflow/ventilation measurement. Thermographic Cameras.

Is Testo German?

Testo SE & Co.KGaA, based in the Black Forest in Lenzkirch, Germany, is the world market leader in the field of portable and stationary measurement technology.

what is testo 174-d?

USB cradle for connecting Testo data loggers to your computer for data transfer and analysis

testo 174H Specifications :

• Temperature – NTC (Measuring range): -20 to +70 °C
• Accuracy : ±0.5 °C (-20 to +70 °C)
• Resolution: 0.1 °C
• Humidity – Capacitive (Measuring range) : 0 to 100 %RH*
• Accuracy : ±3 %RH (2 to +98 %RH) at +25 °C , ±0.03 %RH/K ±1 Digit
• Resolution: 0.1 %RH
• Weight: 34 g
• Dimensions : 60 x 38 x 18.5 mm
• Operating temperature: -20 to +70 °C
• Product-/housing Material: Plastic
• Protection class: IP20
• Channels: 2 internal
• Product color: Black
• Standards: 2011/65/EU; EU-guideline 2014/30/EU
• Measuring rate: 1 min – 24 h
• Battery type: 2 x 3V button cell (CR 2032)
• Battery life: 1 year (15 min measuring cycle, +25 °C)
• Memory: 16,000 measuring values
• Storage temperature: -40 to +70 °C
