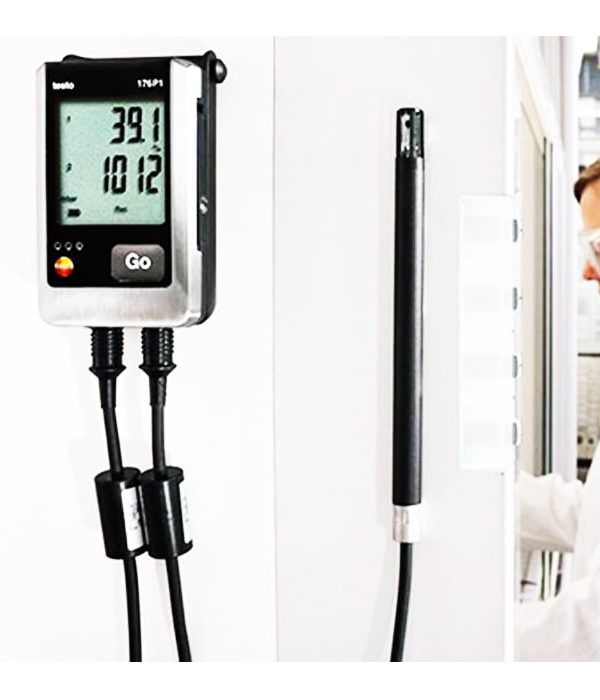

Testo 176 P1 data logger

Order-Nr.  0572 1767

When ambient conditions, for example, in a laboratory, need to be documented securely and highly accurately, choose the data logger testo 176 P1. It has an integrated sensor that measures absolute pressure precisely in the range from 600 mbar up to 1100 mbar.

Up to two temperature/humidity probes can be additionally connected to the 5-channel data logger testo 176 P1. A wide selection of probes is available to you for this purpose.

The lock included in delivery protects your loggers from unauthorized access.

Security and convenience at all levels
The testo 176 P1 data logger for absolute pressure, temperature, and humidity guarantees high data security and reliable measurement results based on modern measurement technology.

When temperature/humidity probes are connected, the data logger also shows the dewpoint in the display and the current measurement values. You can read programmed limit values, min., and max. Values, limit value violations, and the remaining battery life easily from the large display. It is, therefore, not necessary to read out the data logger to a PC in order to gain a quick overview.

Thanks to the large memory for 2 million measurement values and the battery lifetime of up to 8 years, you can read out the data much less often, even at shorter measurement intervals. The standard battery (AA) can be easily exchanged at any time by the user.

Testo 176 P1 Absolute pressure- temperature and humidity data logger specification :

• Weight: 230 g
• Dimensions : 103 x 63 x 33 mm
• Operating temperature: -20 to +70 °C
• Protection class: IP54
• Battery type : 1 x Lithium (TL-5903)
• Battery life: 8 years at 15 min. meas. rate, +25 °C
• Memory : 2,000,000 measuring values
• Storage temperature: -40 to +85 °C
• Measuring range Absolute Pressure: 600 to 1100 mbar
• Accuracy Absolute Pressure : ±3 mbar (0 to +50 °C) ±1 Digit
• Resolution Absolute Pressure: 0.1 mbar
• Measuring range Absolute Pressure : 0 to 100 %RH
• Resolution Absolute Pressure: 0.1 %RH
• Measuring range Temperature – NTC: -20 to +70 °C
• Resolution Temperature – NTC: 0.1 °C
