testo 206-pH1 – pH/temperature measuring instrument for liquids

testo 206-pH1

Order-Nr.  0563 2061

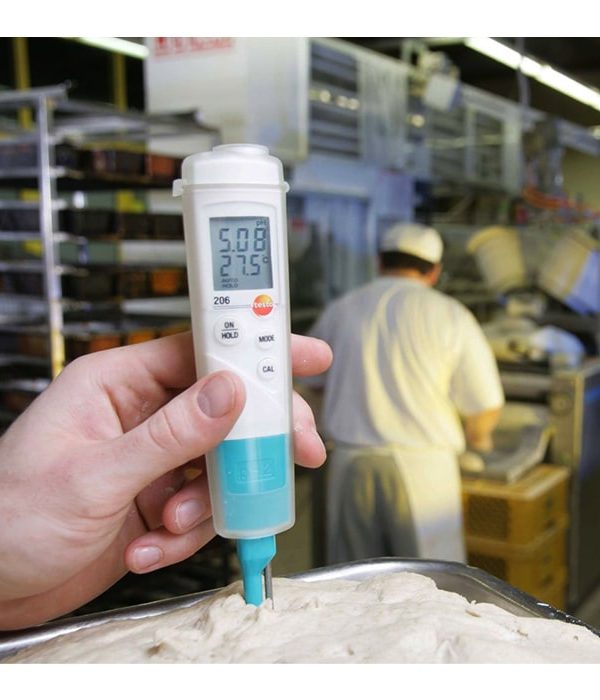

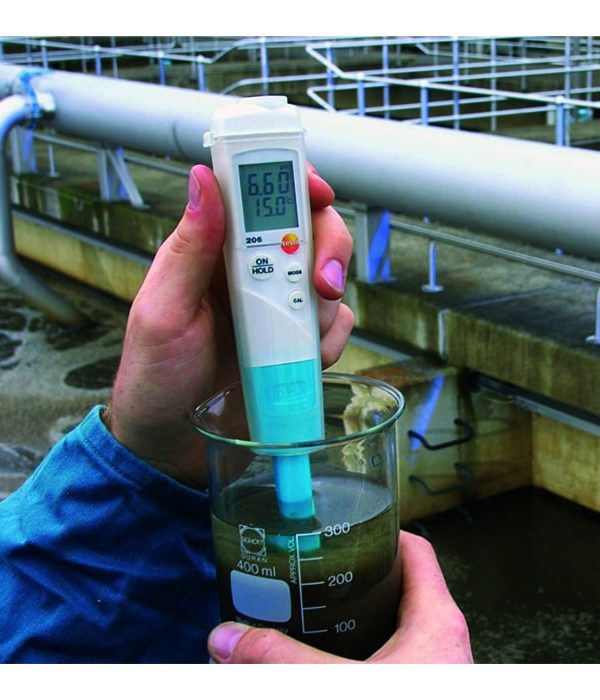

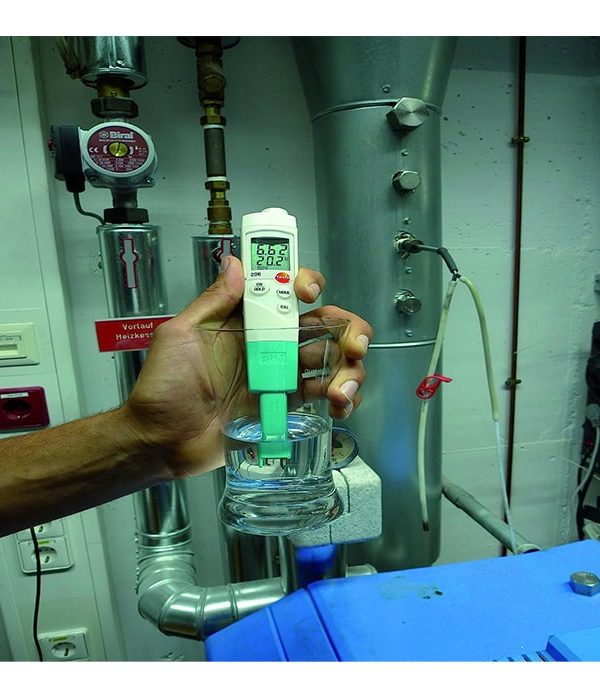

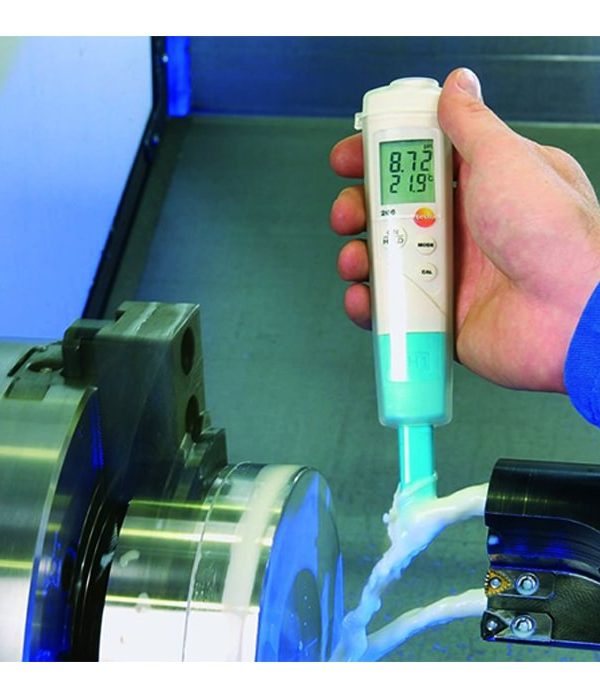

pH value and temperature are key parameters for guaranteeing the quality of products in the food sector, the cosmetics industry the sanitary and HVAC sector, etc. With the testo 206-pH1 pH temperature measuring instrument, you can reliably measure the temperature and pH value in liquids (e.g. drinking or heating water) or even in viscoplastic media.
The advantages of the pH/temperature measuring instrument at a glance
The testo 206-pH1 temperature and pH measuring instrument boasts the following features:
the pH probe is ideal for measurements in liquids (and can even be used in viscoplastic media). The temperature sensor ensures precise, fast temperature compensation, and therefore accurate pH measurement

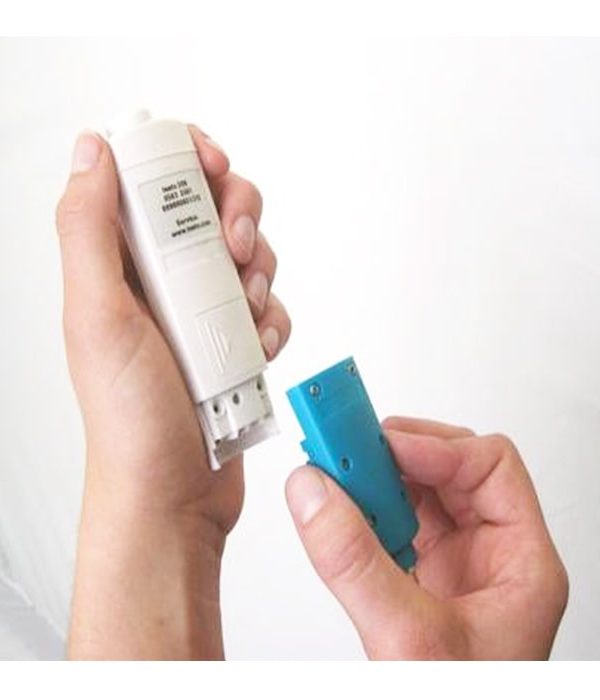

The pH probe is maintenance-free, leak-proof, and insensitive to dirt thanks to the gel electrolyte in the probe
The dual wall diaphragm of the pH probe guarantees quick, reliable pH measurement
Simultaneous display of pH value and temperature on the clear display
Automatic final value recognition (auto-hold): the reading is automatically held once it is stable

With the included accessories, you are ideally equipped for measuring pH:
TopSafe protective case: this is dishwasher-safe, hygienic, and protects the measuring instrument from dirt, water, and impact. Safely stored in the protective case, the pH measuring instrument is waterproof in accordance with protection class IP 68
Storage cap with gel: the storage cap, which is filled with gel electrolyte and attached to the pH probe, is used to store the probe between measurements
Belt/wall bracket: used for storing the measuring instrument on the wall or on a belt

testo 206-pH1 – pH/temperature measuring instrument for liquids specification :

• Weight: 69 g
• Dimensions : 197 x 33 x 20 mm ((LxWxH)) ,  110 x 33 x 20 (without probe and TopSafe)
• Operating temperature : 0 to +60 °C
• Protection class: IP68
• Authorizations: CE 2014/30/EU
• Battery type: 1 x CR2032
• Battery life: 80 h (Auto Off 10 min)
• Storage temperature: -20 to +70 °C
• Measuring range pH – Electrode : 0 to 14 pH
• Accuracy pH – Electrode: ±0.02 pH
• Resolution pH – Electrode: 0.01 pH
• Measuring range Temperature – NTC : 0 to +60 °C (Short-term to +80 °C max. 5 min)
• Accuracy Temperature – NTC: ±0.4 °C
• Resolution Temperature – NTC: 0.1 °C
