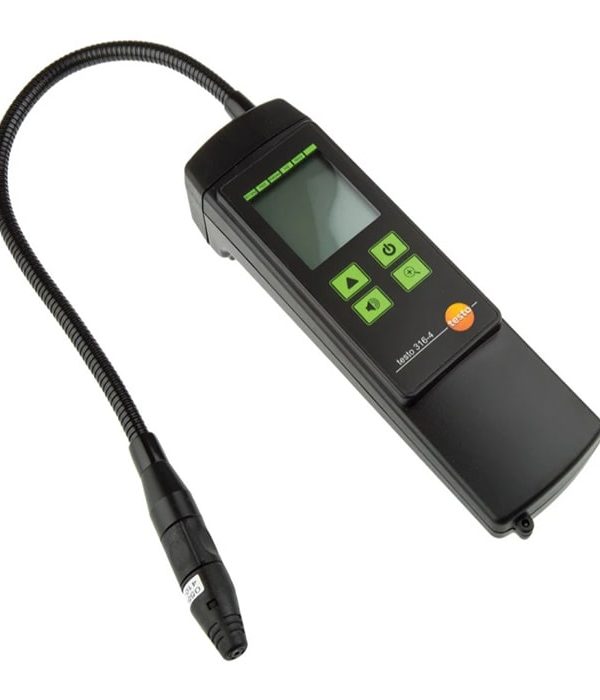

testo 316-4 – Leakage detector for refrigerants

testo 316-4 – Leakage detector for refrigerants

Product no. 0563 3164

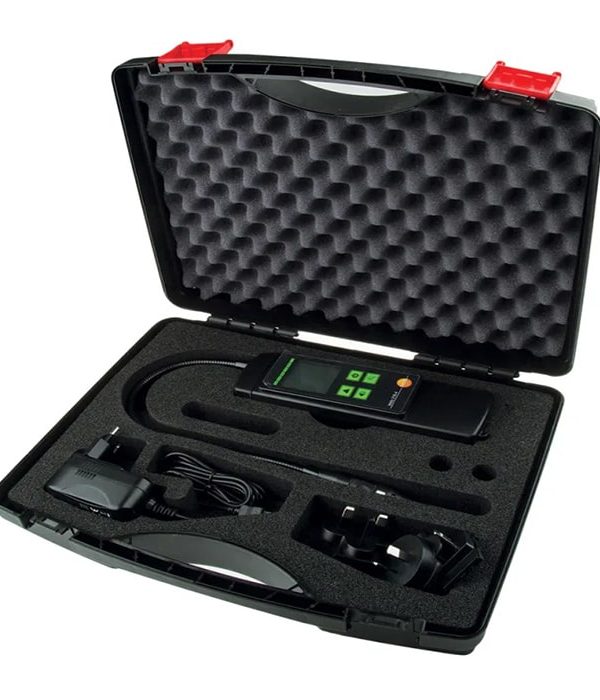

Everything you need for professional leakage detection. The testo 316-4 set 1 with leak detector is for all common refrigerants, CFC, HFC, HCFC, and H2, and includes a refrigerant sensor head, case, mains unit, and earphones. You will be ideally equipped to carry out quick, reliable leakage detection.

Leaks on a refrigeration system or heat pump have serious consequences. A leaking system no longer provides its required cooling capacity, and, in the worst-case scenario, system components can be damaged, not to mention the environmental damage and costs incurred by your customer. You need fast, reliable measuring instruments such as the Testo 316-4 leak detector, in order to be able to detect even the smallest of leaks.

testo 316-4 – Leakage detector for refrigerants Specifications :

• Operating humidity: 20 to 80 %rH
• Weight: 12.28 oz. / 348 g
• Reaction time: < 1 sec
• Dimensions : 7 x 2 x 2 in. / 190 x 57 x 42 mm
• Operating temperature : -4.0° to 122.0 °F / -20 to +50 °C
• Product color: Black
• Length of gooseneck: 14.567 in. / 370 mm
• Start-up time : <50 sec (0 … +50 °C); <50 sec (0 … +50 °C)
• Detectable: R134a; R22; R404A; H2 and all common refrigerants such as CFC, HCFC, HFC NH₃ (separate sensor head)
• Sensitivity : 3 g/a
• Leakage alarm: optical and audible alarm
• Standards: EN 14624:2012
• Alarm signal : rpm – Optical; audible
• Battery type: 1 battery block (6 cell NiMh)
• Storage temperature : -13.0° to 158.0 °F / -25 to +70 °C
