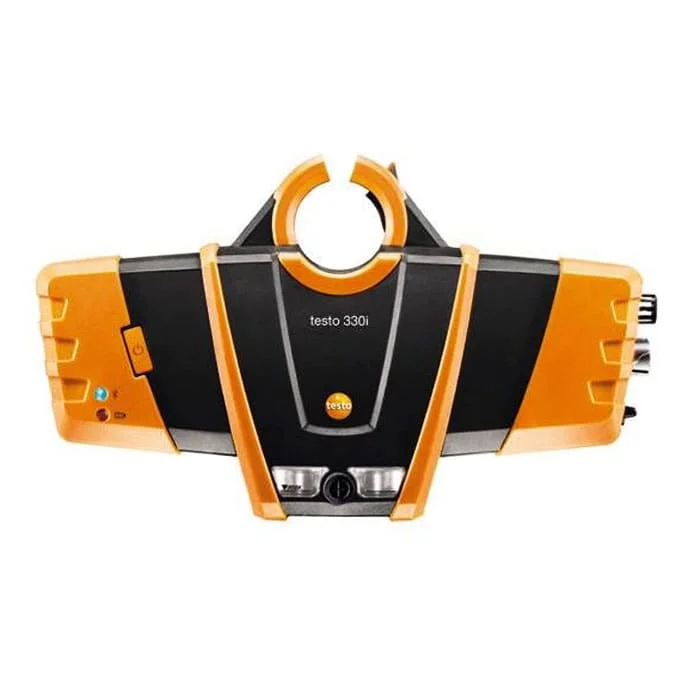

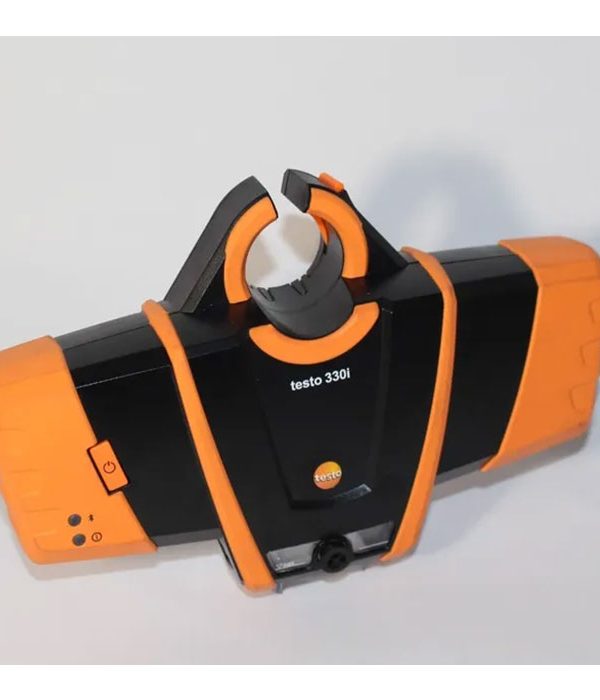

Testo 330i Flue Gas Analyzer

Testo 330i Flue Gas Analyzer (with H₂-compensated CO measuring cell)

Order-Nr. 0632 3000 70

In order to commission and service heating systems as quickly and thoroughly as possible, you need an appropriate flue gas analyzer. A measuring instrument that delivers accurate results, whose probe is firmly secured in the flue gas duct at all times, and which can also cope with larger systems or awkward measuring points without difficulty. A measuring instrument like the testo 330i Flue Gas Analyzer.

Embodying the current trends in flue gas analysis

The Testo 330i flue gas analyzer combines precision measuring technology with the innovative operation. Its H2-compensated CO sensor means that you can also use this version of the testo 330i to carry out official acceptance test measurements on heating systems.
At the core of the flue gas analyzer is the technology of the testo 330 LL, which has been proven in practice a thousand times over, with the following features:

• User-replaceable long-life sensors with a service life of up to 6 years. This saves at least one sensor replacement over the instrument’s typical useful life
• TÜV-tested according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
• Integrated draught and gas zeroing without removing the probe – the probe can remain in the flue during zeroing
• Fresh air dilution upon exceeding a CO threshold value of up to 30,000 ppm

The instrument’s completely redesigned method of operation is just as significant when it comes to your day-to-day work: the operation of the measuring instrument and the display and documentation of readings are implemented wirelessly via the testo 330i Flue Gas Analyzer App on your smartphone. The flue gas analyzer is easy to control remotely via Bluetooth, from a distance of up to 5 metres. Also, this means that you always have the system’s flue gas values to hand when needed. Once you have finished the measurement, you can add comments or photos to the protocol and send it to your customer or the office via e-mail.

Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0.

To get more information please contact us through mme.

Testo 330i Flue Gas Analyzer (with H₂-compensated CO measuring cell) specifications:

General technical data :

• Weight: 720 g (excluding battery)
• Dimensions : 270 x 160 x 57 mm
• Operating temperature: -5 to +45 °C
• Power supply: Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)
• System requirements: requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
• Maximum Memory: 500000 readings
• Storage temperature: -20 to +50 °C

Differential Pressure – Piezoresistive :

• Measuring range: Measuring range
• Accuracy :±0.5 hPa (0.0 to +50.0 hPa)±1 % of mv (+50.1 to +100.0 hPa)±1.5 % of mv (Remaining Range)
• Resolution: 0.1 hPa
