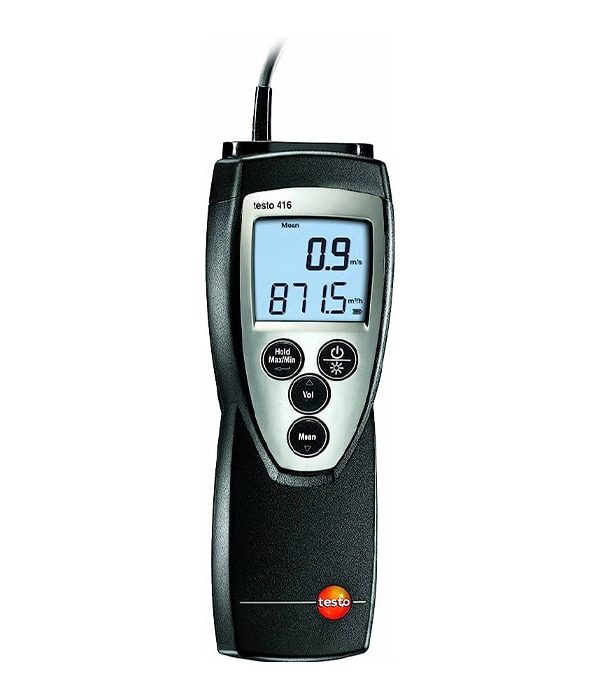

Testo 416 Vane Anemometer

Overview

The Testo 416 vane anemometer provides quick and reliable readings of airflow on an easy-to-read, backlit display. Its permanently attached telescopic sensor, which extends to a maximum length of 890 mm, together with the 16 mm mini impeller, make the anemometer ideal for measuring air velocity and volume flow inside ventilation ducts.

To calculate air volume, simply enter the air duct area into the instrument: selective values and time averages then show the average air volume. The testo 416 mini vane anemometer also has a freeze function, which holds the last measurement, and lets you view the min/max readings at the touch of a button, keeping duct measurements fast and convenient.

Key Features

• Mini 16 mm impeller ideal for measuring inside ventilation ducts

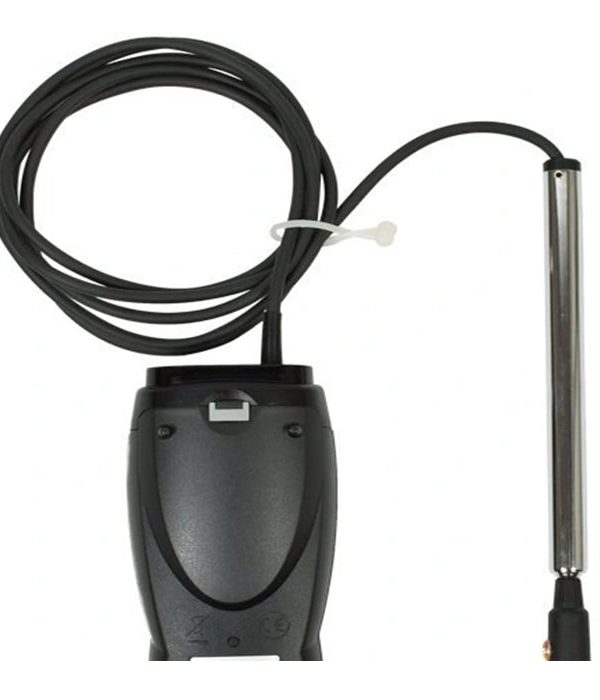

• Permanently attached telescope extending to 890 mm
• Wide velocity range 0.6 to 40 m/s with backlit display
• Volume flow calculation from entered duct area with time averaging
• Freeze function plus min/max readings at the touch of a button
• Robust handheld design with simple 9 V battery operation

Applications

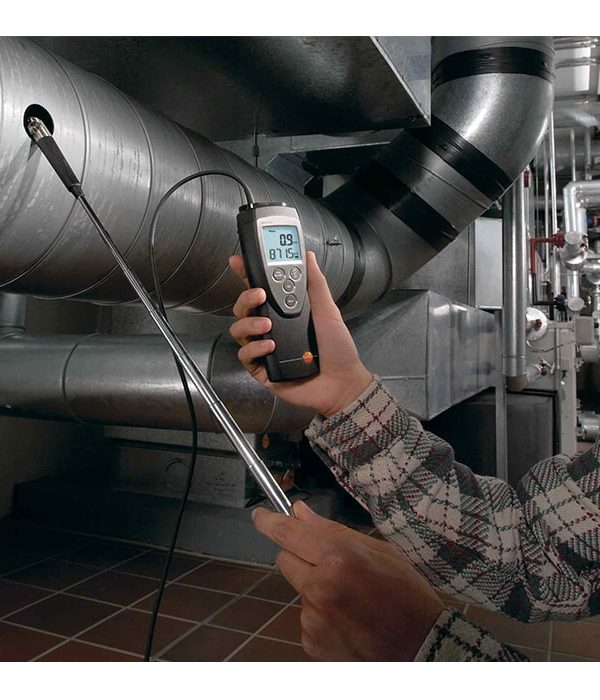

• Air velocity and volume flow measurement in ventilation ducts
• HVAC commissioning, balancing and service
• Duct airflow checks in hard-to-reach positions
• Averaged volume flow assessment across a duct cross-section

What’s in the Box

• testo 416 mini vane anemometer with telescopic probe
• 9 V block battery
• Calibration protocol
