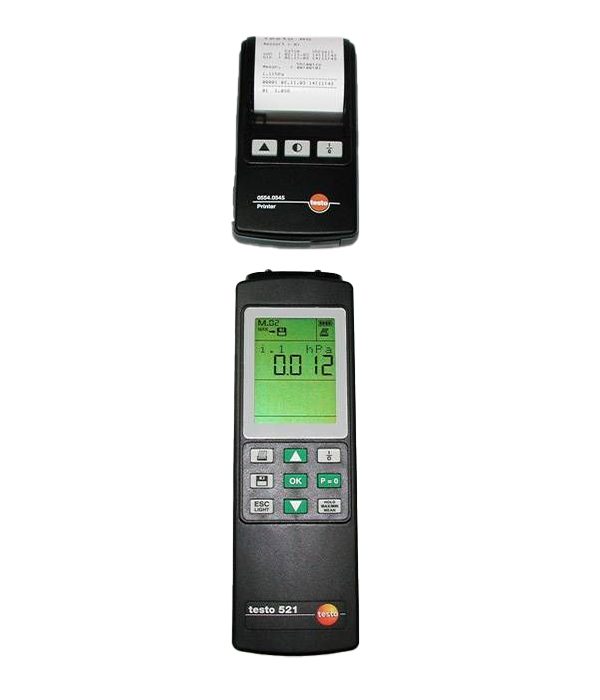

TESTO 521-1 differential pressure measuring instrument 0.2 % of f.v.

TESTO 521-1 differential pressure

Order-Nr.  0560 5210

The testo 521-1 differential pressure measuring instrument is targeted at precise differential pressure measurements in air conditioning and ventilation technology. It is excellent for use in measuring the pressure drop on filters and in checking fans and extractors. The measuring instrument is also suitable for Pitot tube measurements in ventilation ducts or in process air (in the 5 to 100 m/s range).

TESTO 521-1 differential pressure measuring instrument 0.2 % of f.v. specifications :

Temperature – NTC :

• Measuring range: -40 to +150 °C
• Accuracy  :±0.2 °C (-10 to +50 °C)±0.4 °C (Remaining Range)
• Resolution: 0.1 °C

Temperature – TC Type K (NiCr-Ni) :

• Measuring range: -200 to +1370 °C
• Accuracy :±0.4 °C (-100 to +200 °C)±1 °C Remaining Range
• Resolution: 0.1 °C

General technical data :

• Dimensions : 219 x 68 x 50 mm
• Operating temperature : 0 to +50 °C
• Product-/housing material: ABS
• Channels: 2 external; 1 internal
• Measuring rate: 0.04 s
