TESTO 521-3 Differential pressure measuring instrument up to 2.5 hPa - Image 1
TESTO 521 3 Differential pressure measuring instrument up to 2.5 hPa
TESTO 521 3 Differential pressure measuring instrument up to 2.5 hPa
Click to enlarge
    TESTO 521-3 Differential pressure measuring instrument up to 2.5 hPa
    TESTO 521 3 Differential pressure measuring instrument up to 2.5 hPa
    TESTO 521 3 Differential pressure measuring instrument up to 2.5 hPa

    TESTO 521-3 Differential pressure measuring instrument up to 2.5 hPa

    Compare
    2 Comments

    Measure up to 2.5 hPa precisely with the TESTO 521-3. Ideal for accurate HVAC diagnostics.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 0560-5213 Categories: ,
    Brand:Testo

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

    TESTO 521-3 Differential pressure

    Order-Nr.  0560 5213

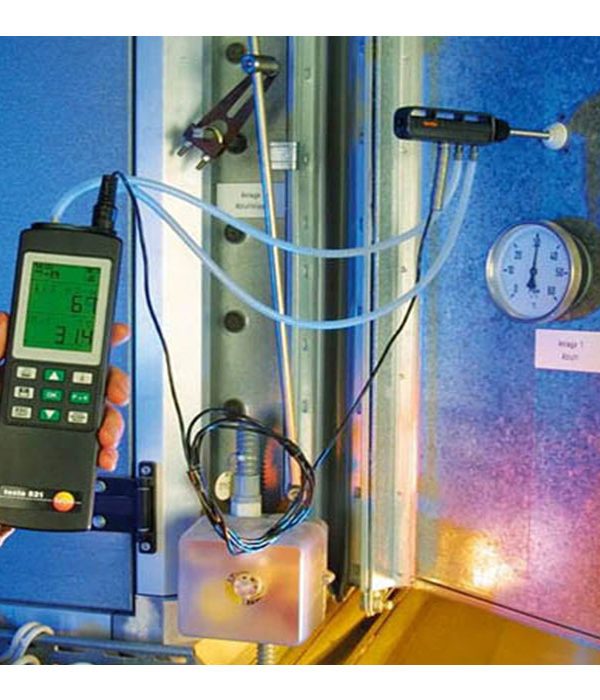

    The testo 521-3 differential pressure measuring instrument is designed for high-precision differential pressure measurements in air conditioning and ventilation technology. It can be used, for example, for measurements in clean rooms and for flue inspections – thanks to a high level of accuracy and outstanding resolution. In conjunction with a Pitot tube (optional), the integrated pressure sensor measures flow velocities of +1 to +20 m/s.

    TESTO 521-3 Differential pressure measuring instrument up to 2.5 hPa specifications :

    Temperature – NTC :

    • Measuring range: -40 to +150 °C
    • Accuracy :±0.2 °C (-10 to +50 °C)±0.4 °C (Remaining Range)
    • Resolution: 0.1 °C

    Temperature – TC Type K (NiCr-Ni) :

    • Measuring range: -200 to +1370 °C
    • Accuracy :±0.4 °C (-100 to +200 °C)±1 °C (Remaining Range)
    • Resolution: 0.1 °C

    Differential pressure (internal sensor) – Piezoresistive :

    • Measuring range : 0 to 2.5 hPa
    • Accuracy :±0.5 Pa (0 to 20 Pa)±(0.5 Pa ±0.5 % of mv) (20.1 to 250 Pa)
    • Resolution: 0.1 Pa
    • Static pressure: 1000 hPa
    • Overload: 50 hPa
    • Zeroing: to 0.5 hPa
    Data Sheet

    Data Sheet

    Data Sheet

    specifications

    specifications

    Category Parameter Specification
    Temperature – NTC
    Temperature Measuring Range -40 to +150 °C
    Temperature Accuracy ±0.2 °C (-10 to +50 °C)
    ±0.4 °C (remaining range)
    Temperature Resolution 0.1 °C
    Temperature – TC Type K (NiCr-Ni)
    Temperature Measuring Range -200 to +1370 °C
    Temperature Accuracy ±0.4 °C (-100 to +200 °C)
    ±1 °C (remaining range)
    Temperature Resolution 0.1 °C
    Differential Pressure (Internal Sensor) – Piezoresistive
    Pressure Measuring Range 0 to 2.5 hPa
    Pressure Accuracy ±0.5 Pa (0 to 20 Pa)
    ±(0.5 Pa ±0.5 % of mv) (20.1 to 250 Pa)
    Pressure Resolution 0.1 Pa
    Pressure Static Pressure 1000 hPa
    Pressure Overload 50 hPa
    Pressure Zeroing to 0.5 hPa
    Reviews (2)
    5
    2 reviews
    1
    0
    0
    0
    0

    2 reviews for TESTO 521-3 Differential pressure measuring instrument up to 2.5 hPa

    Clear filters

    1. Jinu –

      very good instrument for Differential pressure measuring

      0
      0

    2. mohammadjasem –

      The TESTO 521-3 offers precise differential pressure measurements and is incredibly easy to use!

      0
      0
    Add a review
    Read more
