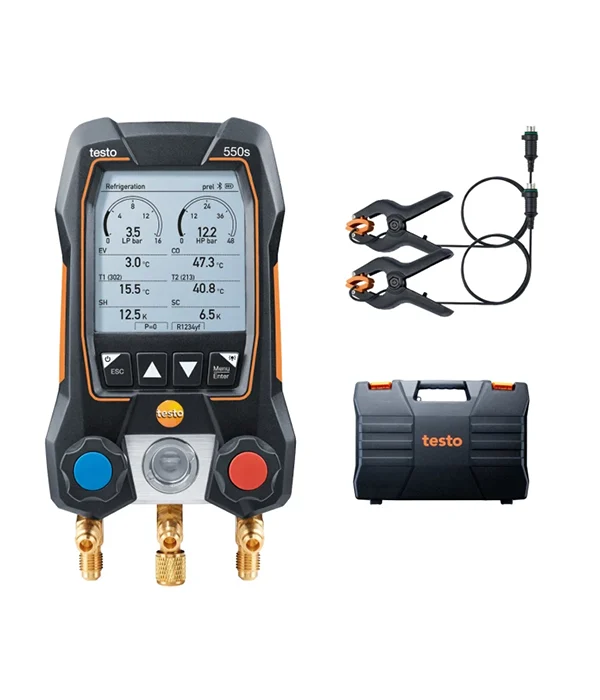

testo 550s Basic Kit - Smart digital manifold with fixed cable clamp temperatureprobes (with sightglass)

Comprehensive Guide to the Testo 550s Basic Kit: The Smart Digital Manifold for HVAC Professionals

In the demanding world of HVAC/R (Heating, Ventilation, Air Conditioning, and Refrigeration) maintenance and installation, precision, speed, and safety are paramount. The Testo 550s Basic Kit represents a significant leap forward in diagnostic technology, combining rugged durability with advanced smart features. This high-quality digital manifold is designed to streamline complex processes, ensuring that engineers and technicians can handle a wide variety of refrigerants with unmatched efficiency. This article provides an in-depth analysis of the Testo 550s Basic Kit, exploring its features, functionality, and the tangible benefits it brings to professional workflows.

Revolutionizing Refrigeration Diagnostics with Smart Technology

The Testo 550s is not just a digital manifold; it is a comprehensive diagnostic tool engineered to simplify the toughest jobs on site. It replaces the need for multiple separate instruments by integrating pressure measurement, temperature profiling, and leak detection into a single, ergonomic device. For professionals working with fixed cable clamp temperature probes, this kit offers immediate readiness and reliable data capture without the hassle of loose accessories.

One of the defining characteristics of the Testo 550s is its rugged construction. Built to withstand the bumps and drops of daily job site life, the instrument is protected by a durable rubberized casing. Despite its robust exterior, the internal technology is sophisticated. It operates on an intuitive menu structure, allowing for quick access to measuring modes and data storage, reducing the time spent navigating complex settings.

Key Components of the Testo 550s Basic Kit

The Basic Kit is specifically curated to provide the essential tools required for standard refrigeration system checks and maintenance. The core components include:

• The Digital Manifold Block: The heart of the system, featuring two valves for pressure connection and an integrated 60-bar pressure measurement system.
• Fixed Cable Clamp Temperature Probes: These probes are essential for accurate superheat and subcooling calculations. The “fixed cable” design ensures durability and prevents cable loss, while the clamp design allows for secure attachment to pipes, ensuring optimal thermal contact.
• Sightglass: Integrated into the manifold, the sightglass allows for visual verification of the refrigerant state, enabling technicians to detect moisture bubbles or flow issues instantly.
• Wireless Connectivity Module: Although the Basic Kit focuses on core hardware, the 550s is designed for Bluetooth connectivity (when paired with the Testo Smart App), allowing for remote monitoring and documentation.

Superior Measurement Accuracy and Efficiency

When dealing with modern refrigerants and complex systems, accuracy is non-negotiable. The Testo 550s delivers high-quality measurement results that technicians can rely on. The integrated pressure measurement is precise, allowing for rapid detection of pressure drops or imbalances. However, the true power of this manifold lies in its temperature measurement capabilities.

The fixed cable clamp temperature probes are engineered for fast response times. By securely clamping these probes to the refrigerant lines, the device can calculate critical metrics such as superheat and subcooling in real-time. This eliminates the guesswork associated with analog gauges and ensures that systems are charged with the exact amount of refrigerant required, optimizing energy efficiency and system longevity.

The Advantages of the Sightglass Feature

While digital sensors provide numerical data, the human eye remains a vital diagnostic tool. The Testo 550s Basic Kit includes a sightglass, a feature that many technicians consider indispensable. The sightglass allows for the visual inspection of the refrigerant flowing through the manifold. This is particularly useful for:

• Detecting Moisture: Seeing bubbles or cloudiness can indicate moisture contamination within the system, which requires immediate evacuation and drying before further charging.
• Observing Oil Return: Checking for consistent oil flow helps prevent compressor failure.
• Verifying Flow: Ensuring the refrigerant is moving as expected through the system during operation.

The combination of digital precision and visual verification makes the Testo 550s a dual-threat diagnostic powerhouse.

Seamless Integration with the Testo Smart App

Although the Basic Kit emphasizes the physical hardware, the Testo 550s is built with the future of HVAC diagnostics in mind. The instrument is equipped with Bluetooth technology, enabling it to connect wirelessly to the Testo Smart App on smartphones and tablets. This connectivity transforms how technicians work:

• Remote Monitoring: Start a measurement and step away. The app allows you to monitor system performance from a distance, keeping you safe from moving parts or hazardous environments.
• Smart Documentation: The app automatically calculates superheat and subcooling and stores the data. Technicians can create professional reports on-site, including customer signatures, and share them via email instantly.
• Guided Workflows: The app offers step-by-step instructions for common tasks like heat pump commissioning or refrigerant charging, ensuring no steps are missed.

Rugged Design for Professional Environments

The Testo 550s is designed with the reality of the field in mind. It features a rugged, rubberized casing that protects the instrument against impacts. This is crucial for technicians who frequently move between rooftops, basements, and mechanical rooms. The manifold valves are protected by plastic pockets, ensuring that the sealing faces remain undamaged even if the unit is dropped.

Additionally, the instrument is rated IP54, making it resistant to dust and splashing water. This durability ensures that the Testo 550s remains a reliable partner regardless of the weather conditions or the dirty nature of the job site.

High-Visibility Display and User Interface

Working in poorly lit basements or bright outdoor settings can make reading gauges difficult. The Testo 550s addresses this with a high-contrast, backlit display. The display is designed to show all relevant measurements simultaneously—pressure on one side, temperature on the other, and calculated values like superheat/subcooling clearly visible.

The user interface is menu-driven and intuitive. With just a few buttons, users can switch between different refrigerants (R410A, R404A, R407C, R134a, R407F, R448A, R449A, R32, R454C, R454B, and many more), toggle between °C and °F, and access data memory. This ease of use minimizes training time and reduces the risk of operator error.

Refrigerant Management and Safety

Handling refrigerants involves strict adherence to safety protocols and environmental regulations. The Testo 550s aids in compliant and safe work practices. By enabling precise charging, it helps prevent the release of refrigerants into the atmosphere. The robust valves ensure tight connections, preventing leaks during the measurement process. Furthermore, the ability to wirelessly monitor pressures means the technician does not have to stand directly over the manifold during system startup, reducing exposure to potential high-pressure hazards.

The manifold is compatible with the most common refrigerants currently in use. With the Testo Smart App, the database is updated regularly, ensuring that the tool remains relevant as new, low-GWP (Global Warming Potential) refrigerants are introduced to the market.

Battery Life and Operational Continuity

Professional tools need to work as long as the technician does. The Testo 550s is powered by rechargeable batteries that offer extended operation time. The instrument features a clear battery status indicator, so technicians are never caught off guard by a dead tool mid-job. The inclusion of a magnetic backing allows the manifold to be mounted securely on metal surfaces, freeing up the technician’s hands for other tasks.

Why the Basic Kit is Ideal for Your Toolkit

The “Basic Kit” configuration is perfect for technicians who require the core functionalities of a digital manifold without the immediate need for additional clamp probes or vacuum adapters. The fixed cable clamp probes included in this kit are the workhorses of temperature measurement. They are designed to stay attached to the pipes securely during long periods of monitoring.

For HVAC/R contractors focusing on installation, maintenance, and troubleshooting of air conditioning and refrigeration systems, the Testo 550s Basic Kit provides a balanced mix of essential features and professional durability. It serves as a reliable primary instrument or a robust backup to more complex equipment.

Comparison with Analog Manifolds

Transitioning from analog to digital with the Testo 550s offers immediate benefits:

• Elimination of Parallax Error: No more reading the needle position from an angle and getting it wrong.
• No Mercury/Fluid Risks: Digital sensors are safer and do not use oil or mercury, which can contaminate systems or the environment.
• Automatic Calculations: Manual conversion tables for superheat and subcooling are time-consuming and prone to error. The Testo 550s does the math instantly.

Maintenance and Calibration

To maintain the high-quality performance of the Testo 550s, regular calibration is recommended. Testo offers a Certificate of Calibration, providing proof of accuracy for quality management systems. The instrument is designed for easy maintenance; the hoses are replaceable, and the battery can be swapped out in the field. The ruggedness of the design means that consumable parts last longer, reducing the total cost of ownership over the life of the tool.

Conclusion: Elevate Your Diagnostic Capabilities

The Testo 550s Basic Kit – Smart digital manifold with fixed cable clamp temperature probes (with sightglass) is a top-tier investment for serious HVAC professionals. It bridges the gap between rugged analog reliability and the precision of modern digital technology. By combining pressure measurement, temperature clamping, visual inspection via the sightglass, and smart app integration, it offers a holistic solution to refrigeration diagnostics.

Adopting this tool allows technicians to work faster, charge systems more accurately, diagnose faults with greater confidence, and present professional documentation to clients. In an industry where efficiency and accuracy directly impact profitability and customer satisfaction, the Testo 550s stands out as an essential piece of equipment for the modern toolkit.
