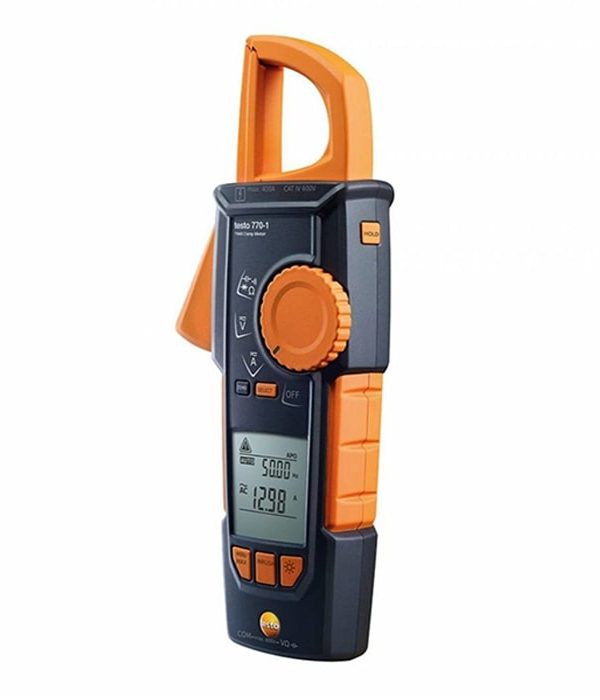

Testo 770-1 True-RMS Clamp Meter – 400 A AC/DC, 600 V, Inrush
3 Comments
Measure currents up to 400 A accurately with the Testo 770-1. Perfect for precise electrical diagnostics.
Terms of sending goods ›
AED 540 (excl.VAT)
Order Via phone number
Order Via Online Form
In Stock
Description
Order-Nr. 0590 7701

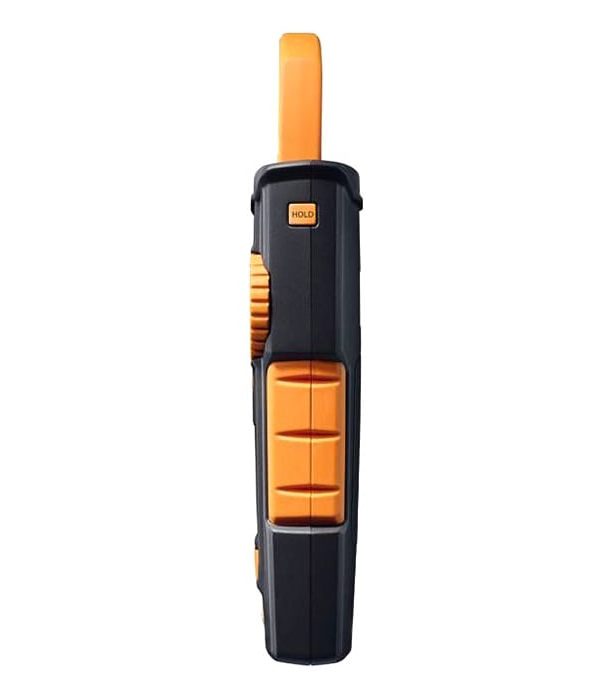

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.
The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctl.
Testo 770-1 Clamp Meter Key features
Built for maintenance, commissioning, and troubleshooting, 770-1 covers core ranges plus resistance, continuity, diode, capacitance, and frequency—reducing tool swaps on site.
- Measure faster with fewer steps: auto AC/DC + clear dual-line display.
- Clamp safely in tight cabinets: patented slide/hook jaw isolates one conductor.
- Capture starts/transients: inrush + True-RMS for accurate readings on non-linear loads.
- Everyday coverage: 400 A AC/DC, 600 V AC/DC, resistance to 40 MΩ, capacitance to 100 µF, frequency to 9.999 kHz.
- Pro-grade safety: CAT IV 600 V / CAT III 1000 V.
Contents of the Testo 770-1 clamp meter box
770-1 clamp meter, batteries, 1 set measuring leads (0590 0010), instruction manual.
Additional information
| clamp__meter__type |
AC/DC |
|---|---|
| max__current__ac (clamp meter) |
0-400 |
| max__current__dc (clamp meter) |
0-400 |
| max__voltage__ac (clamp meter) |
401-600 |
| max__voltage__dc (clamp meter) |
401-600 |
Datasheet
Datasheet
Technical data
Technical data
| Specification | Value |
|---|---|
| Operating humidity | 0 to 80 %RH |
| Weight | 378 g |
| Dimensions | 249 x 96 x 43 mm |
| Operating temperature | -10 to +50 °C |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Measuring range Frequency | 10 nF to 100.0 μF |
| Accuracy Frequency | ±(0.1 % + 1 Digit) |
| Resolution Capacitance | max. 0.01 nF |
| Measuring range Capacitance | 10 nF to 100.0 μF |
| Accuracy Capacitance | ± (1.5 % of mv + 5 Digit) |
| Resolution Resistance | max. 0.1 Ohm |
| Measuring range Resistance | 0.1 to 40.00 MOhm |
| Accuracy Resistance | ± (1.5 % of mv + 3 Digit) |
| Measuring range AC current | 0.1 to 400 A |
| Resolution AC current | max. 0.1 A |
| Accuracy AC current | ± (2 % of mv + 5 Digit) |
| Measuring range DC current | 0.1 to 400 A |
| Resolution DC current | max. 0.1 |
| Accuracy DC current | ± (2 % of mv + 5 Digit) |
| Measuring range AC voltage | 1.0 mV to 600.0 V |
| Resolution AC voltage | max. 1 mV |
| Accuracy AC voltage | ± (1.0 % of mv + 3 Digit) |
| Measuring range DC voltage | 1.0 to 600.0 V |
| Resolution DC voltage | max. 1 mV |
| Accuracy DC voltage | ± (0.8 % of mv + 3 Digit) |
