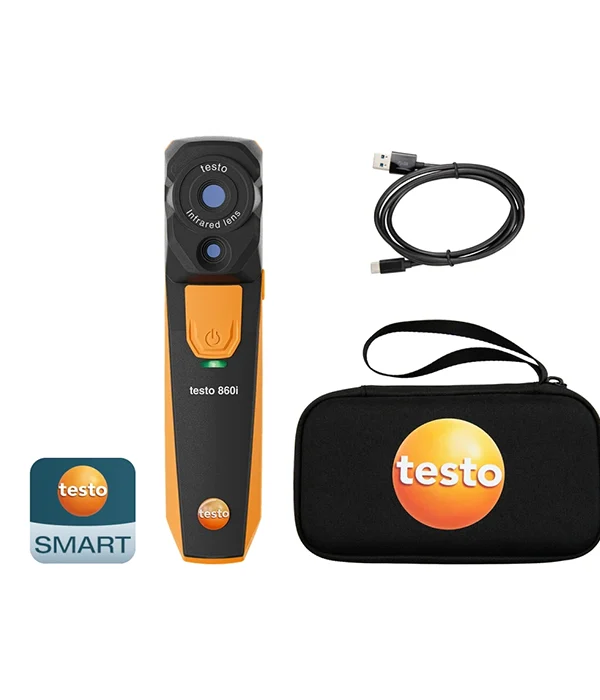

testo 860i kit – wireless thermal imaging camera with protective case

Testo 860i Kit: Wireless Thermal Imaging Camera with Protective Case

The Testo 860i Kit is a professional-grade thermal imaging camera designed for HVAC technicians, building inspectors, and industrial maintenance professionals. This specific kit combines the advanced features of the Testo 860i camera with the durability of a protective case, ensuring the device is ready for demanding field environments. As a wireless thermal imaging camera, it facilitates efficient workflows by allowing users to capture temperature data and transfer it remotely to smart devices for analysis and reporting.

Core Features of the Testo 860i

The Testo 860i is engineered to deliver precise thermal measurements and high-quality imagery. Its design focuses on usability and accuracy, making it a critical tool for identifying thermal anomalies in mechanical and electrical systems. The camera operates on a robust operating concept that allows for quick access to essential functions, reducing the time spent on diagnostics.

• IR Resolution: The camera features a thermal sensitivity (NETD) of less than 80 mK, allowing it to detect minute temperature differences. This high resolution ensures that even the smallest thermal bridges or insulation defects are visible.
• Manual Focus: Unlike autofocus systems that may struggle in complex environments, the Testo 860i utilizes a manual focus mechanism. This allows the user to achieve sharp images of specific measurement objects at varying distances, ensuring precise targeting.
• Digital Camera: Integrated into the device is a 3.1-megapixel digital camera. This visual camera aids in orientation and is overlaid with the thermal image in the Picture-in-Picture (PiP) mode, providing context to the thermal data.
• Wireless Connectivity: The device supports wireless communication via Bluetooth. This enables seamless connection to the Testo Thermography App on smartphones or tablets, facilitating real-time data transfer and remote control of the camera.

Thermal Imaging Capabilities

Thermal imaging is utilized to visualize surface temperatures, identifying issues that are not visible to the naked eye. The Testo 860i offers several operational modes to suit different inspection scenarios.

• Thermal Snapshots: The camera captures thermal snapshots that can be analyzed immediately or stored for later review. These images highlight hotspots and cold spots using color palettes such as iron red or rainbow.
• Measurement Functions: Users can configure specific measurement points (hot and cold spot detection) to monitor critical temperature thresholds. This is essential for electrical inspections where overheating components indicate potential failure.
• IFOV (Instantaneous Field of View): The IFOV ensures that the distance-to-spot ratio is accurate, allowing users to calculate the size of the measurement spot from a distance. This is vital for inspecting high-voltage equipment without physical contact.

Wireless Functionality and Connectivity

The “i” in the model name signifies intelligent connectivity. The Testo 860i is designed to integrate with the Testo Smart App, which transforms a smartphone or tablet into a secondary display and reporting tool.

• Remote Control: Via the app, users can adjust settings, trigger measurements, and capture images remotely. This is particularly useful when the camera is mounted on a tripod or positioned in hard-to-reach areas.
• Data Transfer: Images and measurement data are transferred wirelessly to the app, where they can be annotated with text or voice notes. This streamlines the documentation process.
• Report Generation: The app allows for the creation of professional PDF reports on-site. Users can include thermal images, visual images, and measurement data tables, which can be emailed directly to clients or stored in the cloud.

The Protective Case: Durability and Portability

One of the defining aspects of this kit is the inclusion of a protective case. Industrial environments can be harsh, with dust, moisture, and physical impacts posing risks to sensitive electronic equipment. The protective case included in the Testo 860i Kit is designed to mitigate these risks.

• Impact Resistance: The case provides a rigid shell that absorbs shocks, protecting the camera’s lens and internal components from accidental drops.
• Organized Storage: The interior of the case is typically molded to fit the camera and its accessories securely. This prevents movement during transport and ensures that all components, such as the USB-C cable and charging adapter, are kept together.
• Environmental Protection: By sealing against dust and moisture, the case extends the lifespan of the camera, making it suitable for transport in work vans or storage in toolboxes.

Build Quality and Ergonomics

The Testo 860i is designed with a focus on ergonomics to ensure comfort during long inspection days. The device features a pistol-grip design that stabilizes the hand during image capture. The controls are intuitively placed, allowing users to operate the camera with one hand.

• Display: The camera is equipped with a high-resolution 3.2-inch touchscreen display. The interface is designed to be intuitive, with swipe gestures for image review and pinch-to-zoom functionality.
• Battery Life: Powered by a rechargeable Li-ion battery, the Testo 860i ensures long operation times. The USB-C charging interface allows for easy charging via power banks or standard wall outlets.
• Robust Housing: The casing is engineered to withstand the rigors of daily professional use. It meets industrial standards for durability, ensuring reliability in varied climatic conditions.

Applications of the Testo 860i Kit

The versatility of the Testo 860i makes it an essential tool across various industries. Its ability to visualize thermal data helps professionals diagnose issues quickly and accurately.

HVAC and Refrigeration

In the HVAC sector, the camera is used to verify the performance of heating and cooling systems. Technicians can inspect ductwork for insulation leaks, check radiator functionality, and analyze the temperature distribution of underfloor heating systems. In refrigeration, it is used to detect refrigerant leaks and inspect insulation integrity.

Building Envelope Inspection

Building inspectors use the Testo 860i to identify thermal bridges—areas where heat escapes from a building. This is crucial for energy efficiency assessments and retrofitting projects. The camera helps visualize dampness and mold risks by detecting temperature differences on walls and ceilings.

Electrical Maintenance

Electrical systems require regular inspection to prevent failures and fires. The Testo 860i allows for non-contact measurement of live components. Technicians can identify overheating connections, overloaded circuits, and failing components from a safe distance, ensuring compliance with safety standards.

Technical Specifications Overview

Understanding the technical capabilities of the Testo 860i is essential for professionals evaluating its suitability for their specific needs. The specifications are designed to meet industry standards for thermography.

• Thermal Sensitivity (NETD): < 80 mK
• Field of View (FOV): Standard wide-angle lens suitable for most industrial applications.
• Image Display: Combination of thermal and digital image overlay (PiP).
• Storage: Internal memory capable of storing hundreds of images, expandable via app integration.
• Software Compatibility: Compatible with Testo IRSoft professional analysis software for detailed report generation.

Comparing the Testo 860i Kit

When selecting a thermal imaging camera, the Testo 860i Kit stands out due to its balance of performance and practicality. While the camera body provides high-end imaging capabilities, the inclusion of the protective case adds significant value by safeguarding the investment. Compared to entry-level thermal cameras, the 860i offers superior image quality and a more comprehensive software ecosystem.

For professionals who require reliable thermal data without the complexity of industrial-grade imagers, the Testo 860i hits the sweet spot. It offers the necessary features for documentation and analysis while maintaining a user-friendly interface. The wireless capabilities further distinguish it from older models, aligning with modern workflows that rely on mobile technology.

Best Practices for Using the Testo 860i

To maximize the effectiveness of the Testo 860i, users should adhere to best practices in thermography.

• Emissivity Settings: Always adjust the emissivity setting on the camera to match the material being measured. This ensures accurate temperature readings.
• Distance and Angle: Maintain a perpendicular angle to the target surface to avoid reflection errors. Use the distance-to-spot ratio to ensure the measurement area is not too large.
• Environmental Factors: Account for environmental conditions such as wind, sunlight, and ambient temperature, as these can influence surface temperature readings.
• Regular Calibration: While the Testo 860i is factory-calibrated, regular checks ensure continued accuracy. Professional calibration services are recommended annually for critical applications.

Conclusion

The Testo 860i Kit – Wireless Thermal Imaging Camera with Protective Case is a comprehensive solution for modern thermal inspections. Its combination of high-resolution imaging, wireless connectivity, and robust physical protection makes it a reliable partner for professionals. By leveraging the Testo ecosystem, users can streamline their workflow from capture to report, saving time and improving the quality of their diagnostics. Whether for HVAC maintenance, building inspections, or electrical checks, this kit delivers the performance and durability required in the field.
