Testo 890 Thermal Imager X6
Short Description:
Testo 890 Thermal Imager X6 Key Features:
- testo 890 professional thermal imager: resolution 640 × 480 pixels, upgradable to 1280 × 960 pixels with SuperResolution technology, thermal sensitivity < 40 mK
- Three lenses included in the kit: super-telephoto lens and 2 additional lenses (standard, 25° or telephoto lens) which you are free to choose
- Sequence capturing in the instrument a possible option, humidity calculation, SiteRecognition, panorama image assistant, JPEG storage function and other practical features

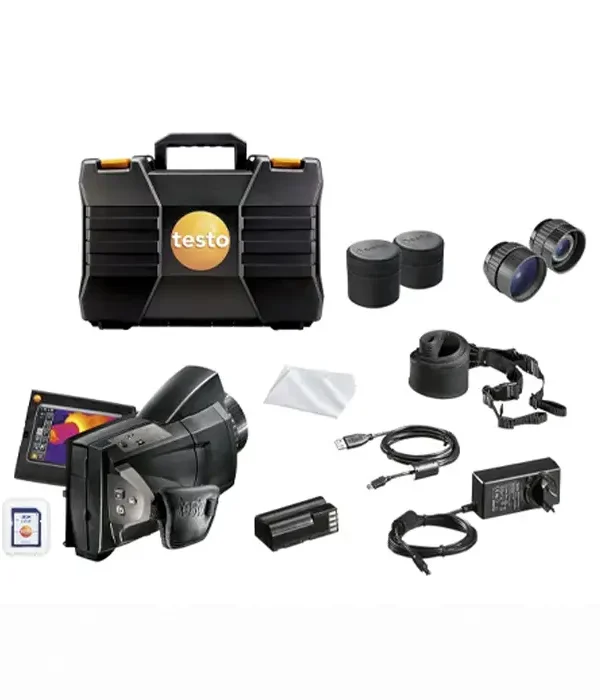

- The kit contains essential accessories, which you will always have to hand: robust case and lens case, spare rechargeable battery, fast battery charger, SD card, lens protective glass, etc.
Product purchase
AED 86,816 (excl.VAT)
16
People watching this product now!
Terms of sending goods ›
Description

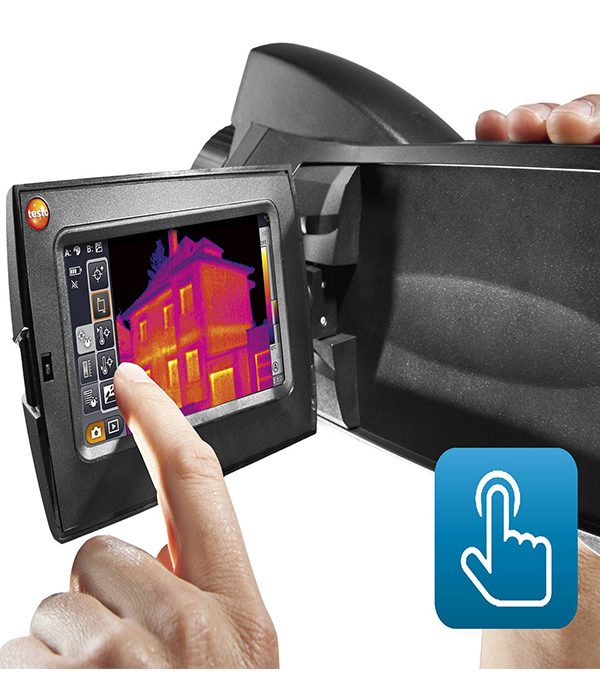

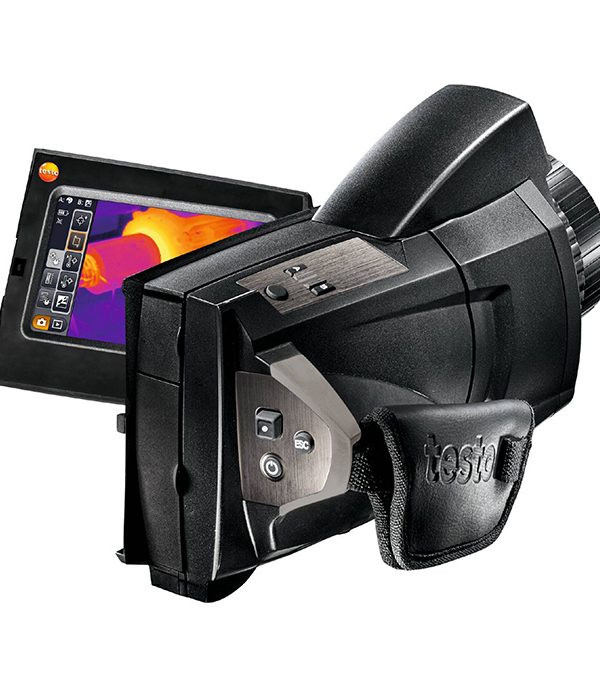

Testo 890 Thermal Imager X6
Order-Nr. 0563 0890 X6
This professional thermal imager with a super-telephoto lens and two additional lenses (free choice between standard, 25°, and telephoto lens) can be used for the following measuring tasks:
- Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance
- Pinpointing hotspots in solar parks (to locate defective cells)
- Detecting irregularities in large industrial plants
- Safe high-temperature measurement

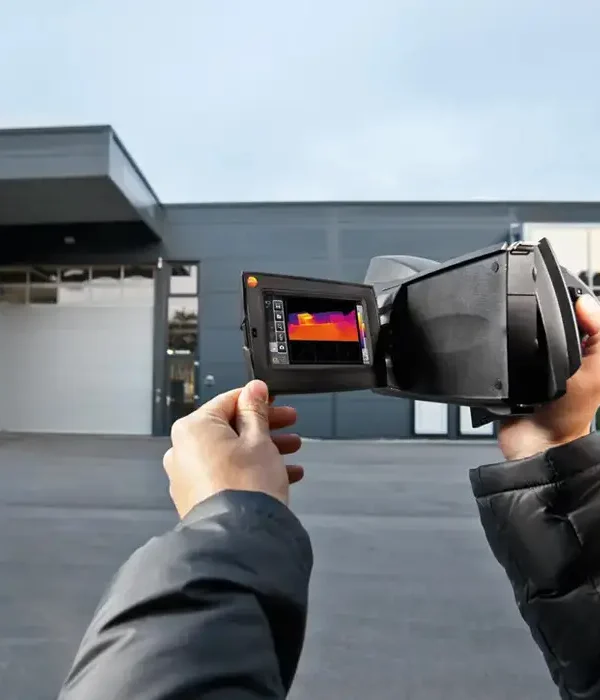

- Analysis of building shells at a glance
- Detecting critical temperatures on circuit boards
- Regular checks in electrical maintenance
- Analysis of energy distribution systems
- Carrying out detailed energy consultations
Testo 890 Thermal Imager X6 Specifications:
Termovisores Garantia
- EU-/EG-guidelines: 2004/108/EG
Infrared image output
- Infrared resolution : 640 x 480 pixels
- Thermal sensitivity : ˂ 40 mK at +30 °C
- Field of view : 42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele)
- Minimum focus distance: 0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele)
- Geometric resolution (IFOV): 1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele)
- SuperResolution (Pixel) : 1280 x 960 pixels
- SuperResolution (IFOV) : 0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele)
- Image refresh rate: 33 Hz
- Focus: auto/manual
- Power-LED: Included
- Process analysis package: Optional
- JPEG storage: included
- Video measurement: up to 3 measurement points
- Voice recording: Bluetooth/wired headset
- Panorama image assistant: Included
- SiteRecognition: Included
- Exchangeable lenses : 25° x 19°; 15° x 11°; 6.6° x 5°
- Standard lens: 42° x 32°
- Digital camera: Included
- Interface: Labview; free download from the homepage; USB
- Fever detection: Optional
- Laser: Laser marker
- Video streaming: via HDMI
Additional information
| Dimensions |
253 x 132 x 111 mm |
|---|---|
| Power |
Fast-charging, Li-ion battery can be changed on-site |
| Infrared Resolution |
640 x 480 |
| Spectral range |
7.5 to 14 µm |
| Thermal sensitivity |
< 40 mK |
| Color pallete |
Iron, rainbow, rainbow HC, cold-hot, bluered, grey, inverted grey, sepia, Testo, iron HT |
| image file format |
bmt;.bmp, .jpg,.png, .csv, .xls |
| Measurment Accuracy |
± 2 °C or ± 2 %, whichever is greater |
| Measurment correction |
0.01 to 1 / manual |
| Temperature range |
-30 to +100 °C |
Data sheet
