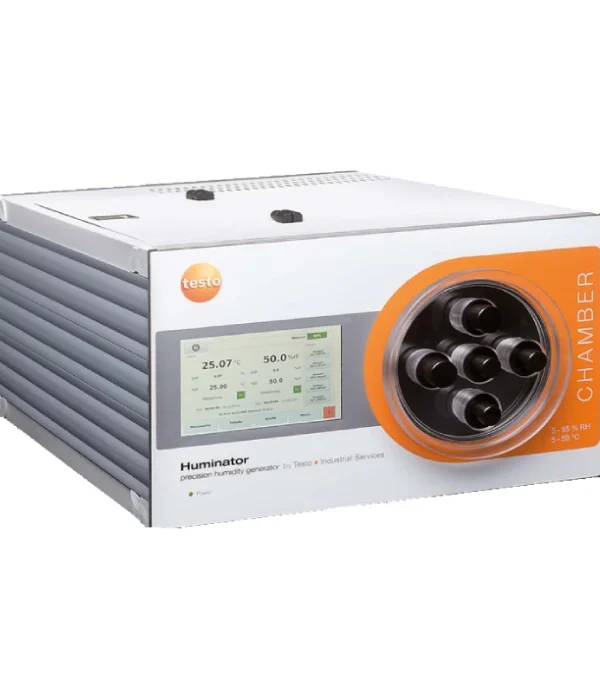

Testo Huminator II Humidity Generator

Brand: Testo
SKU: 123959
Share
  • Testo Huminator II – precision humidity and temperature generator for professional calibration

  • Compact and portable design with intuitive touch display

  • Large measuring chamber for simultaneous calibration of multiple probes and data loggers

  • Fast stabilization and reliable performance for industrial and lab use

  • Ideal solution for accurate and stable humidity calibration

  • Best price of Huminator II and option to buy Huminator II directly from mme-ae.com

  • Safe Buy
  • Fast Delivery
  • Original Guarantee
  • Online Payment

Specifications

 Huminator II Specifications

Parameter Temperature Humidity
Measuring and control range 5 to 50 °C 5 … 95 %RH
Stability ± 0.02 °C (at 25 °C; 50 %RH) ± 0.3 %RH (10 … 80 %RH at 10 … 40 °C)
± 0.5 %RH (remaining measuring range)
Probe accuracy at 25 °C ± 0.15 °C (0.27 °F) with PT1000 Class AA ± (1.0 %RH + 0.007 × measured value) for 0 … 90 %RH
Homogeneity ± 0.2 °C ± 0.5 %RH
Stabilization time 3 min (from 35 %RH to 80 %RH at 25 °C)
Ambient conditions 20 ± 5 °C
Typical total measuring uncertainty of the calibration (k=2) ± 0.2 °C (10 to 85 %RH at 25 °C)
± 0.5 °C (remaining measuring range)
± 1.5 %RH (10 to 85 %RH at 25 °C)
± 2.0 %RH (remaining measuring range)
General Data – Huminator II
Display Touchscreen
Number of probe slots 5
Interfaces USB, LAN
Power consumption (typical) 30 W to 250 W, max 500 W
AC input voltage / frequency 110 V to 230 V ±10 % | 50/60 Hz
Tank volume 200 ml
Water level indicator Fully automatic with graphic display
Display of measuring data Graphical and tabular
Control Manual or automatically programmable
Stabilization signal Visual and acoustic
Dimensions (D×W×H) 451 mm × 448 mm × 266 mm
482 mm × 448 mm × 290 mm (incl. attachments)
Measuring chamber size Diameter: 160 mm  |  Depth: 320 mm
Measuring chamber volume Approx. 4.2 L (inlet: 154 mm, depth to cooling element: 230 mm)
Weight 19 kg
