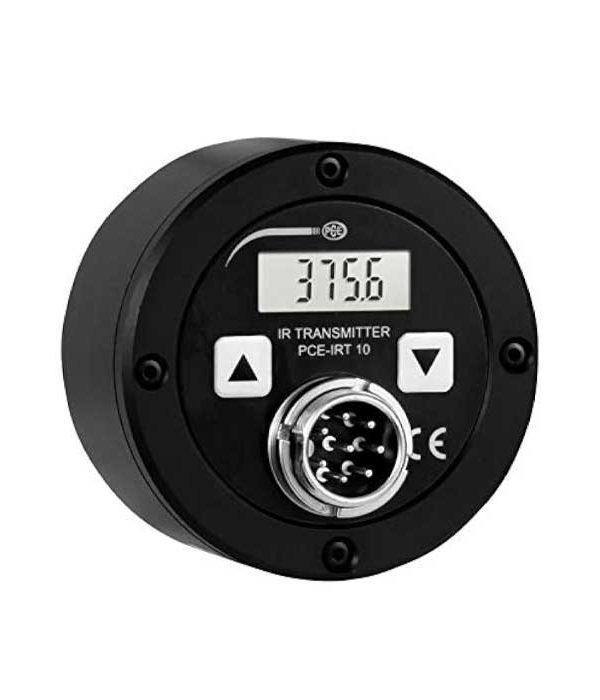

Thermometer PCE-IRT 10

Short Description:

The PCE-IRT10 thermometer is a device that is permanently installed, it has an output of 20-4 mA and a measurement range of 0-600 degrees Celsius / 1112-32 degrees Fahrenheit. Its distribution can be adjusted from 0.1 to 1000. The response time of this thermometer is very fast and takes only 150 milliseconds. Its supply voltage is 24-12 v.

Product purchase

SKU: 73875 Category:
Brand:Pce

AED 1,640 (excl.VAT)

19 People watching this product now!

Terms of sending goods ›

  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

Thermometer PCE-IRT 10

The PCE-IRT10 thermometer is a device that is permanently installed, it has an output of 20-4 mA and a measurement range of 0-600 degrees Celsius / 1112-32 degrees Fahrenheit. Its distribution can be adjusted from 0.1 to 1000. The response time of this thermometer is very fast and takes only 150 milliseconds. Its supply voltage is 24-12 v.
The thermometer has an analog output signal, and a bright display, for setting the emission value and automatic holding function. The display continuously shows the measured value.
PCE-IRT10 thermometer is made of stainless steel and has IP65 standards. A compact infrared sensor with a 90-degree angle is installed on it, which makes it possible for the device to be directly attached to machines and easily monitor vital processes.
The PCE-IRT 10 thermometer is easily available in your pocket from the MME website and you can buy it quickly.

Thermometer PCE-IRT 10 key features:

  • Measurements from 0 … 600°C / 32 … 1112°F
  • Including mounting bracket
  • Output signal: 4 … 20-mA
  • Easy operation and assembly
  • 150 ms response time
  • 3 m / 9.8 ft connection cable

Thermometer PCE-IRT 10 Specification :

  • Measuring range : 0 … 600°C / 32 … 1112°F
  • Measurement accuracy: ± 1.5°C / 2.7°F or 1% of the measured value,
    whichever is greater applies
  • Repeatability: ± 1°C / 1.8°F or 0.5% of the measured value,
    the higher value applies
  • Optical resolution : 20: 1
  • Output signal: 4 … 20-mA
  • Spectral sensitivity: 8 … 14 µm
  • Emissivity: Adjustable 0.100 … 1.000
  • Power supply: 12 … 24V DC max. 20-mA
  • Load: 500 ohms
  • Protection class: IP65
  • Material: Stainless steel
  • Operating temperature : 0 … 70°C / 32 … 158°F
  • Relative humidity: 10 … 85%
  • Measurement time: 150 ms
  • Display: LCD
  • Dimensions : Ø59.5 x 63.5 mm / 2.3 x 2.5 in
  • Weight: Approx. 200 g / < 1 lb

Datasheet

Mme-Pdfs-Image
