Emerson TREX AMS HART Device Communicator (LHPKLWS3S)

The Emerson TREX AMS HART Device Communicator represents the industry standard for portable HART protocol device configuration and process instrumentation management. This advanced HART communicator combines powerful processing capabilities with intuitive touchscreen operation, delivering comprehensive HART device commissioning, calibration, and maintenance solutions for process automation professionals. Engineered specifically for HART protocol applications, this device configurator provides reliable field instrument management across petrochemical, pharmaceutical, and manufacturing facilities.

TREX AMS HART Advanced Processing and Highway Addressable Remote Transducer Technology

Engineered with cutting-edge automation technology, the TREX AMS HART communicator features an 800 MHz ARM Cortex A8 processor with 512 MB DDR3 SDRAM and Windows Embedded Compact 2013 operating system. The large 5.7-inch color VGA resistive touchscreen (640×480 pixels) provides exceptional visibility for complex HART device configuration tasks in challenging industrial environments.

High-Performance Processing for Complex HART Device Management

The robust processing architecture includes 2 GB internal NAND flash and 32 GB extended flash memory, ensuring rapid application performance for extensive HART device database storage. This powerful configuration enables simultaneous management of multiple HART instruments while maintaining responsive user interface performance during demanding process control commissioning procedures.

Professional Touchscreen Interface for HART Protocol Applications

The resistive touchscreen design functions reliably with gloved hands in process instrumentation environments, complemented by physical navigation buttons including X button, four arrow keys, and checkmark enter key for precise HART device parameter navigation when touchscreen operation is impractical during field service activities.

TREX AMS HART LHPKLWS3S Protocol Communication Excellence and Device Configuration

Comprehensive HART Protocol Analyzer and Device Management

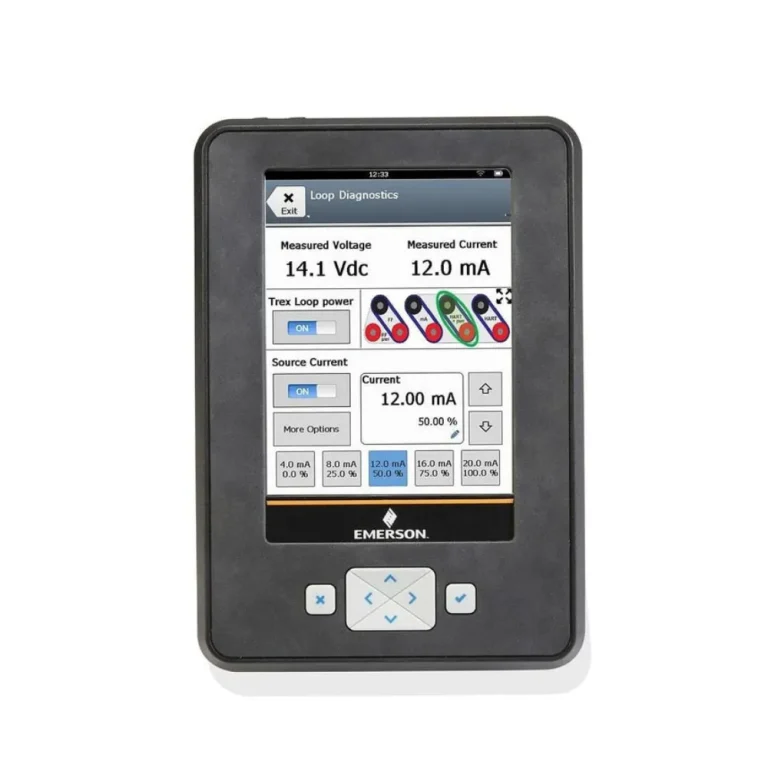

The dedicated HART communication module provides complete support for Highway Addressable Remote Transducer protocol devices through professional banana jack connectors. Advanced HART features include optional internal resistors (250 or 500 Ohm), integrated power supply for bench testing, and current measurement capabilities up to 22.5 mA with 0.1 mA resolution for precise HART device diagnostics.

Advanced HART Device Configuration and Calibration Functions

Comprehensive HART device management includes device identification, parameter configuration, calibration adjustment, and diagnostic testing. The HART communicator supports universal HART commands, device-specific commands, and manufacturer-specific functions for complete process instrumentation control and maintenance procedures.

Emerson TREX AMS HART Wireless Connectivity and Modern Process Communication

Advanced Wi-Fi and NFC Technology for HART Asset Management

Built-in Wi-Fi 802.11 b/g/n provides wireless connectivity up to 33 meters range, enabling remote HART device monitoring and data synchronization with plant asset management systems. Active NFC technology with 20mm range facilitates secure HART device identification and configuration transfer for enhanced process automation workflow efficiency.

Professional Applications for TREX AMS HART Device Configuration and Maintenance

Process Industry HART Device Applications

• HART pressure transmitter configuration and span adjustment
• HART temperature transmitter calibration and range setting
• HART flow meter configuration and totalizer programming
• HART level transmitter setup and alarm point configuration
• HART valve positioner calibration and stroke testing
• HART process analyzer configuration and measurement verification
• HART device commissioning and loop testing procedures
• HART instrument diagnostics and health monitoring

HART Asset Management and Predictive Maintenance Applications

• HART device health monitoring and diagnostic analysis
• HART instrument troubleshooting and fault detection
• HART device calibration verification and documentation
• HART configuration backup and device replacement procedures
• HART performance monitoring and trend analysis
• HART compliance documentation and audit trail management
• HART operator training and device familiarization
• HART emergency repair and rapid device restoration

Complete TREX AMS HART Package from Mohammad Mahdi Electronics

When you purchase the Emerson TREX AMS HART Device Communicator from Mohammad Mahdi Electronics (mme-ae), you receive a comprehensive HART protocol solution:

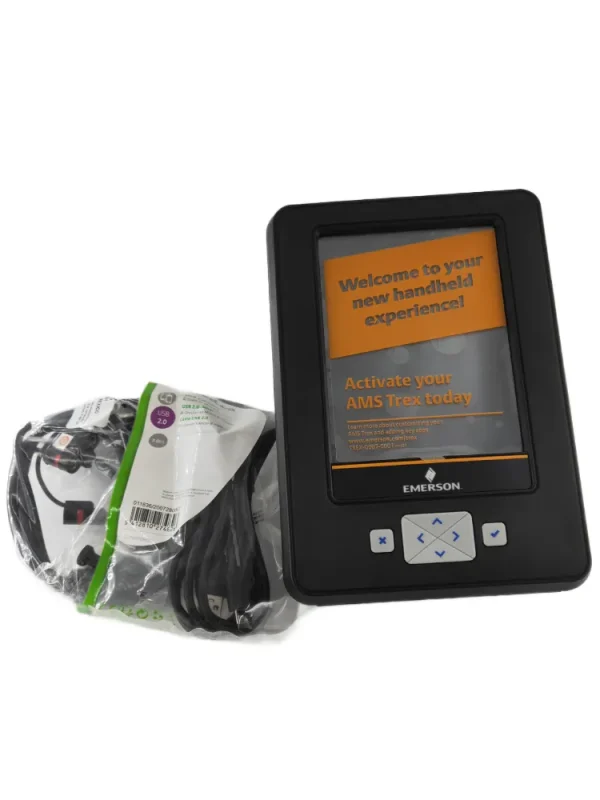

• TREX AMS HART Device Communicator with HART communication module
• Rechargeable lithium-ion power module and universal AC adapter
• USB cable and professional HART lead set with connectors
• Hand strap and protective carrying case
• Comprehensive HART documentation and safety certification guides
• Standard support package with HART application updates

The Emerson TREX AMS HART communicator delivers unmatched value for HART protocol professionals requiring comprehensive Highway Addressable Remote Transducer device management capabilities. Its combination of advanced processing power, intuitive touchscreen interface, wireless connectivity, and intrinsically safe certifications makes it the industry standard for demanding HART device commissioning and process instrumentation maintenance applications.

Choose Mohammad Mahdi Electronics (mme-ae) for authentic Emerson HART communication instruments with professional support and fast delivery across the UAE. Experience professional-grade HART device communication with the
