Hioki Cm4371 Ac/dc Clamp Meter

Hioki Ac/dc Clamp Meter Cm4371

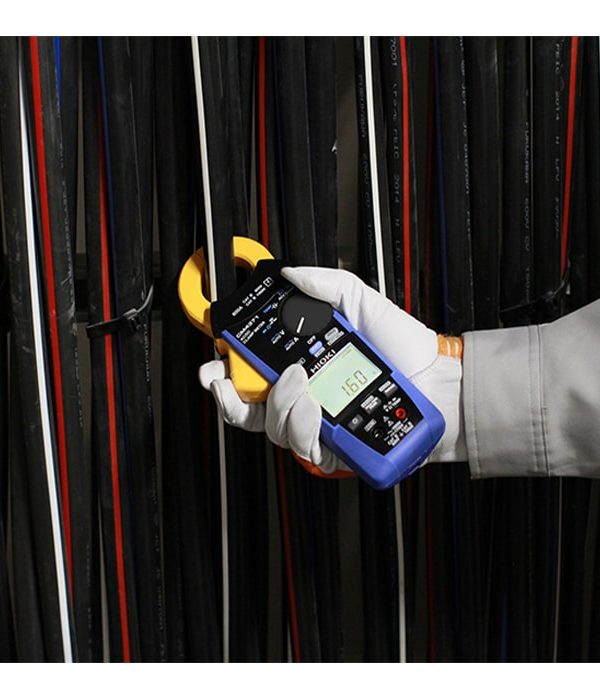

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Model AC/DC CLAMP METER CM4371 is a 600A True RMS clamp meter that features stronger jaws, a broader -25°C to 65°C operating temperature range, and an IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations including the development, repair, and maintenance of equipment, and devices such as electric vehicles.

Additionally, the high voltage DC measurement capability of up to 1700 V is ideal for the clamp maintenance inspections of electrical and solar power equipment.

the Hioki cm4370 series

The AC/DC CLAMP METER CM4370 series current sensor tip can also detect live voltages, eliminating the need for a separate voltage detector. Live wires are identified by a loud buzzer and a red LED on the current clamp.

Hioki CM4371 Key Features

Simultaneously measure inrush current in RMS and crest values

Automatic AC/DC function helps boost work efficiency

Measure DC voltages of up to 2000 V  for open voltage inspections of solar panels

CAT IV 600 V, CAT III 1000 V When using the P2000: CAT III 2000 V, CAT IV 1000 V

AC/DC CLAMP METER CM4371 Specification:

• DC Current: 20.00 A – 600.0 A/accuracy: ±1.3% rdg
• AC Current: 20.00 A – 600.0 A (10 Hz to 1 kHz, True RMS) /  accuracy: 45-66 Hz: ±1.3% rdg
• DC+AC Current: 20.00 A – 600.0 A (10 Hz to 1 kHz, True RMS) / accuracy DC, 45-66 Hz: ±1.3% rdg
• DC Voltage: 600.0 mV to 1700 V / accuracy: ±0.5% rdg
• AC Voltage: 6.000 V to 1000 V/ accuracy 45 – 66 Hz: ±0.9% rdg
• DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45 – 66 Hz: ±1.0% rdg
• Resistance: 600.0 Ω to 600.0 kΩ / accuracy: ±0.7% rdg
• Capacitance: 1.000 μF to 1000 μF / accuracy: ±1.9% rdg
• Frequency: 9.999 Hz to 999.9 Hz / accuracy: ±0.1% rdg
• Temperature (K): -40.0 to 400.0 ˚C
• Dimensions and mass: 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g
