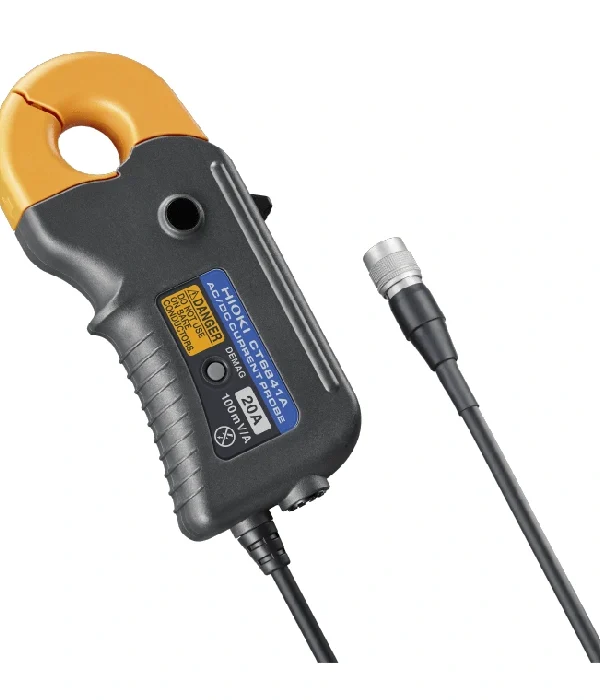

Hioki CT6841A AC/DC Current Probe

The Hioki CT6841A AC/DC Current Probe. Overview The Hioki CT6841A is a high-precision clamp-type AC/DC current probe for accurate measurement of currents up to 20 A across a wide DC-to-2 MHz bandwidth. Engineered for reliability in extreme temperatures and noisy environments, it delivers low-drift amplitude accuracy and high common-mode rejection, making it ideal for electric-vehicle development, power electronics, renewable-energy systems and industrial testing.

The CT6841A works with Hioki power analyzers and sensor units and features a one-hand clamp with a robust lock for field use. Key Features Measures AC and DC current up to 20 A Wide DC-to-2 MHz amplitude bandwidth for wide-band power analysis High precision with 0. 2% (DC) amplitude accuracy and typ.

Overview

Overview The Hioki CT6841A is a high-precision clamp-type AC/DC current probe for accurate measurement of currents up to 20 A across a wide DC-to-2 MHz bandwidth. Engineered for reliability in extreme temperatures and noisy environments, it delivers low-drift amplitude accuracy and high common-mode rejection, making it ideal for electric-vehicle development, power electronics, renewable-energy systems and industrial testing. The CT6841A works with Hioki power analyzers and sensor units and features a one-hand clamp with a robust lock for field use. Key Features Measures AC and DC current up to 20 A Wide DC-to-2 MHz amplitude bandwidth for wide-band power analysis High precision with 0.2% (DC) amplitude accuracy and typ. 20 ppm linearity High common-mode rejection (CMRR ≥140 dB, DC-1 kHz) One-hand clamp with robust lock and -40 to +85 °C operation Compatible with PW8001, PW6001, PW3390 and CT955x sensor units Applications Electric-vehicle and power-electronics development Wide-band power analysis and transient capture Renewable-energy system testing Precision current measurement in noisy industrial cabinets What’s in the Box CT6841A AC/DC Current Probe Carrying case Markup bands ×6

Key Features

• Official Hioki specifications — see table below.

Hioki CT6841A AC/DC Current Probe Applications

• Production inspection — Use the CT6841A AC/DC Current Probe where Hioki accuracy and repeatability matter on the line.
• R&D validation — Confirm behavior against official Hioki ranges for the CT6841A AC/DC Current Probe.
• Maintenance — Keep calibrated Hioki instruments ready for troubleshooting in UAE facilities.
• Incoming QA — Verify parts using manufacturer-stated measurement parameters.
• Lab benches — Pair with compatible Hioki fixtures or probes when required.

Hioki CT6841A AC/DC Current Probe Specifications

Specifications available on request from Hioki documentation.

Buy the Hioki CT6841A AC/DC Current Probe in the UAE from mme-ae — request a quote on mme-ae.com for availability and delivery support from Mohammad Mahdi Electronics / MME.
