Hioki LR5051 Clamp Logger

Overview

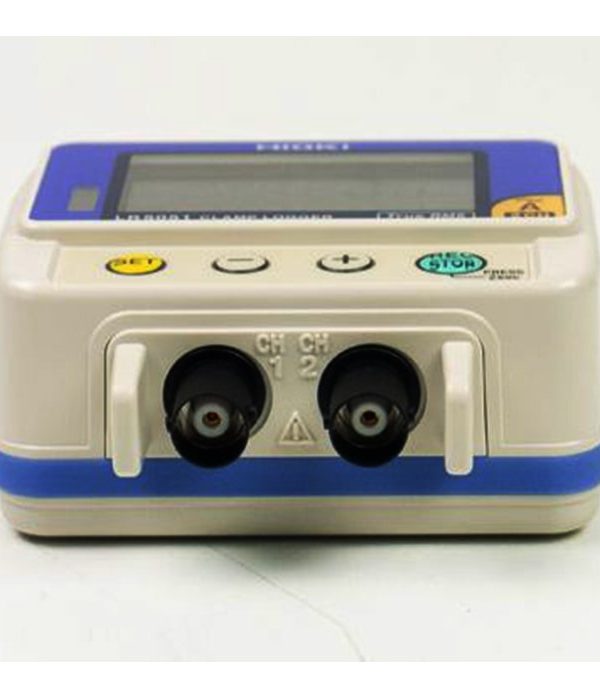

The Hioki LR5051 is a compact two-channel clamp data logger that records AC current in as fast as one-second intervals using clamp-on current sensors. Covering 500 mA up to 1000 A AC across two channels with large 60,000-data-set-per-channel memory, it is ideal for long-term monitoring of load current, energy usage and equipment operation. Battery-powered and pocket-sized, the LR5051 makes unattended current logging simple and reliable.

Key Features

• Logs AC current over two channels
• Wide measurement range from 500 mA to 1000 A AC rms (with clamp sensors)
• Large 60,000 data-set-per-channel memory
• Recording as fast as one-second intervals
• Compact, pocket-sized and battery-powered
• Accuracy of ±2.0% rdg. ±0.13% f.s.

Applications

• Long-term load-current and energy monitoring
• Equipment operation and duty-cycle logging
• Electrical maintenance and energy audits
• Unattended current measurement in the field

What’s in the Box

• LR5051 Clamp Logger
• LR6 (AA) alkaline batteries ×2
• Instruction manual

Why buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Hioki test and measurement equipment in the UAE. We offer genuine products, competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Download the datasheet
