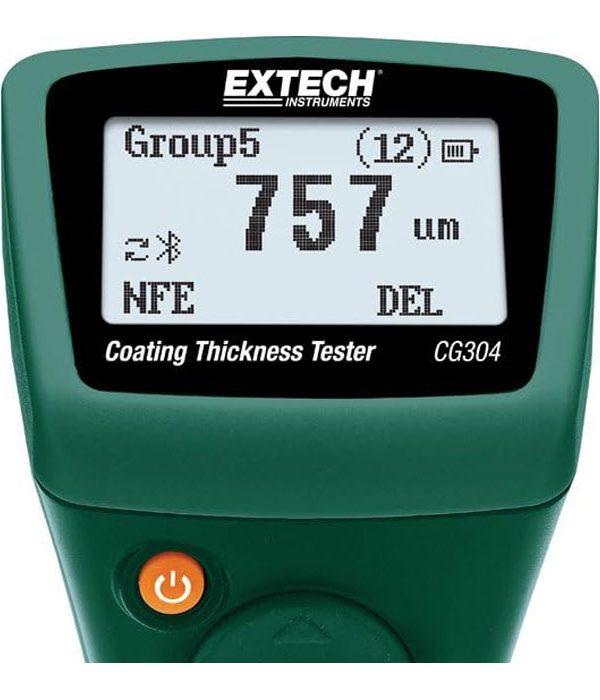

Extech CG304 Coating Thickness Tester with Bluetooth

Coating Thickness Tester with Bluetooth Extech CG 304

The Extech CG304 Coating Thickness Gauge provides a non-destructive method of measuring the thickness of ferrous and non-ferrous substrates with automatic identification of the material being measured. Memory stores 2500 readings.

The unique Bluetooth interface feature wirelessly transmits data to your PC for further analysis and allows you to generate a documented report. Special LCD with backlight and contrast function for easy viewing in different lighting conditions. Complete with two AAA batteries, software, a hard carrying case, steel and aluminum substrates, and standard calibration films.

extech cg304 can be used in wolf cooktop 36, 30 inch gas cooktop, gas top stove, gas cooktop with griddle.

Extech CG 304 Features

• Automatically recognizes ferrous and non-ferrous substrates
• Easy-to-use menu system with backlit LCD
• Memory stores 2500 readings: 50 groups of 50 readings
• Send stored or real-time data to your Bluetooth® enabled device, PC software included
• Know when out of range with user-settable high/low alarms

Frequency Asked Questions

How is coating thickness measured?

Coating Thickness Tester Extech CG 304 Specifications:

• Coating Thickness (Ferrous): 0 to 2000µm; 0 to 78.7mils
• Coating Thickness (Non-Ferrous): 0 to 2000µm; 0 to 78.7mils
• Min Curvature Radius (Ferrous) 1.5mm (59.06mils)
• Min Curvature Radius (Non-Ferrous) 3mm (118.1mils)
• Min Diameter (Ferrous) 7mm (275.6mils)
• Min Diameter (Non-Ferrous) 5mm (196.9mils)
• Min Thickness (Ferrous) 0.5mm (19.69mils)
• Min Thickness (Non-Ferrous) 0.3mm (11.81mils)
• Working Principle (Ferrous) Magnetic Induction
• Working Principle (Non-Ferrous) Eddy Current
