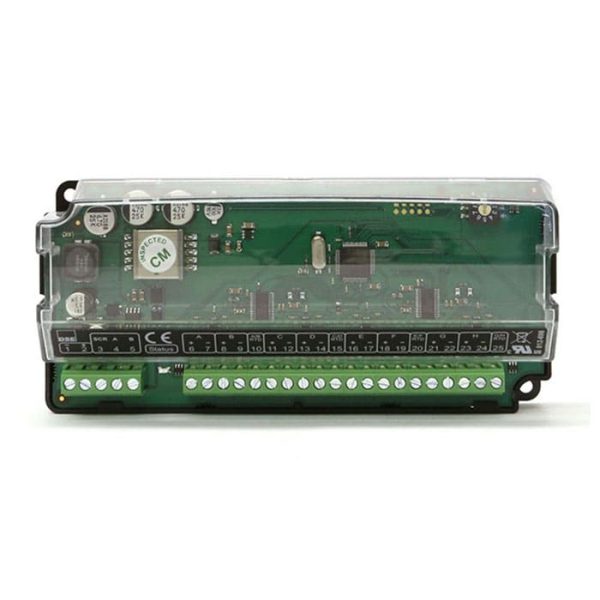

DEEPSEA DSE2133 Control Module Save Your Time And Money!

DEEPSEA DSE2133 Control Module Professional!

The DSE2133 Input Expansion Module is used in conjunction with supported DSENet controllers to provide 8 additional configurable inputs. Up to four modules can be linked together to provide up to 32 additional inputs. The inputs can be configured as RTD or Thermocouple inputs in the ‘host controller’.

DEEPSEA DSE2133 Control Module specifications:

• CONTINUOUS VOLTAGE RATING: 8V to 35V continuous
• MAXIMUM OPERATING CURRENT; 292 mA at 12 V, 167 mA at 24 V
•  MAXIMUM STANDBY CURRENT: 101 mA at 12 V, 66 mA at 24 V
• CONTINUOUS VOLTAGE RATING: 8V to 35V continuous
• CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs
• will not be maintained during cranking.
• MAXIMUM OPERATING CURRENT: 292 mA at 12 V, 167 mA at 24 V
• MAXIMUM STANDBY CURRENT: 101 mA at 12 V, 66 mA at 24 V
• INPUT: 8 inputs configurable as RTD/Thermocouple
