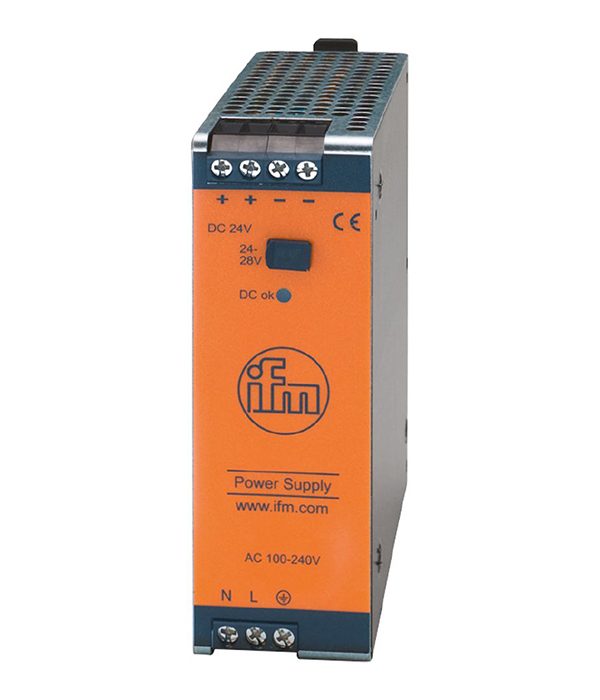

DN4012 ifm power supply

DN4012 ifm power supply

You may want to look at DN4012 ifm power supply’s switched-mode 24 V DC if you’re seeking for a dependable and effective power source for your industrial electronics, controllers, sensors, and actuators.

This device is perfect for a variety of applications and situations because of its great performance and low power loss.

The DN4012 ifm power supply has an adjustable output voltage range of 24 to 28 V DC and an automatic range selection of input voltage from 100 to 240 V AC.

At minimal output voltage, it can deliver up to 5 A of output current, and at maximum output voltage, it can deliver up to 4.3 A.

Additionally, it includes a 20% high power reserve, allowing it to withstand transient surges and peak loads without affecting the output’s stability.

Because of its great efficiency (up to 91%), the DN4012 ifm power supply uses less energy and produces less heat.

It can also handle brief interruptions or changes in the input voltage thanks to its high mains buffering duration of up to 50 ms.

It is secure and long-lasting because it has a protection class I rating and a 39 V DC overvoltage protection.

The DN4012 ifm power supply has a compact design, measuring just 100 mm in depth and 45 mm in breadth. It is simply mounted using screws on a wall or a DIN rail.

It is appropriate for indoor use because it has an IP20 protection grade and a sturdy metal housing.

Numerous ifm accessories, including connectors, cables, fuses, filters, and surge protectors, are compatible with the DN4012 ifm power supply. On the ifm website, you may discover further details about the technical data, operating guidelines, CAD drawings, and appropriate accessories.

Visit our website Mme-ae.com to find the best offers and rates on the DN4012 ifm power supply switched-mode power supply 24 V DC if you’re interested in buying it.

In the MENA region, mme-ae.com is a top online retailer of industrial goods and services. We provide quick delivery, safe payment methods, and top-notch customer support.

Don’t pass up this chance to acquire the DN4012 ifm power supply switched mode, 24 V DC. You can receive a dependable and effective power supply from this device for your industrial applications.

Order from Mme-ae.com right away to take advantage of this premium product’s advantages.

Features

• For the regulated power supply for controllers, sensors, actuators, and industrial electronics
• Low power loss thanks to high efficiency
• High mains buffering time
• Particularly space-saving design
• High power reserves

DN4012 ifm power supply Specifications

Electrical data

• Frequency AC [Hz]: 47…64
• Operating voltage tolerance [%]: 10
• Operating voltage tolerance 2 [%]: 10
• Operating voltage [V]: automatic range selection
• Nominal voltage AC [V]: < 230
• Input voltage range AC [V]: 100…120 / 200…240; (automatic range selection)
• Output voltage DC [V]: 24…28
• Protection class I; (IEC 61140)
• Overvoltage protection: yes; (< 39 DC)
• Output voltage [V]: adjustable; output voltage to SELV, PELV
• Max. output current at min. output voltage [A]: 5
• Max. output current at max. output voltage [A]: 4.3
• Max. output current peak at min. output voltage [A]: 6
• Max. output current peak at max. output voltage [A]: 5.1
• Output power (permanent) [W]: 120
• Output power (peak) [W]: 144
• Note on output power (peak) [W]: ≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes
• Power factor (nominal voltage 120 V AC / 60 Hz): 0.56
• Power factor (nominal voltage 230 V AC / 50 Hz): 0.47
• Power reserve [%]: 20
• Number of output circuits: 1
• Max. residual ripple [mV]: 50
• Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A]: 3
• Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A]: 3
• Inrush current limitation: yes
• Efficiency (nominal voltage 120 V AC / 60 Hz) [%]: 89.4
• Efficiency (nominal voltage 230 V AC / 50 Hz) [%]: 90.2
• External input protection:≤ B-10 A / ≤ C-6 A
• Derating [W/K]: 3 (60…70 °C)
• Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms]: 80
• Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]: 78
• Input current (nominal voltage 120 V AC / 60 Hz) [A]: 2.05
• Input current (nominal voltage 230 V AC / 50 Hz) [A]:1.23
• Power loss (nominal voltage 120 V AC / 60 Hz) [W]: 14.5
• Power loss (nominal voltage 230 V AC / 50 Hz) [W]: 13.2
• Back feeding protection [V]:35

Outputs

• Short-circuit proof: yes
• Overload protection: yes
• Overload performance: output current constant
• Parallel connection of outputs possible: no
• Series connection of outputs possible: yes

Operating conditions

• Ambient temperature [°C]:-25…70
• :Note on ambient temperatureobserve the free space for convection (see operating instructions)
• Storage temperature [°C]: -40…85
• Max. relative air humidity [%]: 95; (IEC 60068-2-30)
• Protection: IP 20; (EN 60529)
• Pollution degree: 2; (IEC 62103: conductive soiling not permitted)

Tests / approvals

• :EMCEN 61000-6-1EN 61000-6-2EN 61000-6-4
• Vibration resistanceIEC 60068-2-6: ±1,6 mm 2…17,8 Hz / 2 g 17,8…500 Hz
• Shock resistance:IEC 60068-2-2730 g 6 ms / 20 g 11 ms

Mechanical data

• Weight [g]: 594.5
• Type of mounting: rail; (TH35 (EN 60715))
• Dimensions [mm]: 124 x 40 x 122.5
