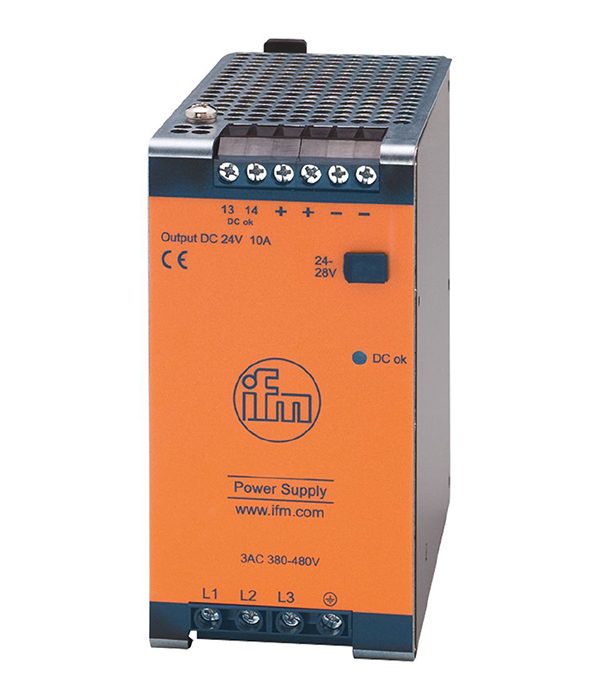

DN4033 ifm power supply

DN4033 ifm power supply

Do your industrial electronics, such as controllers, sensors, and actuators, require a smart and dependable power supply?

Do you need a device with a wide range of high input voltages and a consistent output voltage?

In that case, you may want to look into DN4033 ifm power supply switched-mode power supply 24 V DC.

High-performance power supplies like the DN4033 ifm power supplycan deliver up to 10 A of output current at the lowest output voltage and up to 8.6 A at the highest output voltage.

It includes an adjustable output voltage range of 24 to 28 V DC and an automatic range selection of input voltage from 400 to 480 V AC.

Additionally, it includes a 20% high power reserve, allowing it to handle transient surges and peak loads without sacrificing the output’s quality.

The DN4033 ifm power supply lowers heat generation and energy consumption thanks to its high efficiency of up to 95%.

It can survive brief interruptions or changes in the input voltage because to its high mains buffering duration of up to 50 ms.

It is secure and long-lasting because it has a protection class I rating and a 39 V DC overvoltage protection.

With a width of only 45 mm and a depth of about 100 mm, the DN4033 ifm power supply is a little device.

It is simply mounted using screws on a wall or a DIN rail. It is appropriate for indoor use because it has an IP20 protection grade and a sturdy metal housing.

Numerous ifm accessories, including connectors, cables, fuses, filters, and surge protectors, are compatible with the DN4033 ifm power supply.

Visit our website Mme-ae.com to find the best offers and rates on the DN4033 ifm power supply switched-mode power supply 24 V DC if you’re interested in buying it.

In the MENA region, mme-ae.com is a top online retailer of industrial goods and services. We provide quick delivery, safe payment methods, and top-notch customer support.

Don’t pass up this chance to acquire theDN4033 ifm power supply switched-mode power supply 24 V DC.

You will receive a clever and dependable power supply from this device for your industrial applications. Order from Mme-ae.com right away to take advantage of this premium product’s advantages.

Features

• For the regulated power supply for controllers, sensors, actuators, and industrial electronics
• Low power loss thanks to high efficiency
• High mains buffering time
• Particularly space-saving design
• High power reserves

DN4033 ifm power supply Specifications

• Frequency AC [Hz]: 47…64

• Operating voltage tolerance [%]: 15…20

• Nominal voltage AC [V]: < 400

• Input voltage range AC [V]: 380…480

• Output voltage DC [V]: 24…28

• Protection class: I; (IEC 61140)

• Overvoltage protection: yes; (< 32 DC)

• Output voltage [V]: adjustable; output voltage to SELV, PELV

• Max. output current at min. output voltage [A]: 10

• Max. output current at max. output voltage [A]: 8.6

• Max. output current peak at min. output voltage [A]: 12

• Max. output current peak at max. output voltage [A]: 10.3

• Output power (permanent) [W]: 240

• Output power (peak) [W]: 288

• Note on output power (peak) [W]: ≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes

• Power factor (nominal voltage 400 V AC / 50 Hz): 0.53

• Note on power factor (nominal voltage 400 V AC / 50 Hz): with symmetrical phase voltage

• Power factor (nominal voltage 480 V AC / 50 Hz): 0.52

• Note on power factor (nominal voltage 480 V AC / 50 Hz): with symmetrical phase voltage

• Power reserve [%]: 20

• Number of output circuits: 1

• Max. residual ripple [mV]: 50

• Switch-on peak current (nominal voltage 400 V AC / 60 Hz) [A]: 4

• Switch-on peak current (nominal voltage 480 V AC / 50 Hz) [A]: 4

• Inrush current limitation: yes

• Efficiency (nominal voltage 400 V AC / 60 Hz) [%]: 92.8

• Efficiency (nominal voltage 480 V AC / 50 Hz) [%]: 92.9

• External input protection: ≤ B-6 A / ≤ C-3 A

• Derating [W/K]: 6 (60…70 °C)

• Mains buffering time (nominal voltage 400 V AC / 60 Hz) [ms] 34

• Mains buffering time (nominal voltage 480 V AC / 50 Hz) [ms]: 54

• Input current (nominal voltage 400 V AC / 60 Hz) [A]: 0.7

• Input current (nominal voltage 480 V AC / 50 Hz) [A]: 0.6

• Power loss (nominal voltage 400 V AC / 60 Hz) [W]: 18.6

• Power loss (nominal voltage 480 V AC / 50 Hz) [W]: 18.3

• Back feeding protection [V]: 35

• Short-circuit proof: yes

• Overload protection: yes

• Overload performance:

• Type DC-OK signal:relay output

• Reliability of the DC OK signal: 60 V DC (0.3 A) / 30 V DC (1 A) / 30 V AC (0.5 A)

• Ambient temperature [°C]: -25…70

• Note on ambient temperature: observe the free space for convection (see operating instructions)

• Storage temperature [°C]: -40…85

• Max. relative air humidity [%]: 95; (IEC 60068-2-30)

• Protection: IP 20; (EN 60529)
• Pollution degree: 2; (IEC 62103: conductive soiling not permitted)

• EMC:

• Vibration resistance:

• Shock resistance:

• Power Factor Correction (PFC):met

• Weight [g]:891.6

• Type of mounting:rail; (TH35 (EN 60715))

• Dimensions [mm]:124 x 62 x 122.5

• Materials: steel sheet

• Display:DC ok 1 x LED

• Remarks: Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage
• Pack quantity: 1 pcs.

• Connection:
