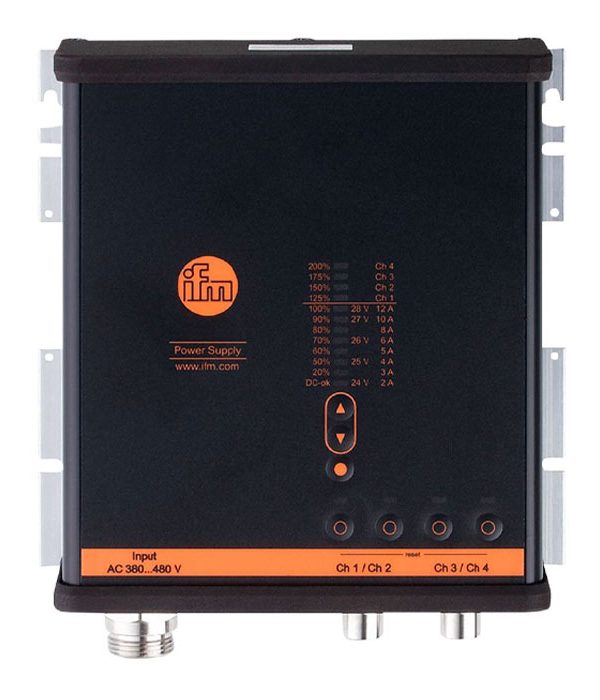

DN4234 ifm power supply

The DN4234 ifm  switched-mode power supply 24 V DC from ifm is a clever and resilient power supply for your controllers, sensors, actuators, and industrial electronics. This power supply offers a high efficiency for low power loss, a long main buffering time, a compact design, and a large power reserve. It also offers wiring protection via programmable electronic circuit breakers and extra diagnostics such as detecting current, voltage, and mains quality as well as calculating operating hours. The DN4234 ifm power supply is available through the MME-AE website, which provides an easy platform for ordering ifm products in Dubai and other regions. Don’t pass up this opportunity to receive a powerful and intelligent power supply for your applications.

SKU: 57955

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

14 People watching this product now!

DN4234 ifm power supply

Do your controllers, sensors, actuators, and other industrial electronics require a reliable and flexible power source? Do you wish you had a gadget that could check your power usage and quality as well as safeguard your wiring from overcurrent?

If that’s the case, DN4234 ifm power supply’s 24-volt DC switched-mode power supply is worth checking out.

The DN4234 ifm power supply is a variable-output smart power supply with a maximum output current of 17.8 A and a minimum output current of 20 A.

The input voltage range is automatically selected between 400 and 480 V AC, while the output voltage is tunable between 24 and 28 V DC. It can manage peak loads and transient surges without affecting output stability thanks to its substantial power reserve of 20%.

The DN4234 ifm power supply’s programmable electronic circuit breakers are a standout feature for safeguarding wire.

Each of the four output circuits has its own current limit and tripping time that can be adjusted, and the status may be checked with LED indicators or IO-Link.

In this method, you may shield your devices from potential harm caused by a cable breaking or a short.

You may check the input and output circuits’ current, voltage, and mains quality with the DN4234 ifm power supply ‘s built-in diagnostics feature.

The number of trips and total number of hours each circuit is in use can also be calculated. Maintenance schedules and energy savings can both be improved in this way.

The DN4234 ifm power supply is small in size, measuring just 45 mm in width and 100 mm in depth. A DIN rail or screws allow for simple wall or ceiling installation.

It may be used outside thanks to its IP67 rating and sturdy metal casing.

Connectors, cables, fuses, filters, and surge protectors are just some of the ifm accessories that work with the DN4234.

You may find the greatest discounts and lowest rates on the DN4234 ifm power supply switched-mode power supply 24 V DC by visiting our website, Mme-ae.com. In the Middle East and North Africa (MENA), Mme-ae.com is the go-to destination for industrial supplies and services.

Our services include quick shipping, safe transactions, and attentive helpdesk staff.

Don’t pass up your chance to own DN4234 ifm power supply’s switched-mode power supply 24 V DC. If you need a reliable and flexible power source for industrial uses, this gadget is for you. Place your order at Mme-ae.com now to take advantage of this ingenious goods.

Features

  • Protection of the wiring via configurable electronic circuit breakers
  • Installation without control cabinet
  • Additional diagnostics by measuring current, voltage and mains quality as well as counting operating hours
  • Energy-efficient generation of extra-low voltage without power loss

DN4234 ifm power supply Specifications

Electrical data
  • Nominal voltage AC [V]: 400 / 480
  • Nominal frequency AC [Hz]: 50…60
  • Input voltage range AC [V]: 323…552
  • Output voltage DC [V]: 24…28
  • Protection class:I
  • Max. power-on delay time [ms]: 12
  • Output voltage tolerance [%]: 0.2
  • Max. output current at min. output voltage [A]: 20.8
  • Max. output current at max. output voltage [A]: 17.8
  • Output power (permanent) [W]: 500
  • Output power (peak) [W]: 1000
  • Power factor (nominal voltage 400 V AC / 50 Hz): 0.94
  • Power factor (nominal voltage 480 V AC / 50 Hz): 0.95
  • Number of output circuits: 4
  • Switch-on peak current (nominal voltage 400 V AC / 60 Hz) [A]: 2.1
  • Switch-on peak current (nominal voltage 480 V AC / 50 Hz) [A]: 2
  • Efficiency (nominal voltage 400 V AC / 60 Hz) [%]: 94.2
  • Efficiency (nominal voltage 480 V AC / 50 Hz) [%]: 94
  • Mains buffering time (nominal voltage 400 V AC / 60 Hz) [ms]: 24
  • Mains buffering time (nominal voltage 480 V AC / 50 Hz) [ms]: 24
  • Input current (nominal voltage 400 V AC / 60 Hz) [A]: 1.1
  • Input current (nominal voltage 480 V AC / 50 Hz) [A]: 0.9
Outputs
  • Load capacitance, total [mF]: 12.5
  • Operating conditions
  • Ambient temperature [°C]: -25…70
  • Storage temperature [°C]: -40…85
  • Max. relative air humidity [%]: 95; (relative humidity)
  • Max. height above sea level [m]: 5000
  • Protection: IP 65; IP 67
  • Pollution degree: 3
Tests / approvals:
  • EMC:
EN: 61000-4-2 CD
8 kV / failure criterion A
EN: 61000-4-2 AD
15 kV / failure criterion A
EN :61000-4-3
80 Mhz…2.7 GHz / 20 V/m failure criterion A
EN :61000-4-3
2.7 GHz…6 GHz kV / 10 V/m failure criterion A
EN: 61000-4-8
50 / 60 Hz / 30 A/m failure criterion A
EN: 61000-4-4 Burst
4 kV / failure criterion A
EN: 61000-4-5 Surge
2 kV Lx / Ly / failure criterion A
EN: 61000-4-5 Surge
4 kV L / PE / failure criterion A
EN :61000-4-5 Surge
1 kV + / – / failure criterion A
EN :61000-4-5 Surge
1 kV + – / PE / failure criterion A
EN: 61000-4-5 Surge
1 kV + – / PE / failure criterion A
EN: 61000-4-5 Surge
1 kV DC-OK / PE / failure criterion A
EN: 61000-4-6
0.15…80 MHz / 20 V failure criterion A
EN: 61000-4-11
0 V up to 1 cycle / failure criterion A
EN :61000-4-11
40 % of V / 200 ms failure criterion A
EN: 61000-4-11
70 % of V / 500 ms failure criterion A
EN: 61000-4-11
0 V / 5000 ms failure criterion C
VDE 0160
1550 V / 1.3 ms failure criterion A
EN :55032
Class B
EN: 55032
Class B
EN: 55011
Class B
EN :61000-3-2
EN: 61000-3-3
  • Weight [g]: 1558.8
  • Dimensions [mm]: 182 x 183 x 59
  • Materials: housing: aluminium alloy; housing cap: PC; screws: steel bronzed
  • Pack quantity: 1 pcs.
  • Connector: 2 x M12; coding: L; Locking: brass: Electrical connection – power supply
  • Connector: 1 x 7/8″; Locking: brass
