EXTECH 380396 High Voltage Digital Insulation Tester

EXTECH 380396 Key Features

• Test Voltages of 500V, 1000V, 2500V, and 5000V
• Measure Insulation Resistance to 60GOhm
• Large 6000 count display with bargraph and backlight
• Polarization Index measurement (PI)
• Dielectric Absorption Ratio measurement (DAR)

(1 customer review)
SKU:8026

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 3,168 (excl.VAT)

12People watching this product now!

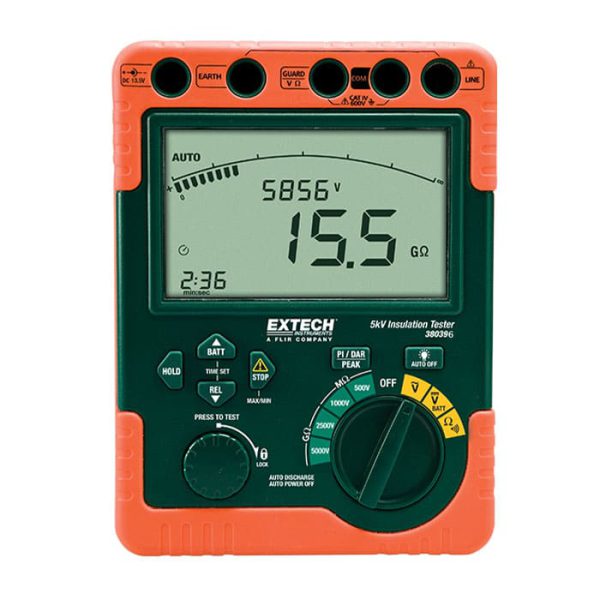

EXTECH 380396 High Voltage Digital Insulation Tester

The Extech 380396 measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak, and Relative functions, and a 1 to 15-minute timer function for IR measurements. Comes with test leads, eight C batteries, a 220V AC adaptor, a heavy-duty carrying case, and a user manual.

Extech Company Introduction

EXTECH Digital High Voltage Insulation Tester380396 Key Features

  •  Test Voltages of 500V, 1000V, 2500V, and 5000V
  •  Measure Insulation Resistance to 60GOhm
  •  Large 6000 count display with bargraph and backlight
  •  Polarization Index measurement (PI)
  •  Dielectric Absorption Ratio measurement (DAR)

EXTECH-380396 High Voltage Insulation Tester Specifications

  • Test Voltage 500V/1000V/2500V/5000V
  • Insulation Resistance 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
  • Accuracy ±2.5% of reading
  • AC/DC Voltage 0 to 600V
  • Accuracy ±1% of reading
  • Resistance 0 to 600Ω
  • Accuracy ±1.5% of reading
  • 1 to 15-minute timer function for IR measurements
  • Resistance measurement
  • Indication of output voltage and discharge voltage
  • Auto-discharge function and voltage output warning function
  • Autoranging, Auto Power off, and battery check
  • Complete with test leads, 8 x C batteries, 220V AC adaptor, and heavy-duty carrying case
