    Description

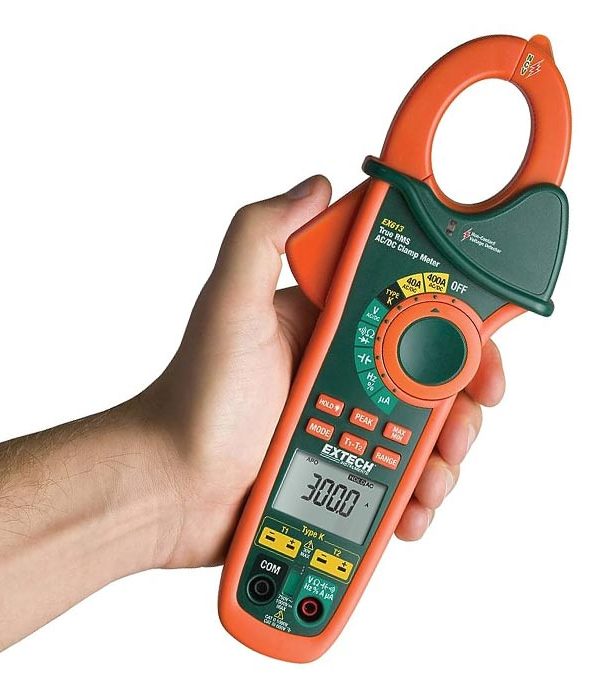

    EXTECH EX613 400A Dual Input AC/DC Clamp Meter

    The Extech EX613 is a 400 Amp dual input AC/DC Clamp meter with a built-in non-contact voltage detector. This TRMS AC/DC Clamp Meter has dual thermocouple inputs for T1, T2, and T1-T2 Differential Temperature measurements. This DMM measures AC/DC Voltage and Current, Resistance, Capacitance, and Frequency.

    Additional features include a DC micro-amp function for flame rod measurements, a Diode open circuit voltage of 2.8 Volt, a Data Hold plus a fast Peak Hold for capturing current surges at motor startup, and capacitance measurement to 40mF.

    EXTECH-EX613 Features

    • True RMS measurements for accurate AC Voltage and Current measurements
    • Dual-type K thermocouple input with Differential Temperature function (T1, T2, T1-T2)
    • Built-in non-contact Voltage detector with LED alert
    • DC µA multimeter function for HVAC flame rod Current measurements
    • Data Hold plus fast Peak Hold of current surges during motor startup
    • 40,000-count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges
    • Measures motor capacitors to 40,000µF
    • 1.25″ (32mm) jaw opening for conductors up to 500MCM
    • A rugged double molded housing
    • Auto power off with audible alert and disable function
    • Autoranging with manual override
    • Complete with CAT III-600V, double molded test leads, 9V battery, two general purpose Type K bead wire probes, and case

    EXTECH 400A Dual Input acdc Clamp Meter Specifications

    • AC/DC Current (Max Res.) 400.0A AC/DC (10mA)
    • Basic ACA accuracy ±1.5%
    • AC/DC Voltage (Max Res.) 600V (0.1mV)/600V (0.01mV)
    • DC µA Current (Max Res.) 4000µA (0.01µA)
    • Resistance (Max Res.) 40.000MΩ (0.01Ω)
    • Capacitance (Max Res.) 40mF (0.01nF)
    • Frequency (Max Res.) 40MHz (0.001Hz)
    • Temperature – Type K -58 to 1832°F (-50 to 1000°C)
    • Diode (2.8V)/ Continuity Yes
    • Duty Cycle 0.5 to 99.0%
    • Dimensions 9×3.1×1.9″ (229x80x49mm)
    • Weight 10.7oz (303g)
    • To check the full specifications of Extech EX613 visit the datasheet.
    Datasheet

    Datasheet

    Mme-pdfs-image

    Technical data

    Technical data

    Feature Specification
    AC/DC Current (Max Res.) 400.0A AC/DC (10mA)
    Basic ACA Accuracy ±1.5%
    AC/DC Voltage (Max Res.) 600V (0.1mV)/600V (0.01mV)
    DC µA Current (Max Res.) 4000µA (0.01µA)
    Resistance (Max Res.) 40.000MΩ (0.01Ω)
    Capacitance (Max Res.) 40mF (0.01nF)
    Frequency (Max Res.) 40MHz (0.001Hz)
    Temperature – Type K -58 to 1832°F (-50 to 1000°C)
    Diode / Continuity 2.8V / Yes
    Duty Cycle 0.5 to 99.0%
    Dimensions 9×3.1×1.9″ (229x80x49mm)
    Weight 10.7oz (303g)
