The Fluke 1000 is a multifunction PV tester and performance analyzer designed for solar panel testing and analysis. With its accurate measurements and IEC 61010-1 compliance, this tool is ideal for technicians and engineers working in the solar industry.

Fluke 1000 Key Features

The Fluke 1000 features a range of key specifications, including:

Protective conductor resistance (R Lo): Display range: Measuring range 0.00 Ω – 19.99 Ω: 0.20 Ω – 19.99 Ω, 20.0 Ω- 199.9 Ω: 20.0 Ω – 199.9 Ω, 200 Ω – 2000 Ω: 200 Ω – 2000 Ω
Test current: ≥ 200 mA (≤ 2Ω + Rcomp)
Test voltage: 4 V DC … 10 V DC
PV module/PV string, open-circuit voltage (Voc): Display range: Measuring range 0.0 V – 99.9 V: 5.0 V – 99.9 V, 100 V – 1000 V: 100 V – 1000 V
PV module/PV string, short-circuit current (Is/c): Display range: Measuring range 0.0 A – 20.0 A: 0.2 A – 20.0 A
Insulation resistance (R INS): Display range: Measuring range 0.00 M Ω – 99.99 MΩ: 0.20 M Ω – 99.99 MΩ, 100.0 M Ω – 199.9 MΩ: 100.0 M Ω – 199.9 MΩ, 200 M Ω – 999 MΩ: 200 M Ω – 999 MΩ
AC/DC voltage measurement: Display range: Measuring range 0.0 V AC – 99.9 V AC: 5.0 V AC – 99.9 V AC, 100 V AC – 700 V AC: 100 V AC – 700 V AC, 0.0 V DC – 99.9 V DC: 5.0 V DC – 99.9 V DC, 100 V DC – 1000 V DC: 100 V DC – 1000 V DC
AC/DC current with i100 clamp: Display range: Measuring range 0.0 A DC – 100 A DC: 1.0 A DC – 100 A DC, 0.0 A AC – 100 A AC TRMS: 1.0 A AC – 100 A AC TRMS
Power measurement (with i100 clamp): Display range: Measuring range 0.0 V AC – 700 V AC, 0.0 V DC – 1000 V DC: 5.0 V AC – 700 V AC, 5.0 V DC – 1000 V DC, 0 A AC/DC – 100 A AC/DC: 1 A AC/DC- 100 A AC/DC, 0 kW/kVA – 100 kW/kVA: 5 kW/kVA – 100 kW/kVA

Who Needs the Fluke 1000?

The Fluke 1000 is designed for technicians and engineers working in the solar industry, including:

Installers and maintenance personnel who need to test and analyze solar panels

Engineers who require accurate measurements for solar panel design and optimization

Fluke 1000 Applications

Use case 1: Test and analyze solar panels for optimal performance
Use case 2: Measure voltage, current, and power for solar panel design and optimization
Use case 3: Check insulation resistance and protective conductor resistance for solar panel safety
Use case 4: Measure AC/DC voltage and current for solar panel testing and analysis
Use case 5: Use the i100 current clamp for accurate current measurements

Why Buy Fluke 1000 from MME?

The Fluke 1000 is a high-quality, multifunction PV tester and performance analyzer that is designed to meet the needs of technicians and engineers working in the solar industry. With its accurate measurements and IEC 61010-1 compliance, this tool is ideal for solar panel testing and analysis. By purchasing the Fluke 1000 from MME, you can be confident that you are getting a reliable and high-quality product that will meet your needs.

Fluke 1000 Specifications

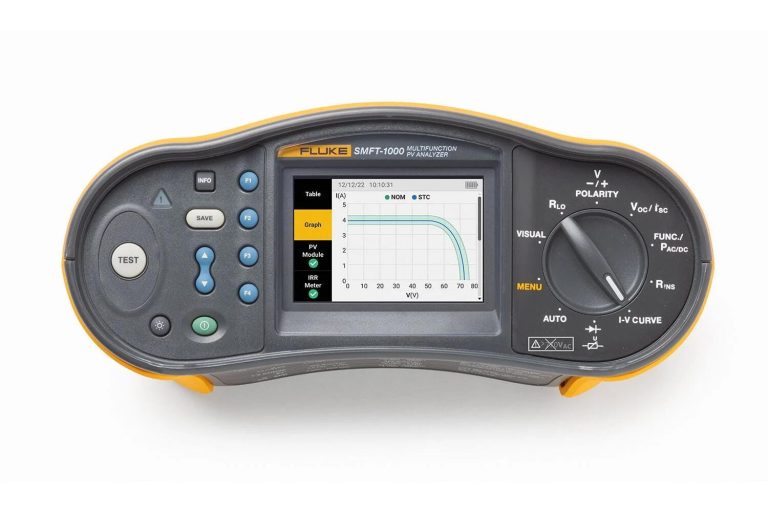

Fluke SMFT-1000 Multifunction PV Analyzer

Protective conductor resistance (RLo)
Display range	Measuring range	Resolution	Accuracy
0.00 Ω – 19.99 Ω	0.20 Ω – 19.99 Ω	0.01 Ω	± (2 % + 2 Digit)
20.0 Ω- 199.9 Ω	20.0 Ω – 199.9 Ω	0.1 Ω	± (2 % + 2 Digit)
200 Ω – 2000 Ω	200 Ω – 2000 Ω	1 Ω	± (5 % + 2 Digit)

Test current	≥ 200 mA (≤ 2Ω + Rcomp)
Test voltage	4 V DC … 10 V DC
Polarity reversing	Yes
Test lead zero (Rcomp)	Up to 3 Ω

PV module/PV string, open-circuit voltage (Voc)
Display range	Measuring range	Resolution	Accuracy
0.0 V – 99.9 V	5.0 V – 99.9 V	0.1 V	± (0.5 % + 2 Digit)
100 V – 1000 V	100 V – 1000 V	1 V	± (0.5 % + 2 Digit)

Polarity test	Yes

PV module/PV string, short-circuit current (Is/c)
Display range	Measuring range	Resolution	Accuracy
0.0 A – 20.0 A	0.2 A – 20.0 A	0.1 A	± (1 % + 2 Digit)

Insulation resistance (RINS)
Display range	Measuring range	Resolution	Accuracy
0.00 MΩ – 99.99 MΩ	0.20 MΩ – 99.99 MΩ	0.01 MΩ	± (5 % + 5 Digit)
100.0 MΩ – 199.9 MΩ	100.0 MΩ – 199.9 MΩ	0.1 MΩ	± (10 % + 5 Digit)
200 MΩ – 999 MΩ	200 MΩ – 999 MΩ	1 MΩ	± (20 % + 5 Digit)

	Measuring range	Resolution	Accuracy
Test voltage @ no load	50 V / 100 V / 250 V up to 199.9 MΩ 500 V / 1000 V up to 999 MΩ	1 V	0 % to + 20 %
Test voltage @ ≥ 1 mA	250 V @ 250 kΩ 500 V @ 500 kΩ 1000 V @ 1 MΩ	1 V	0 % to + 10 %
Testing current	Min. 1 mA (@ 250 kΩ / 500 kΩ / 1 MΩ) Max. 1.5 mA (short circuit)

Blocking diode checking (Vbd)
Display range	Measuring range	Resolution	Accuracy
0.00 V DC – 6.00 V DC	0.50 V DC – 6.00 V DC	0.01 V DC	± (5 % + 10 Digit)

Surge protection device (SPD)
Display range	Measuring range	Resolution	Accuracy
0 V DC – 1000 V DC	50 V DC – 1000 V DC	1 V DC	± (10 % + 5 Digit)


AC/DC voltage measurement via 4 mm test sockets
Display range	Measuring range	Resolution	Accuracy
0.0 V AC – 99.9 V AC	5.0 V AC – 99.9 V AC	0.1 V	± (2.5 % + 2 Digit)
100 V AC – 700 V AC	100 V AC – 700 V AC	1 V	± (2.5 % + 2 Digit)
0.0 V DC – 99.9 V DC	5.0 V DC – 99.9 V DC	0.1 V	± (2.5 % + 2 Digit)
100 V DC – 1000 V DC	100 V DC – 1000 V DC	1 V	± (2.5 % + 2 Digit)

Detection AC/DC	Yes (Automatic)
+ / – polarity check	Yes

AC/DC current with i100 clamp
Display range	Measuring range	Resolution	Accuracy (DC, AC 50 Hz/60 Hz)
0.0 A DC – 100 A DC	1.0 A DC – 100 A DC	0.1 A	± (5 % + 2 Digit) *
0.0 A AC – 100 A AC TRMS	1.0 A AC – 100 A AC TRMS	0.1 A	± (5 % + 2 Digit) *
* i100 clamp tolerances not inclusive

i100 Clamp Tolerances
Display range	Measuring range	Output signal	Accuracy (DC, AC 50 Hz/60 Hz)
N/A	1 A – 100 A DC or AC < 1 kHz	10 mV/A AC/DC	± (1.5 % + 0.1 A)


AC/DC Power measurement (with i100 clamp)
Display range	Measuring range	Resolution	Accuracy (DC, AC 50 Hz/60 Hz)
0.0 V AC – 700 V AC 0.0 V DC – 1000 V DC	5.0 V AC – 700 V AC 5.0 V DC – 1000 V DC	0.1 V	± (2.5 % + 2 Digit)
0 A AC/DC – 100 A AC/DC	1 A AC/DC- 100 A AC/DC	0.1 A	± (6.5 % + 3 Digit)
0 kW/kVA – 100 kW/kVA	5 kW/kVA – 100 kW/kVA	1 kW/kVA	± (10 % + 4 Digit)



General Specifications
SMFT-1000 size	10 cm x 25.0 cm x 12.5 cm (3.8 in x 9.8 in x 4.9 in)
SMFT-1000 weight	1.4 kg (3.09 lb)
Battery	6 AA IEC LR6
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-30 °C to 60 °C (-22 °F to 140 °F) batteries removed
Operating altitude	up to 2000 m
Storage altitude	up to 2000 m
Safety
SMFT-1000 PV Analyzer	IEC 61010-1 Pollution Degree 2 IEC 61010-2-034 CAT III 1000 V dc, CAT III 700 V AC
i100 Current Clamp	IEC 61010-2-032, Type D (for insulated conductors), 1000 V
Accessories	IEC 61010-031
TL1000-MC4	CAT III 1500 V, 20 A
TP1000 Remote Probe (with cap)	CAT IV 600 V, CAT III 1000 V, 10 A
TP1000 Remote Probe (without cap)	CAT II 1000 V, 10 A
TL1000 Test Leads	CAT III 1000 V, 10 A
TL1000/30M Test Leads	CAT III 1000 V, CAT IV 600 V, 5 A (on reel) 10 A (fully extended)
TP74 Test Probes (with cap)	CAT III 1000 V, 10 A
TP74 Test Probes (without cap)	CAT II 1000 V, 10 A
AC285 Alligator Clip	CAT III 1000 V, 10 A
Performance	IEC 61557-1, IEC 61557-2, IEC 61557-4, IEC 61557-10
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Wireless Radio Module
Frequency Range	2.402 GHz to 2.480 GHz
Output Power	8 dBm
