Description

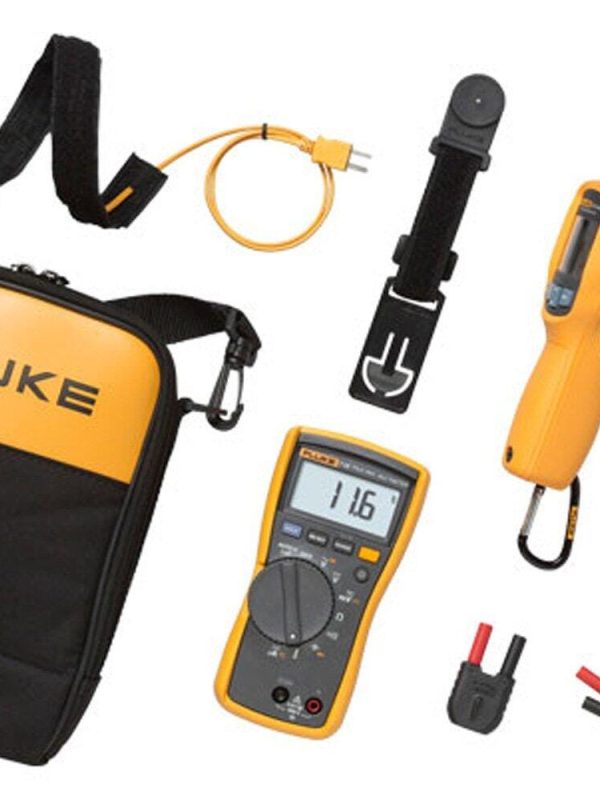

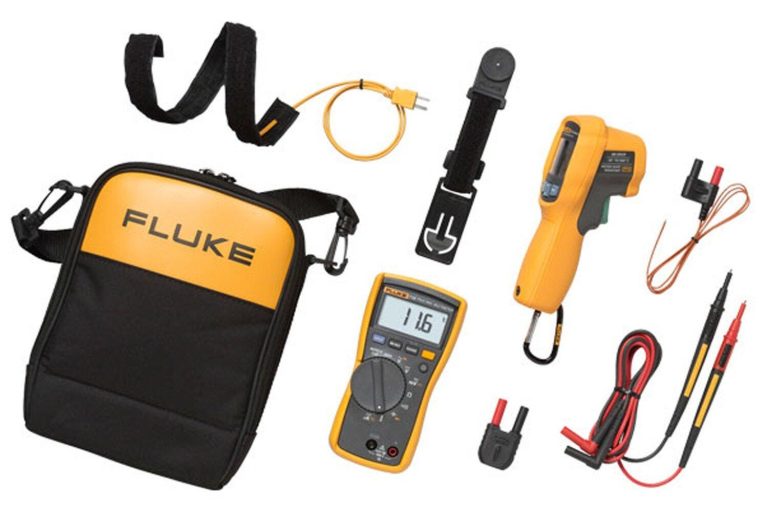

The Fluke 116/62 MAX+ Technician’s Combo Kit is a versatile and reliable multimeter designed for technicians and engineers. With its 600V CAT III, Pollution Degree 2 rating, it can handle a wide range of electrical measurements with confidence.

Featuring a 6,000 counts display that updates 4 times per second, this multimeter provides fast and accurate readings. The 33 segments bar graph updates 32 times per second, allowing for precise analysis of electrical signals.

Fluke 116/62 Key Features

The Fluke 116/62 MAX+ Technician’s Combo Kit boasts a range of advanced features, including:

Maximum voltage between any terminal and earth ground: 600V
Surge protection: 6kV peak per IEC 61010-1
Display: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating Temperature: -10°C to +50°C
Storage Temperature: -40°C to +60°C
Battery type: 9V Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life: 400 hours typical, without backlight

Who Needs the Fluke 116/62?

The Fluke 116/62 MAX+ Technician’s Combo Kit is designed for technicians and engineers who require a reliable and accurate multimeter for a wide range of electrical measurements. Whether you work in industrial, commercial, or residential settings, this multimeter is the perfect tool for the job.

Fluke 116/62 Applications

Electrical troubleshooting: Identify and diagnose electrical issues with ease
Electrical testing: Measure electrical parameters with confidence
Electrical maintenance: Perform routine maintenance tasks with precision
Electrical installation: Ensure safe and reliable electrical installations
Electrical inspection: Conduct thorough electrical inspections with ease
Electrical repair: Repair electrical systems with confidence

Why Buy Fluke 116/62 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 116/62 MAX+ Technician’s Combo Kit at an unbeatable price. With our 3-year warranty and exceptional customer service, you can trust that you’re getting the best value for your money. Buy from us today and experience the difference for yourself!

Fluke 116/62 Specifications

Specifications
Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display	6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating Temperature	-10°C to +50°C
Storage Temperature	-40°C to +60°C
Battery type	9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/Resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/Resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/Resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms	Range/Resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/Resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	1.5% + 2
Diode Test	Range/Resolution	2.000 V / 0.001 V
Diode Test	Accuracy	0.9% + 2
Capacitance	Range/Resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/Resolution	> 1000 μF
	Accuracy	5% + 20%
LoZ capacitance	Range	1 nF to 500 μF
LoZ capacitance	Accuracy	10% + 2 typical
Temperature² (Type-K thermocouple)	Range/Resolution	-40°C to 400°C / 0.1°C
	Accuracy²	1% + 10
	Range/Resolution	-40°F to 752°F / 0.2°F
	Accuracy²	1% + 18
AC μamps true-rms (45 Hz to 500 Hz)	Range/Resolution	600.0 μA / 0.1 μA
AC μamps true-rms (45 Hz to 500 Hz)	Accuracy	1.0% + 2
DC μamps	Range/Resolution	600.0 μA / 0.1 μA
DC μamps	Accuracy	1.0% + 2
Hz (V or A input)²	Range/Resolution	99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. • Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. • Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
