Description

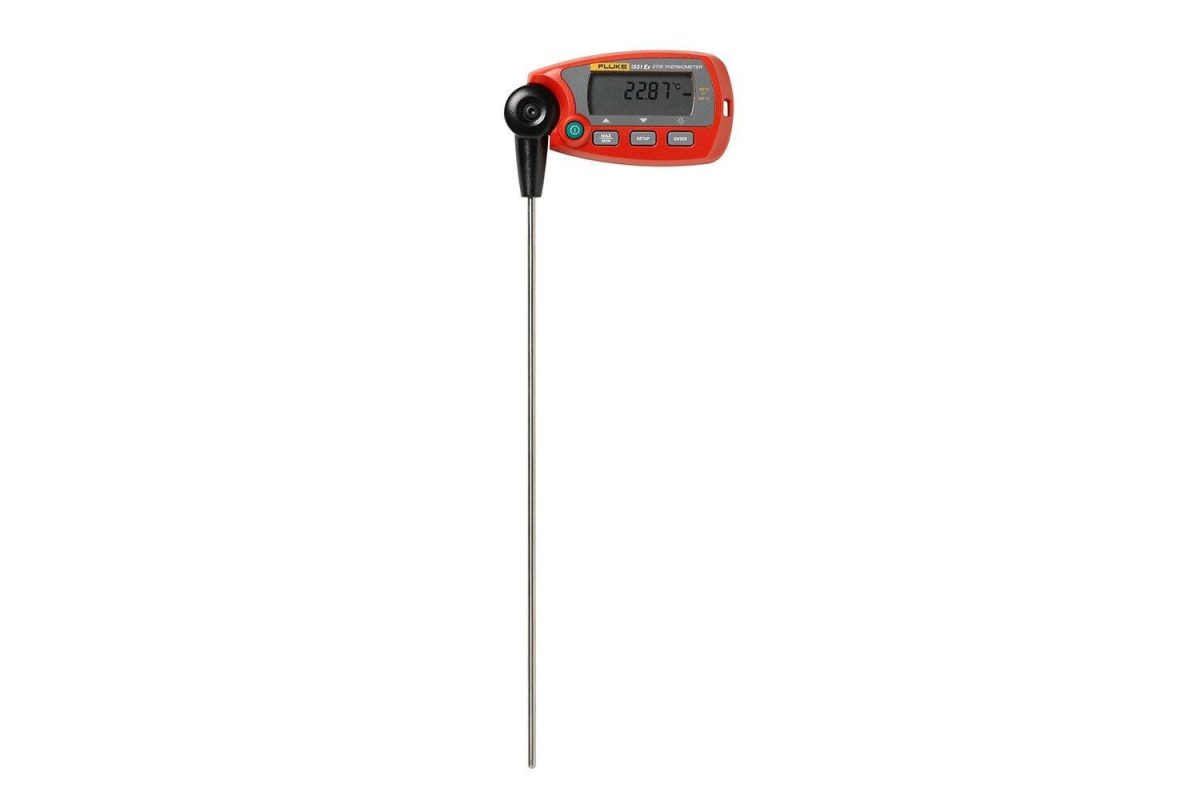

The Fluke 1552a Stik Thermometer & Temperature Calibrator is a versatile and accurate temperature measurement solution for various applications. With its wide temperature range of -80°C to 300°C (-112°F to 572°F), this thermometer is ideal for use in laboratories, manufacturing, and quality control.

Its high accuracy of ±0.05°C (±0.09°F) and selectable temperature resolution make it suitable for precise temperature measurements. The thermometer also features a sample rate of 0.5 seconds, 1 second, or 2 seconds, allowing for fast and reliable temperature readings.

Fluke 1552a Key Features

The Fluke 1552a Stik Thermometer & Temperature Calibrator boasts several key features that make it an essential tool for temperature measurement. Some of its notable features include:

Temperature range: -80°C to 300°C (-112°F to 572°F)
Accuracy: ±0.05°C (±0.09°F)
Temperature resolution: Selectable: 0.1, 0.01, 0.001 (default 0.01)
Sample rate: Selectable: 0.5 seconds, 1 second, 2 seconds (default 1 second)
Probe temperature coefficient: 0.00385 Ω/Ω/°C nominal
Nominal probe resistance at 0 °C: 100 Ω
Probe hysteresis: ±0.01°C

Who Needs the Fluke 1552a?

The Fluke 1552a Stik Thermometer & Temperature Calibrator is designed for use by technicians, engineers, and quality control professionals who require accurate and reliable temperature measurements. Its versatility and accuracy make it an essential tool for various applications, including laboratory testing, manufacturing, and quality control.

Fluke 1552a Applications

Temperature calibration: The Fluke 1552a is ideal for temperature calibration in laboratories and manufacturing environments.
Process control: The thermometer can be used to monitor and control temperatures in various industrial processes.
Quality control: The Fluke 1552a is suitable for use in quality control applications, such as testing and verifying the accuracy of temperature-sensitive equipment.
Research and development: The thermometer can be used in research and development applications, such as testing and characterizing temperature-sensitive materials.
Education and training: The Fluke 1552a is an excellent tool for teaching temperature measurement and calibration techniques.

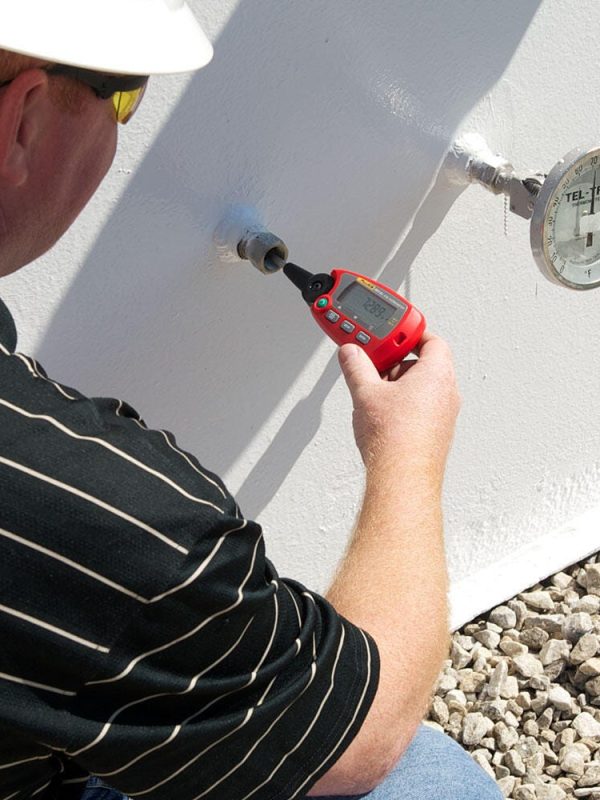

Field service: The thermometer can be used by field service technicians to monitor and diagnose temperature-related issues in the field.

Why Buy Fluke 1552a from MME?

At MME, we offer the Fluke 1552a Stik Thermometer & Temperature Calibrator at competitive prices, along with excellent customer service and support. Our team of experts is available to assist you with any questions or concerns you may have about the product.

Fluke 1552a Specifications

Specifications
Temperature range	-80°C to 300°C (-112°F to 572°F)
Accuracy (1 year)	±0.05°C (±0.09°F)
Temperature resolution	Selectable: 0.1, 0.01, 0.001 (default 0.01)
Sample rate	Selectable: 0.5 seconds, 1 second, 2 seconds (default 1 second)
Readout temperature coefficient	Add ±10 ppm/°C of full scale temperature from −10 °C to 18 °C and 28 °C to 50 °C
Probe temperature coefficient	0.00385 Ω/Ω/°C nominal
Nominal probe resistance at 0 °C	100 Ω
Probe hysteresis	±0.01°C
Response time	Approximately 20 seconds
Operating temperature range of readout	-10°C to 50°C (14°F to 122°F)
Humidity range	0% to 95% RH, non-condensing
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Display units	°C, °F
Sensor type	100 Ω wire-wound PRT
Sensor length	≤ 30 mm
Sensor position (from sheath tip)	3 mm (0.1 in)
Minimum immersion depth	Wet medium (liquid bath, thermowell with thermal compound) 70 mm (2.8 in) Dry medium (dry-well, thermowell without thermal compound) 120 mm (4.8 in)
Maximum immersion depth	75 mm (3 in) less than the total length. Make sure the last 75 mm of the probe, nearest to the internal electronics of the device, are not put into the heat source.
Probe sheath material	Stainless steel
Optional data logging¹	Up to 10,000 time-stamped readings stored to internal memory
Logging intervals¹	2 seconds, 5 seconds, 10 seconds, 30 seconds, or 60 seconds
Damping	Moving average of the most recent 2 to 10 readings (ON/OFF, 2, 5, 10)
Communications	RS-232 stereo jack (access calibration parameters only)
AC power	None
DC power	3-AAA alkaline batteries See Users Manual for approved batteries
Battery life	Approximately 300 hours (12.5 days) of continuous operation with the backlight off.
Battery save (auto-off) range	Selectable from 1 to 30 minutes or can be disabled
Safety	IEC 60079-0, IEC 60079-11: Ex ib IIB T4 Gb; IEC 61010-1: Pollution Degree 2
Electromagnetic compatibility	International: IEC 61326-1: Portable Equipment; IEC 61326-2-2; CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Size (readout only)	125 mm x 62 mm x 35 mm (5 in x 2.5 in x 1.4 in)
Probe Size	6.35 mm x 305 mm (1/4 in x 12 in)
Weight	200 g (6.9 oz)
Calibration (included)	accredited, NIST-traceable
Characterization	ITS-90
1. See ordering information for optional data logging configurations
