Testo 176 T3 Temperature data logger

Testo 176 T3 Temperature data logger

Order-Nr.  0572 1763

The robust metal housing of the testo 176 T3 temperature data logger makes it suitable for use in the industrial and trade sector, e.g. for process monitoring. You can simultaneously measure the temperature at up to four points–e.g., measure the flow and return temperatures on radiators.

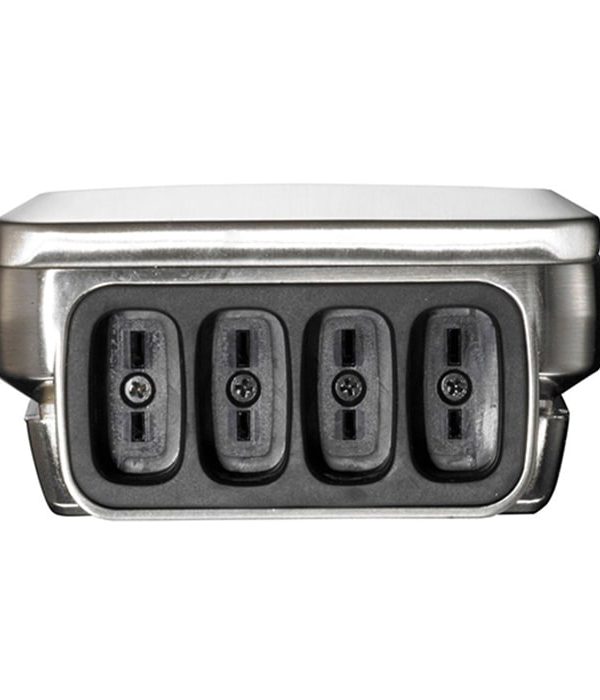

Up to four thermocouple probes can be connected to the data logger (temperature probes TC Type K, Type T, or Type J).
The advantage of thermocouple probes is that they react very quickly and cover an extensive measuring range. For example, you can record particularly low temperatures (as low as -195 °C) using a temperature probe TC Type K – depending on the model selected – or you can even carry out high-temperature measurements (up to +1,000 °C). This enables you to both take measurements in super freezers and also monitor high-temperature industrial processes.

The memory of the temperature data logger records up to 2 million readings and can therefore be used for long-term measurements, eliminating the need for the data logger to be read out overly frequently. The data logger has a battery life of up to 8 years, making it a practical instrument for long-term measurements.

Testo 176 T3 Temperature data logger specification :

• Weight: 430 g
• Dimensions : 103 x 63 x 33 mm
• Operating temperature: -20 to +70 °C
• Protection class: IP65
• Connectable probes: 4 x thermocouple (type T, K, and J)
• Standards: EU-guideline 2014/30/EU; 2011/65/EU
• Battery type : 1 x Lithium (TL-5903)
• Battery life: 8 years at 15 min. meas. rate, +25 °C
• Memory : 2,000,000 measuring values
• Storage temperature: -40 to +85 °C
• Measuring range Temperature – TC Type K: -200 to +1000 °C
• Measuring range Temperature – TC Type T: -200 to +400 °C
• Measuring range Temperature – TC Type J: -100 to +750 °C
• Resolution: 0.1 °C
