Description

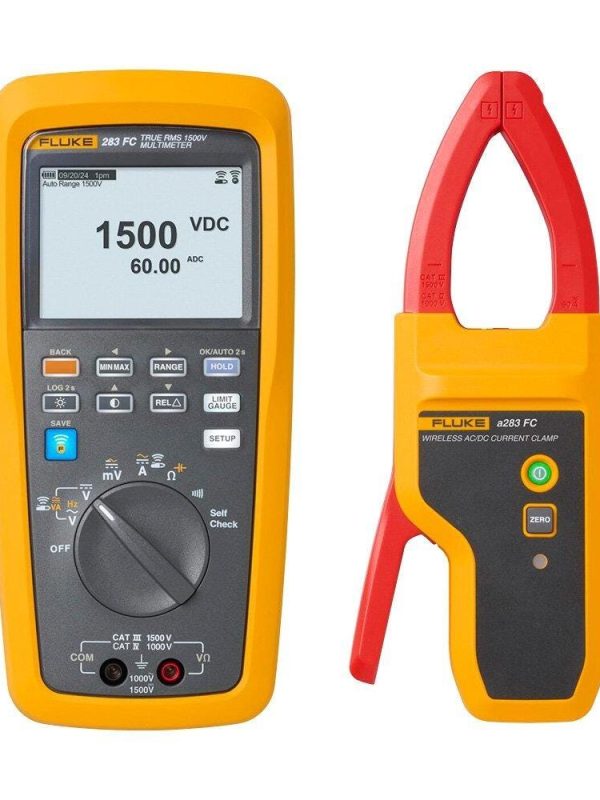

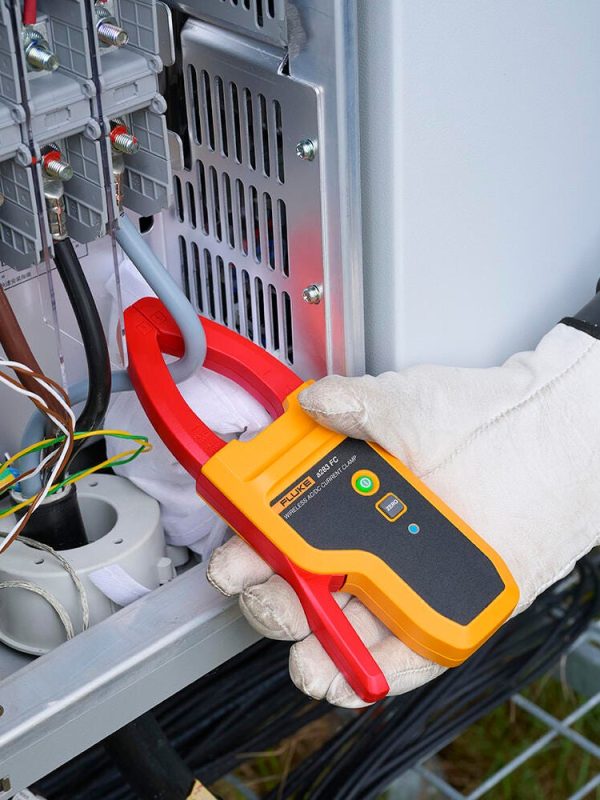

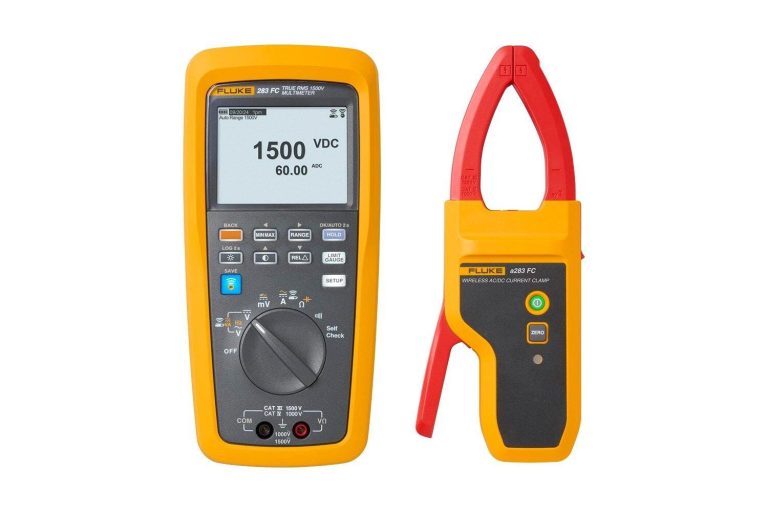

The Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp is a versatile tool for electrical professionals. With its wireless current clamp, you can easily measure current without having to physically touch the wire.

Whether you’re working on solar panel installations or electrical systems, this multimeter provides accurate measurements for AC and DC voltage, current, and resistance. It also features continuity and capacitance measurements, making it a valuable addition to your toolkit.

Fluke 283 Key Features

The Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp offers a range of key features, including:

AC and DC voltage measurement up to 1500 V and 600.0 V, respectively
AC and DC current measurement up to 60.00 A and 60.00 A, respectively
Resistance measurement up to 6.000 MΩ
Continuity measurement up to 600 Ω
Capacitance measurement up to 9999 μF
Frequency measurement up to 99.99 kHz
AC VA measurement up to 60.00 kVA
DC VA measurement up to 90.00 kVA

Who Needs the Fluke 283?

The Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp is designed for electrical professionals who need accurate and reliable measurements. Whether you’re working on solar panel installations, electrical systems, or other applications, this multimeter provides the features and functionality you need to get the job done.

Fluke 283 Applications

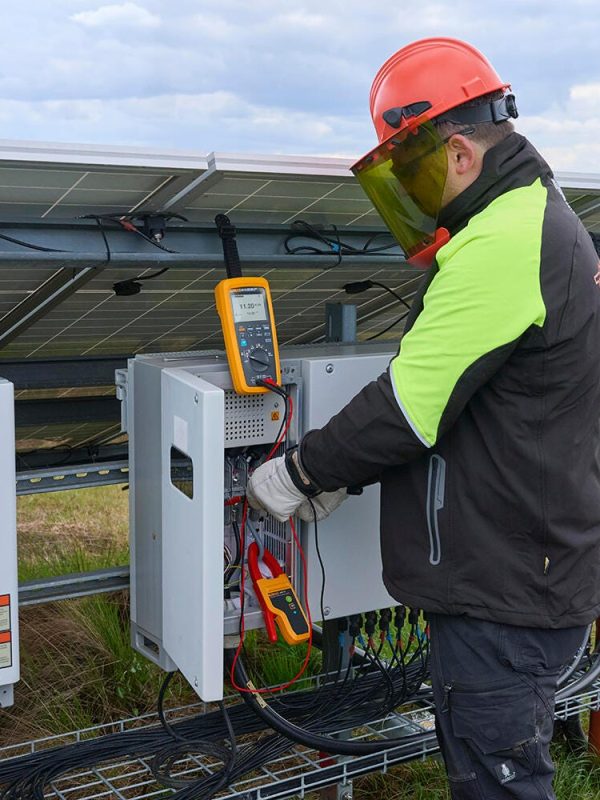

Measure solar panel installations with ease using the wireless current clamp
Test electrical systems for voltage, current, and resistance
Diagnose electrical issues with the continuity and capacitance measurements
Measure frequency and AC VA in a variety of applications
Use the min-max avg function for DC functions
Measure DC VA in a variety of applications
Test electrical panels and equipment

Why Buy Fluke 283 from MME?

At MME, we offer the Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp at a competitive price. Our team of experts is always available to answer any questions you may have and provide support with your purchase.

Fluke 283 Specifications

Function	Range	Resolution	Accuracy
AC volts^[1]	6.000 V	0.001 V	1.0 % + 3 (45 Hz to 500 Hz)
	60.00 V	0.01 V	1.0 % + 3 (45 Hz to 500 Hz)
	600.0 V	0.1 V	2.0 % + 3 (500 Hz to 1 kHz)
	1000 V	1 V	2.0 % + 3 (500 Hz to 1 kHz)
DC volts	6.000 V	0.001 V	0.09 % + 3
	60.00 V	0.01 V
	600.0 V	0.1 V
	1500 V	1 V	0.15 % + 2
AC mV^[1]	600.0 mV	0.1 mV	1.0% + 3 (45 Hz ~ 500 Hz) 2.0% + 3 (500 Hz ~ 1000 Hz)
DC mV	600.0 mV	0.1 mV	0.09 % + 2
Continuity	600 Ω	1 Ω
Resistance	600.0 Ω	0.1 Ω	0.5 % + 4
	6.000 kΩ	0.001 kΩ
	60.00 kΩ	0.01 kΩ
	600.0 kΩ	0.1 kΩ
	6.000 MΩ	0.001 MΩ
	50.00 MΩ	0.01 MΩ	1.5 % + 4
Capacitance	1000 nF	1 nF	1.2 % + 2
	10.00 μF	0.01 μF
	100.0 μF	0.1 μF
	9999 μF	1 μF	10 % typical
Frequency	99.99 Hz	0.01 Hz	0.1 % + 2
	999.9 Hz	0.1 Hz
	9.999 kHz	0.001 kHz
	99.99 kHz	0.01 kHz
AC VA (45~500Hz)^[1]	360.0 VA	0.1 VA	2 % + 1.0 VA
	3.600 kVA	0.001 kVA	2 % + 0.01 kVA
	36.00 kVA	0.01 kVA	2 % + 0.1 kVA
	60.00 kVA	0.01 kVA	2 % + 0.15 kVA
DC VA^[1]	360.0 VA	0.1 VA	2 % + 1.0 VA
	3.600 kVA	0.001 kVA	2 % + 0.01 kVA
	36.00 kVA	0.01 kVA	2 % + 0.1 kVA
	90.00 kVA	0.01 kVA	2 % + 0.25 kVA
Min-max avg	For DC functions, accuracy is the specified accuracy of the measurement function ± 12 counts for changes longer than 350 ms in duration.
Min-max avg	For AC functions, accuracy is the specified accuracy of the measurement function ± 40 counts for changes longer than 900 ms in duration.
