Description

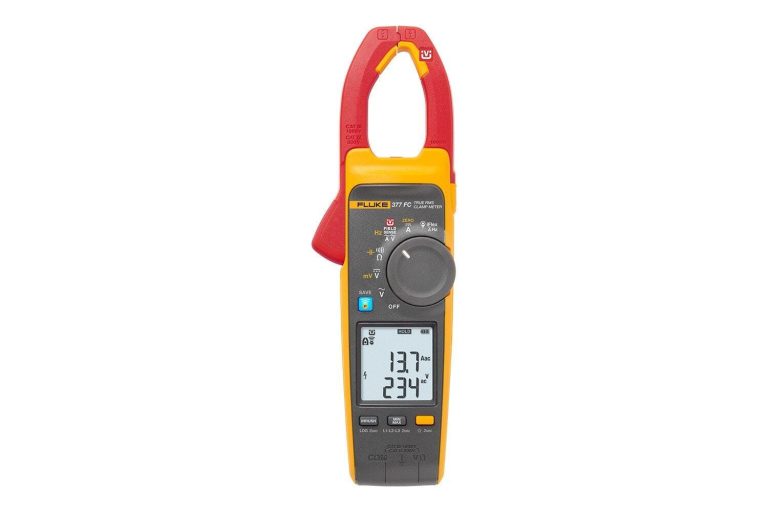

At Mohammad Mahdi Electronics, we offer the Fluke 377 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex, a versatile and accurate tool for electrical measurements. This clamp meter is designed to provide precise readings in a variety of applications, from residential to industrial settings.

The Fluke 377 FC features a non-contact voltage measurement capability, allowing users to measure voltage without having to touch the conductor. The iFlex flexible current probe provides precise measurements of AC and DC currents, making it ideal for applications where space is limited.

Fluke 377 Key Features

The Fluke 377 FC clamp meter offers a range of key features, including:

True-rms AC/DC measurement for accurate readings in both AC and DC applications
Non-contact voltage measurement for safe and precise voltage readings

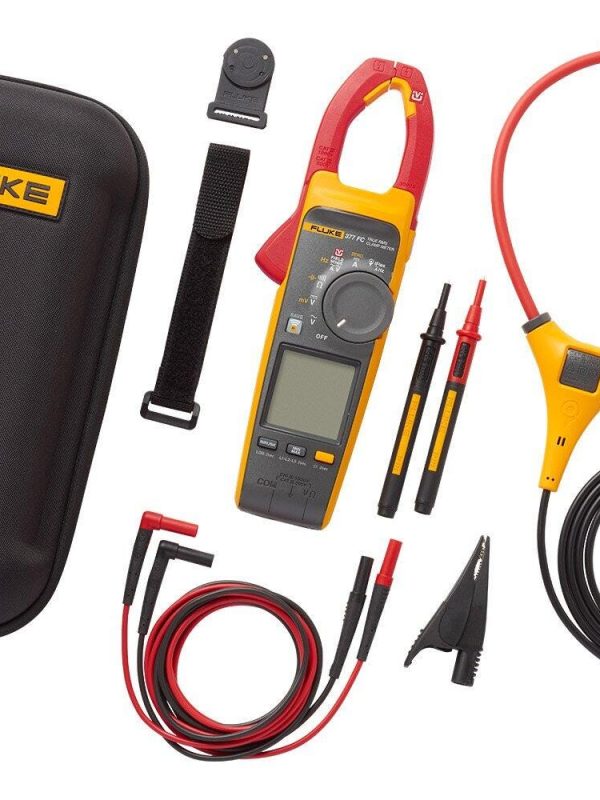

iFlex flexible current probe for precise measurements of AC and DC currents
High accuracy and resolution for reliable measurements
Compact and lightweight design for easy handling and storage
Wide operating temperature range for use in a variety of environments
IEC 60529: IP30 protection for durability and reliability

Who Needs the Fluke 377?

The Fluke 377 FC clamp meter is designed for use by electrical technicians, engineers, and buyers who require accurate and reliable measurements in a variety of applications. Whether you’re working on residential or industrial projects, this clamp meter is a valuable tool for anyone who needs to measure electrical parameters with precision.

Fluke 377 Applications

Residential electrical work – measure voltage, current, and resistance in residential electrical systems
Industrial electrical work – measure voltage, current, and resistance in industrial electrical systems
Electrical maintenance – measure voltage, current, and resistance in electrical systems for maintenance and troubleshooting
Electrical testing – measure voltage, current, and resistance in electrical systems for testing and certification
Research and development – measure voltage, current, and resistance in electrical systems for research and development purposes

Why Buy Fluke 377 from mme-ae?

At mme-ae, we offer the Fluke 377 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex at a competitive price, along with excellent customer service and support. Whether you’re a professional electrician or a DIY enthusiast, this clamp meter is a valuable tool for anyone who needs to measure electrical parameters with precision.

Fluke 377 Specifications

Electrical
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % ±5 digits (45 Hz to 66 Hz)
Crest Factor (50/60 Hz)	3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	2500 A
Resolution	1 A (≤2500 A) 0.1 A (≤999.9 A)
Accuracy	3 % ±5 digits (5 Hz to 500 Hz)
Crest Factor (50/60Hz)	3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2 % for C.F. >2
Position Sensitivity
	Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
	A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	± 0.5 %
	B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	± 1.0 %
	C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	± 2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % ±5 digits¹
^[1]When using the ZERO function to compensate for offsets
AC Voltage: Field Sense
Range	1000 V
Resolution	1 V (≤1000V)
Accuracy	≤4/0 AWG	3 % ±5 digits (45 Hz to 66 Hz)
	≥4/0 AWG	5 % ±5 digits (45 Hz to 66 Hz)
Position wire as close as possible to jaw opening (see illustration).
AC Voltage: Test Leads
Range	600.0 V 1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1 % ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V 1000 V
Resolution	0.1 V (≤600.0 V) 1 V (≤1000 V)
Accuracy	1 % ±10 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % ±5 digits
Amps Frequency: Jaw
Range	45 Hz to 66 Hz
Resolution	0.1 Hz
Accuracy	0.5 % ±5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A 10 Hz to 100 Hz, ≥ 5 A 100 Hz to 500 Hz, ≥ 10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % ±5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A 20 Hz to 100 Hz, ≥20 A 100 Hz to 500 Hz,≥25 A
Resistance
Range	60.00 kΩ 6000 Ω 600.0 Ω
Resolution	0.1 Ω (≤600.0 Ω) 1 Ω (≤6000 Ω) 10 Ω (≤60.00 kΩ)
Accuracy	1 % ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤100.0 μF) 1 μF (≤1000 μF)
Accuracy	1 % ±4 digits
Mechanical
Size (L x W x H)	274 mm x 86 mm x 47 mm
Weight (with Batteries)	463 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length (head to electronics connector)	1.8 m
Rogowski Coil Length	450 mm
Environmental
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity (without condensation)	Non condensing (<10 °C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C)
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C
Ingress Protection	IEC 60529: IP30 (jaw closed)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Electromagnetic Compatibility (EMC)
	International	IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2, CISPR 11: Group 1, Class B
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
	Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
	Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1: Pollution degree 2
Measurement	IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
Current Clamp for Leakage Current Measurements	IEC 61557-13: Class 2, ≤30 A/m
Wireless Radio
Radio Frequency Certification	FCC ID: T68-FBLE IC:6627A-FBLE
Frequency Range	2405 MHz to 2480 MHz
Output Power	<100 mW
Radio Frequency Data	Radio Frequency Data For Class A DevicesPDF SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU. The full text of the EU declaration is available at the following internet address: https://media.fluke.com/ef664f31-68ef-40d9-9ca7-b10800bf192b_original%20file.pdfPDF.
