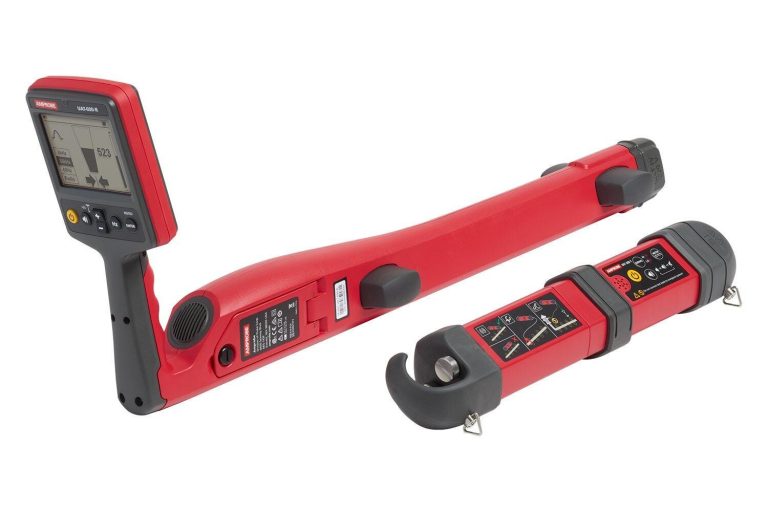

Amprobe UAT-505 Underground Utilities Locator Kit

The Amprobe UAT-505 Underground Utilities Locator Kit is a reliable and efficient solution for locating underground utilities. With its advanced features and user-friendly design, this kit is perfect for technicians and engineers who need to accurately detect and trace underground cables and pipes.

Whether you’re working on a construction site or maintaining existing infrastructure, the Amprobe UAT-505 is a valuable tool that can help you save time and increase productivity.

Amprobe 505 Key Features

The Amprobe UAT-505 Underground Utilities Locator Kit features a range of advanced technologies, including:

• 33 kHz transmitting frequency for accurate detection and tracing.
• Max. 1 watt transmitting mode power output for reliable signal transmission.
• Two LEDs indicating LO and HI signal for easy visual indication.
• Continuous Signal Mode and Pulse Signal Mode for flexible audio indication.
• Compatible with UAT-600-R Receiver for seamless integration.
• IP54 rating for durability and protection against the elements.

Who Needs the Amprobe 505?

The Amprobe UAT-505 Underground Utilities Locator Kit is designed for technicians and engineers who need to accurately detect and trace underground cables and pipes. Whether you’re working on a construction site or maintaining existing infrastructure, this kit is a valuable tool that can help you save time and increase productivity.

With its advanced features and user-friendly design, the Amprobe UAT-505 is perfect for a range of applications, including:

Amprobe 505 Applications

• Locating underground utilities for construction and maintenance projects.
• Tracing cables and pipes for accurate detection and identification.
• Inspecting electrical systems for safety and efficiency.
• Maintaining existing infrastructure for optimal performance.
• Performing site surveys for accurate planning and execution.
• Locating buried assets for efficient management and maintenance.

Why Buy Amprobe 505 from MME?

At MME, we offer the Amprobe UAT-505 Underground Utilities Locator Kit at competitive prices, with fast shipping and excellent customer service. Our team of experts is always available to answer your questions and provide support, ensuring that you get the most out of your purchase.

Whether you’re a technician, engineer, or buyer, we invite you to experience the difference that MME can make. Contact us today to learn more about the Amprobe UAT-505 and how it can benefit your business.

Amprobe 505 Specifications

UAT-500-T Transmitter
Operating voltage	De-energized circuit only for Direct Connection Mode
Transmitting frequency	33 kHz
Tracing modes	De-energized: – Induction Mode – Direct Connection Mode – Clamp Mode
Transmitting mode power output	Max. 1 watt
Output voltage	Max. 35 V rms
Output current	Max. 100 mA rms
Visual signal indication	Two LEDs indicating LO and HI signal
Audio signal indication	Continuous Signal Mode: Continuous audio tone Pulse Signal Mode: Fast pulsed audio tone
Compatible receiver	UAT-600-R Receiver
Compatible accessories	SC-600 Signal Clamp TL-UAT-500 Test lead set
Operating temperature and humidity	‘-4 °F to 122 °F (-20 °C to 50 °C), ≤ 80% RH
Storage temperature and humidity	‘-40 °F to 140 °F (-40 °C to 60 °C), ≤ 80% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
IP-rating	IP54
Power supply	Four (4) 1.5 V D cell alkaline batteries
Battery life	Approx. 12 hours at 70 °F (21 °C) (Typical)
Low battery indication	Both LO and HI LEDs blink every 1.5 seconds and audio sound pulses every 1.5 seconds
Agency approval
Safety compliance	IEC 61010-1, CSA/UL 61010-1, IEC 61010-031, CSA/UL 61010-031 (test leads)
Electromagnetic Compatibility	IEC 61326-1 Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1] [1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Size (H x W x L)	Approx. 18.1 x 3.5 x 2.6 in (460 x 90 x 65 mm)
Weight	Approx. 3.9 lb (1.77 kg) (batteries installed)

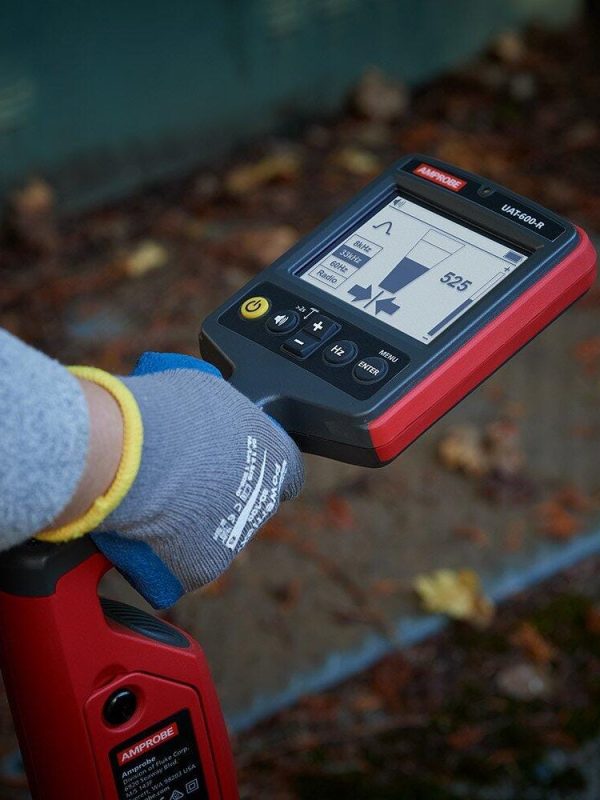

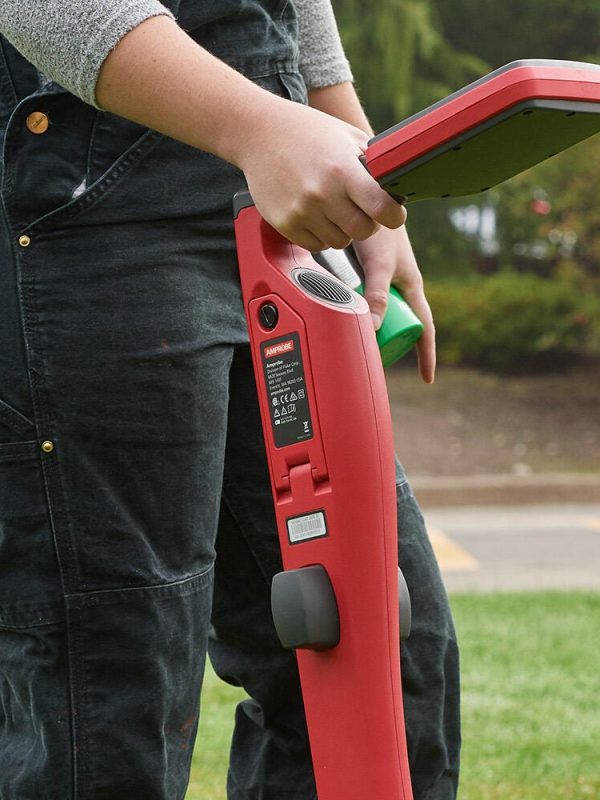

UAT-600-R Receiver
Operating voltage	0 to 600 V
Tracing modes	Active tracing: 33 kHz (32,768 Hz) and 8 kHz (8,192 Hz) Passive tracing: 50 / 60 Hz and Radio
Locating modes	Peak and Null
Sensitivity adjustment (gain control)	Yes
Depth measurement	Up to 6 m (20 ft)
Depth measurement accuracy	4 in (0.1 m) to 10 ft (3m): ± 3 % 10 ft (3 m) to 20 ft (6 m): ± 5 %
Sensitivity at 1 m (typical)	Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA
Display backlight	Automatic
Audio indication	Increasing closer to the signal
Compatible transmitter	UAT-600-T Transmitter
Display	4.3 in (109 mm), 320 x 240 BW outdoor LC-Display with auto backlight
Update rate	Instantaneous
Operating temperature and humidity	‘-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity	‘-40 °F to 140 °F (-40 °C to 60 °C), ≤ 90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
IP-rating	IP54
Drop proof	3.28 ft (1 m)
Power supply	Six (6) 1.5 V AA alkaline batteries
Auto power off	15 minutes idle Will auto turn off after 15 min of no button pressing
Battery life	Approx. 35 hours at 70 °F (21 °C) (Typical)
Low battery indication
Measurement Category	CAT IV 600 V
Agency approval
Safety compliance	IEC 61010-1, IEC 61010-2-033 CSA/UL 61010-1, CSA/UL 61010-2-033
Size (H x W x L)	Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm)
Weight	Approx. 4.2 lb (1.9 kg) (batteries installed)
TL-UAT-500 Test Leads
Operating voltage and current	50 V max, 1 A
Leads length	11.5 ft (3.5 m)
Compatible transmitter	UAT-500-T Transmitter
Operating temperature and humidity	‘-4 °F to 122 °F (-20 °C to 50 °C), ≤ 80% RH
Storage temperature and humidity	‘-40 °F to 140 °F (-40 °C to 60 °C), ≤ 80% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
Agency approval
Safety compliance	IEC 61010-031, CSA/UL 61010-031
Size (H x W x L)	Approx. 9 x 3.5 x 3.1 in (230 x 90 x 80 mm)
Weight	Approx. 1.1 lb (0.5 kg)
SC-600 Signal Clamp	Not included, optional accessory
Operating voltage & current	0 to 600 V, 100 A max.
Operating frequency	33 kHz (32,768 Hz) and 8 kHz (8,192 Hz)
Signal voltage output (nominal)	23 V rms at 8 kHz 30 V rms at 33 kHz
Operating temperature and humidity	‘-4 °F to 122 °F (-20 °C to 50 °C), ≤ 90 % RH
Storage temperature and humidity	‘-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude	< 6561 ft (< 2000 m)
Pollution degree	2
IP-rating	IP54
Drop proof	3.28 ft (1 m)
Measurement Category	CAT IV 600 V
Agency approval
Safety compliance	IEC 61010-1, IEC 61010-2-032 CSA/UL 61010-1, CSA/UL 61010-2-032
Electromagnetic Compatibility	IEC 61326-1 Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) [1] [1] This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.
Size (H x W x L)	Approx. 11.6 x 7.1 x 1.4 in (295 x 180 x 37 mm)
Weight	Approx. 1.9 lb (0.85 kg)
