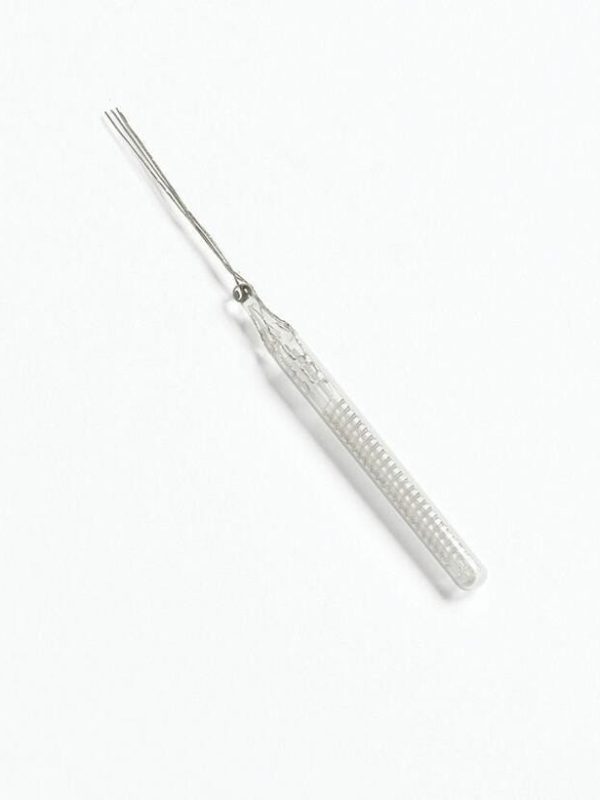

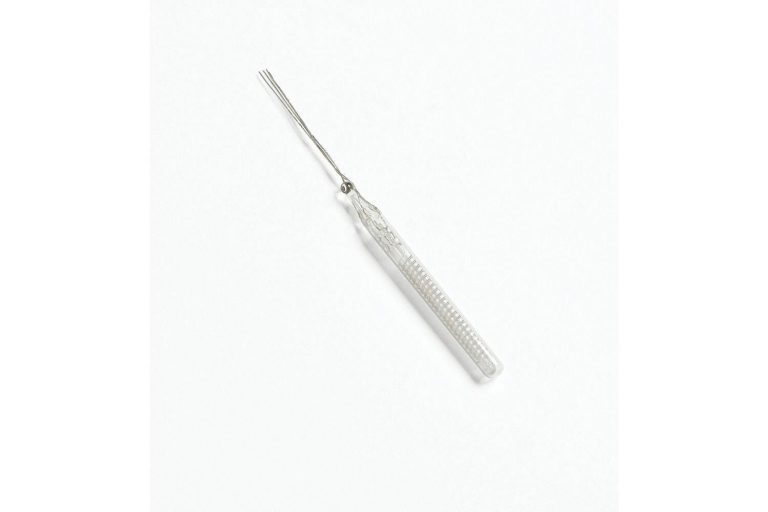

Fluke 5686-B Glass Capsule SPRT

The Fluke 5686-B Glass Capsule SPRT is a high-precision temperature measurement instrument designed for demanding applications. With a temperature range of -260 °C to 232 °C, this SPRT provides accurate measurements in extreme conditions.

Fluke 5686-B Key Features

The Fluke 5686-B boasts an impressive set of features, including a nominal R TPW of 25.5 Ω, a resistance ratio of W(302.9146 K) ≥ 1.11807 W(234.3156 K) ≤ 0.844235, and a drift rate of < 0.005 °C per year over the entire range.

• Temperature Range: -260 °C to 232 °C (13 K to 505 K)
• Nominal R TPW: 25.5 Ω
• Resistance Ratio: W(302.9146 K) ≥ 1.11807 W(234.3156 K) ≤ 0.844235
• Drift Rate: < 0.005 °C per year over the entire range
• Self-heating at TPW: < 0.002 °C under 1 mA current
• Reproducibility: ±0.001 °C or better
• R TPW Drift After Thermal Cycling: < 0.001 °C

Who Needs the Fluke 5686-B?

The Fluke 5686-B is designed for professionals who require precise temperature measurements in various industries, including scientific research, aerospace, and manufacturing.

Fluke 5686-B Applications

• Use in cryogenic applications where extreme temperatures are present.
• Measure temperature in high-temperature environments such as furnaces and kilns.
• Use in calibration labs for precise temperature measurements.
• Measure temperature in aerospace applications where high accuracy is required.
• Use in scientific research for precise temperature measurements.
• Measure temperature in industrial processes where high accuracy is required.

Why Buy Fluke 5686-B from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 5686-B with confidence, knowing that it is a high-quality instrument designed for demanding applications. Our team is dedicated to providing exceptional customer service and support.

Fluke 5686-B Specifications
